Everything you need to know about specifications and performance - Acura NSX 2022 - Type S 3.5 V6 (600 Hp) Hybrid SH-AWD DCT
Overview:
What is the engine capacity of a Acura NSX 2022?
The engine capacity of the Acura NSX 2022 is 3493.
Acura NSX 2022 How many horsepower?
The engine power of the Acura NSX 2022 is 520 Hp @ 6500-6850 rpm..
What is the Acura NSX 2022 engine?
Acura NSX 2022 engine is JNC1. (Click to see other cars using the same engine)
How powerful is the electrical system in the Acura NSX 2022?
The power of the electrical system in the Acura NSX 2022 is 600 Hp hp.
What is the recommended oil for a Acura NSX 2022 engine?
The recommended oil for a Acura NSX 2022 car engine is 0W-40.
What type of camshaft transmission system is used in a Acura NSX 2022 engine?
chain is used to transmit motion.
General:
Brand: Acura
Model: NSX
Generation: II
Modification (Engine): Type S 3.5 V6 (600 Hp) Hybrid SH-AWD DCT
Start of production: 2022
End of production: 2022
Powertrain Architecture: FHEV (Full Hybrid Electric Vehicle)
Body type:Coupe
Seats: 2
Doors: 2
Engine:
Power: 520 hp @ 6500-6850 rpm.
Power per litre: 148.9 hp/l
Torque: 443 nm @ 2300-6000 rpm.
Engine Model/Code:JNC1
Engine displacement: 3493
Number of cylinders: 6
Engine configuration: V-engine
Number of valves per cylinder: 4
Fuel injection system: Direct injection and Multi-port manifold injection
Engine aspiration: Twin-Turbo, Intercooler
Valvetrain: DOHC
Engine oil capacity: 7.9 l
Coolant: 15.5 l
Engine layout: Middle, Longitudinal
Cylinder Bore: 91 mm
Piston Stroke: 89.5 mm
Compression ratio: 10:1
recommended engine oil: 0W-40
euro standards: EURO 6
engine lifespan (km): ~250 000
timing drive: chain
Performance:
Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 11.2 l/100 km
Fuel consumption (economy) - extra urban: 10.7 l/100 km
Emission standard: ULEV 125
Maximum speed: 307 km/h
Acceleration 0 - 60 mph: 2.9 sec
Electric system:
Gross battery capacity: 1.3 kWh
Battery technology: Lithium-ion (Li-Ion)
System power: 600 hp
System torque: 667 nm
Electric motor power: 36 hp @ 400 rpm.
Electric motor Torque: 54 nm @ 0-2000 rpm.
Electric motor location: Front axle, Transverse
Electric motor type: Synchronous
Space:
Fuel tank capacity: 59 l
dimensions:
Length: 4531 mm
Width: 1939 mm
Height: 1214 mm
wheelbase: 2629 mm
Width with mirrors folded: 1939 mm
Width including mirrors: 2217 mm
Front track: 1664 mm
Rear (Back) track: 1638 mm
Ride height (ground clearance): 94 mm
Approach angle: 9.2°
Departure angle: 12.9°
Powertrain, Suspension and Brakes:
Drivetrain Architecture: The Internal combustion Engine (ICE) and electric motor drive the rear wheels of the car with the ability to work in full electric or mixed mode. Two electric motors drive the front wheels.
Drive wheel: All wheel drive (4x4)
Number of gears and type of gearbox: 9 gears, automatic transmission DCT
Front brakes: Ventilated discs, 368.3 mm
Rear brakes: Ventilated discs, 360.68 mm
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: Front wheel tires: 245/35 R19
Wheel rims size: Front wheel rims: 8.5J x 19
Front suspension: Double wishbone, Transverse stabilizer
Rear suspension: Independent multi-link Spring suspension with stabilizer
See also

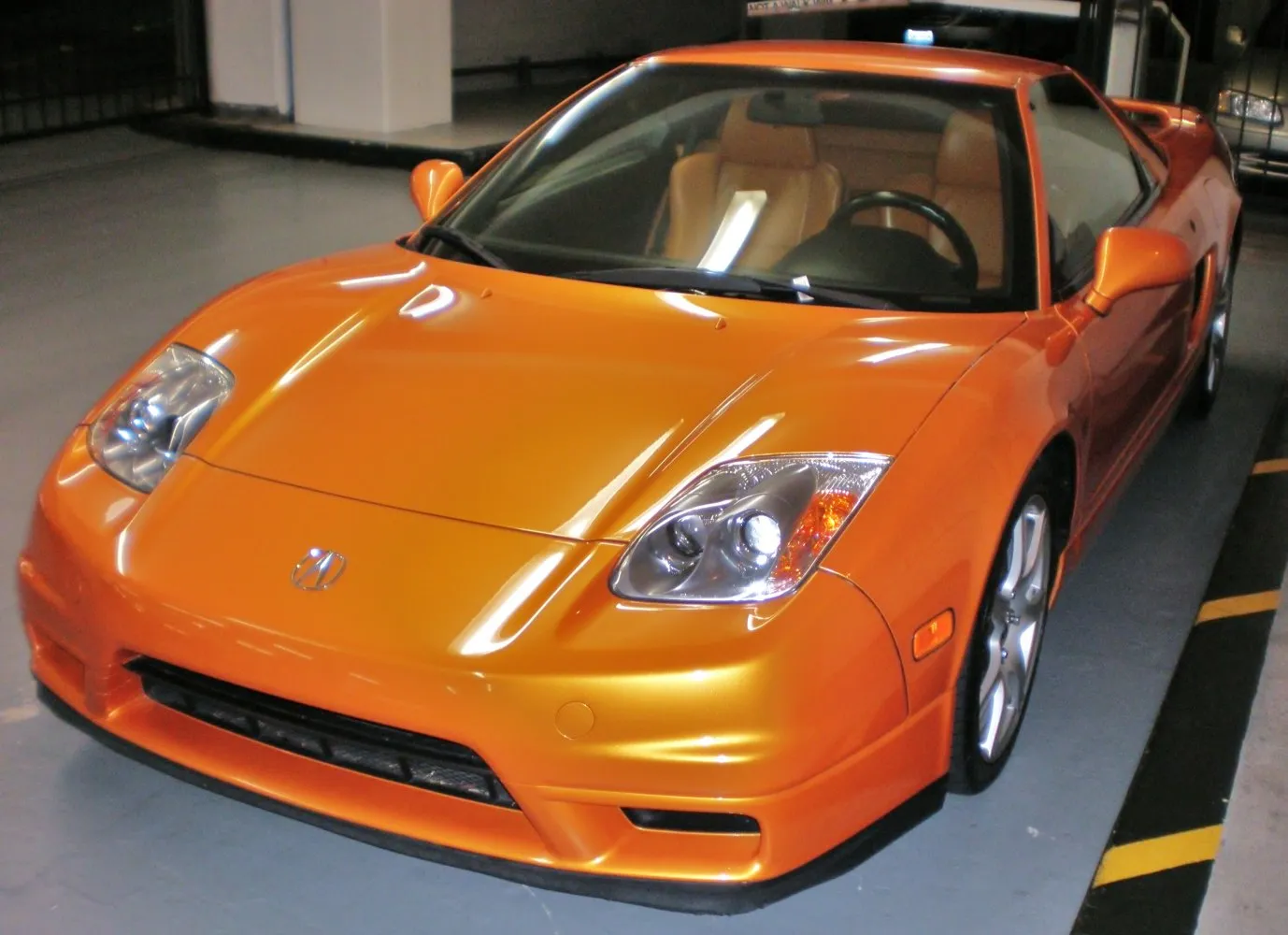

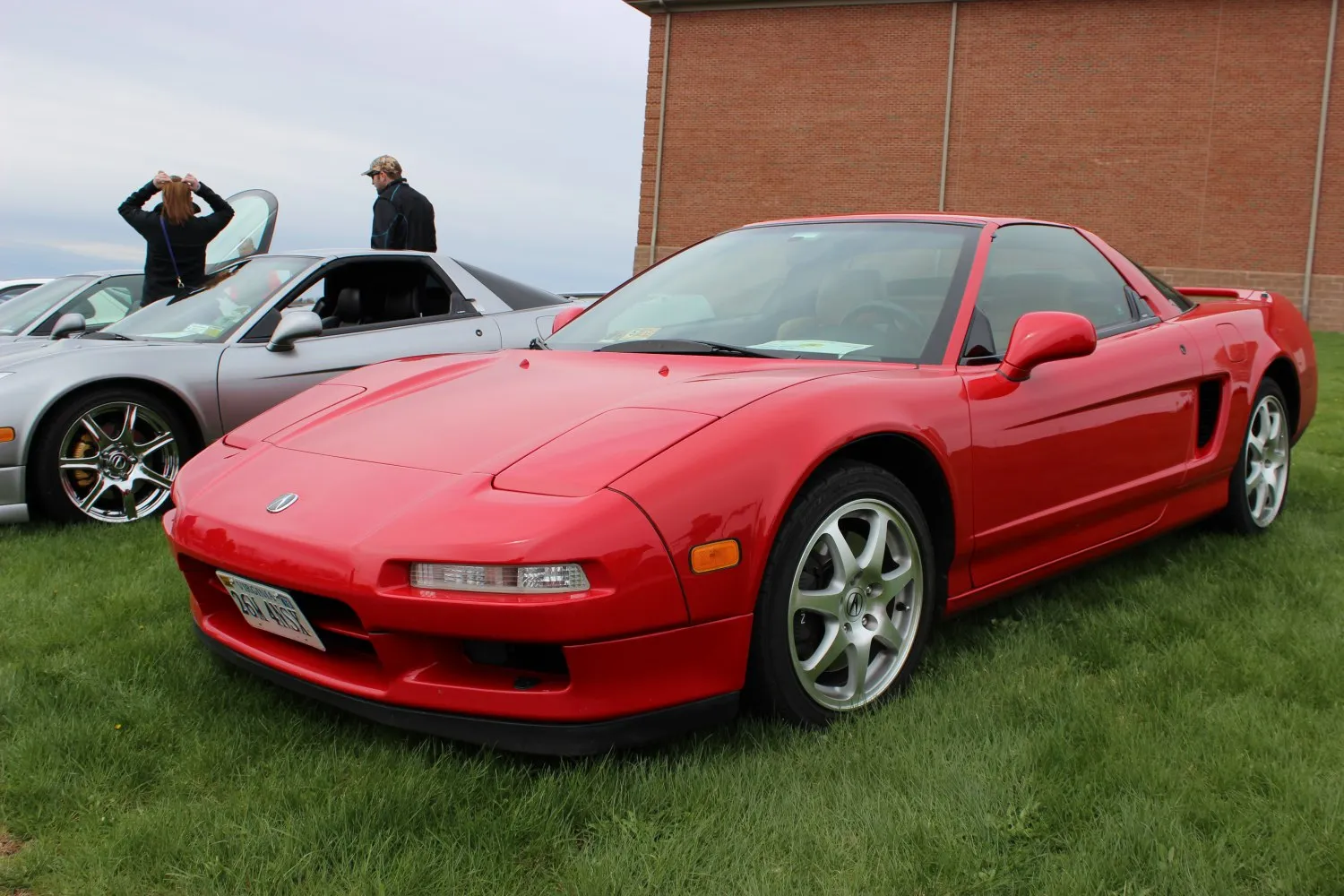

Other generation.
