Everything you need to know about specifications and performance - Volkswagen Tiguan 2024 - 1.5 TSI (272 Hp) eHybrid DSG
Overview:
What is the engine capacity of a Volkswagen Tiguan 2024?
The engine capacity of the Volkswagen Tiguan 2024 is 1498.
Volkswagen Tiguan 2024 How many horsepower?
The engine power of the Volkswagen Tiguan 2024 is 177 Hp.
What is the Volkswagen Tiguan 2024 engine?
Volkswagen Tiguan 2024 engine is EA211 evo2. (Click to see other cars using the same engine)
How powerful is the electrical system in the Volkswagen Tiguan 2024?
The power of the electrical system in the Volkswagen Tiguan 2024 is 272 Hp hp.
General:
Brand: Volkswagen
Model: Tiguan
Generation: III
Modification (Engine): 1.5 TSI (272 Hp) eHybrid DSG
Start of production: February, 2024
End of production:
Powertrain Architecture:Plug-In Hybrid Electric Vehicles (PHEVs)
Body type:Sports Utility Vehicle (SUV)
Seats: 5
Doors: 5
Engine:
Engine systems: Start & Stop System
Power: 177 hp
Power per litre: 118.2 hp/l
Torque: 250 nm @ 1500-4000 rpm.
Engine Model/Code:EA211 evo2
Engine displacement: 1498
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Direct injection
Engine aspiration: Turbocharger, Intercooler
Valvetrain: DOHC
Engine layout: Front, Transverse
Cylinder Bore: 74.5 mm
Piston Stroke: 85.9 mm
Performance:
Fuel Type: Petrol / electricity
Combined fuel consumption (WLTP): 0.4 l/100 km
Emission standard: Euro 6 EA
Acceleration 0 - 100 km/h: 7 sec
Acceleration 0 - 62 mph: 7 sec
Maximum speed: 215 km/h
Weight-to-power ratio: 6.7 kg/Hp, 149.9 Hp/tonne
Weight-to-torque ratio: 4.5 kg/Nm, 220.4 Nm/tonne
Acceleration 0 - 60 mph: 6.7 sec
Electric system:
Net (usable) battery capacity: 19.7 kWh
Gross battery capacity: 25.7 kWh
Battery technology: Lithium nickel manganese cobalt oxides (Li-NMC)
System power: 272 hp
System torque: 400 nm
All-electric range: 119-122 km
Electric motor power: 115 hp
Average Energy consumption: 17.3-17.8 kWh/100 km
Electric motor location: Between the combustion Engine and the transmission
Average Energy consumption (WLTP): 17.3-17.8 kWh/100 km
Electric motor type: Synchronous
All-electric range (WLTP): 119-122 km
Battery voltage: 353 V
Space:
Kerb Weight (kg): 1815
Max. weight (kg): 2400
Max. roof load: 100 kg
Max load (kg): 585
Trunk (boot) space - maximum: 1486 l
Trunk (boot) space - minimum: 490 l
Permitted trailer load with brakes (12%): 2000 kg
Fuel tank capacity: 45 l
Permitted trailer load without brakes: 750 kg
dimensions:
Ramp-over (brakeover) angle: 16.5°
Length: 4539 mm
Width: 1842 mm
Height: 1658 mm
wheelbase: 2679 mm
Width including mirrors: 2140 mm
Front track: 1584-1590 mm
Rear (Back) track: 1575-1583 mm
Minimum turning circle (turning diameter): 11.7 m
Approach angle: 16.8°
Departure angle: 19.6°
Powertrain, Suspension and Brakes:
Drivetrain Architecture: The Internal combustion Engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 6 gears, automatic transmission DSG
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: 235/55 R18; 235/50 R19; 255/45 R19
Wheel rims size: 7.5J x 18; 7.5J x 19; 8.5J x 19
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Independent multi-link Spring suspension with stabilizer
See also

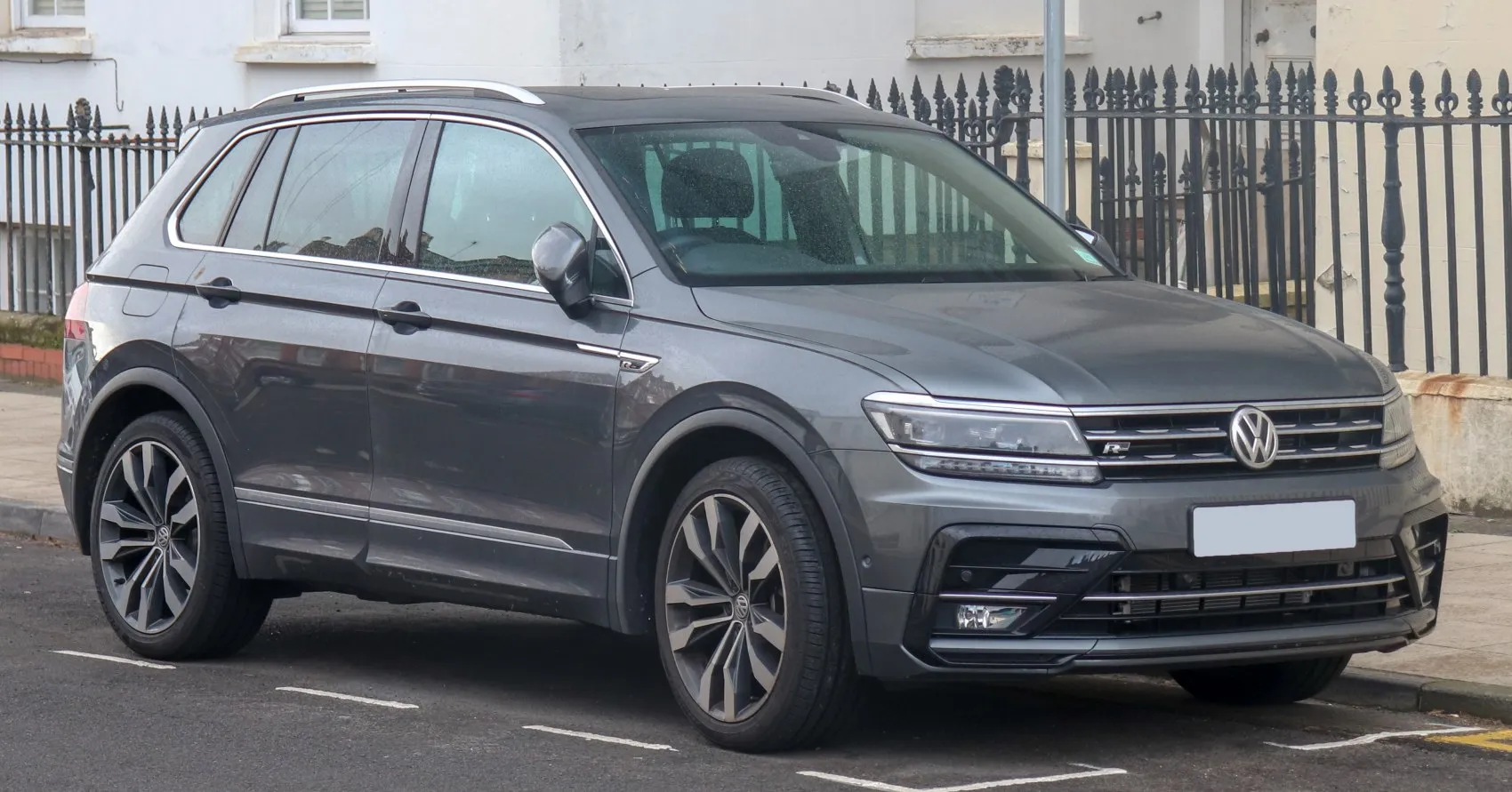

Other generation.
