Everything you need to know about specifications and performance - Toyota Tundra 2002 - 4.0i V6 (245 Hp)
Overview:
What is the engine capacity of a Toyota Tundra 2002?
The engine capacity of the Toyota Tundra 2002 is 3956.
Toyota Tundra 2002 How many horsepower?
The engine power of the Toyota Tundra 2002 is 245 Hp @ 5200 rpm..
What is the Toyota Tundra 2002 engine?
Toyota Tundra 2002 engine is 1GR-FE. (Click to see other cars using the same engine)
General:
Brand: Toyota
Model: Tundra

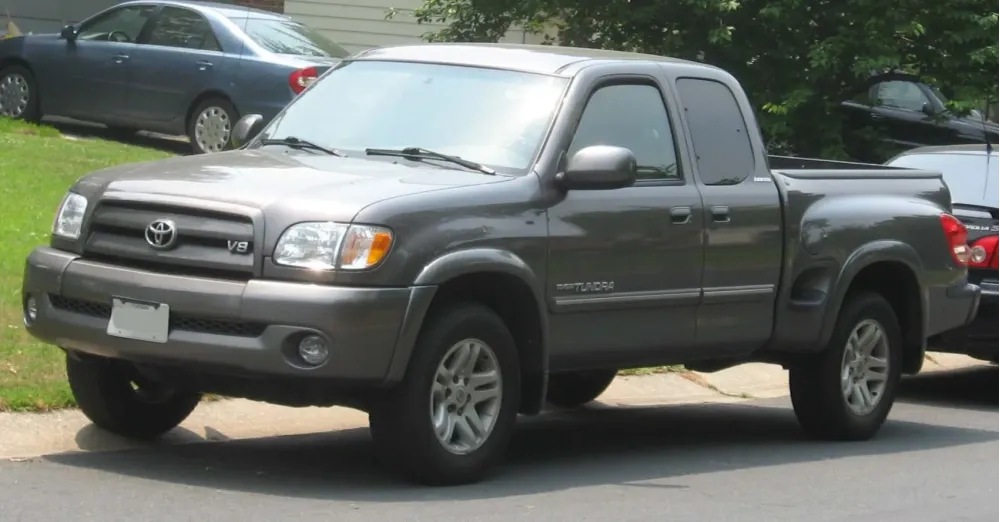

Generation: I Access Cab (facelift 2002)
Modification (Engine): 4.0i V6 (245 Hp)
Start of production: 2002
End of production: 2004
Powertrain Architecture: Internal Combustion Engine
Body type:Pickup
Seats: 5
Doors: 4
Engine:
Power: 245 hp @ 5200 rpm.
Power per litre: 61.9 hp/l
Torque: 382 nm @ 3800 rpm.
Engine Model/Code:1GR-FE
Engine displacement: 3956
Number of cylinders: 6
Engine configuration: V-engine
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 6.2 l
Coolant: 11.7 l
Engine layout: Front, Longitudinal
Cylinder Bore: 94 mm
Piston Stroke: 95 mm
Compression ratio: 10:1
Performance:
Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 13 l/100 km
Fuel consumption (economy) - extra urban: 10.6 l/100 km
Weight-to-power ratio: 8.3 kg/Hp, 119.8 Hp/tonne
Weight-to-torque ratio: 5.4 kg/Nm, 186.8 Nm/tonne
Space:
Kerb Weight (kg): 2045
Max. weight (kg): 2857
Max load (kg): 812
Trunk (boot) space - maximum: 2625 l
Permitted trailer load with brakes (12%): 3221 kg
Fuel tank capacity: 100 l
dimensions:
Length: 5545 mm
Width: 1910 mm
Height: 1796 mm
wheelbase: 3259 mm
Front track: 1681 mm
Rear (Back) track: 1648 mm
Ride height (ground clearance): 264 mm
Minimum turning circle (turning diameter): 13.6 m
Approach angle: 27°
Departure angle: 23°
Powertrain, Suspension and Brakes:
Drivetrain Architecture: The Internal combustion Engine (ICE) drives the rear wheels of the vehicle.
Drive wheel: Rear wheel drive
Number of gears and type of gearbox: 6 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Tires size: 245/70 R16
Wheel rims size: 7.0J x 16
Front suspension: Double wishbone
Rear suspension: Leaf Spring
