Everything you need to know about specifications and performance - Toyota Avanza 2003 - 1.3 (86 Hp)

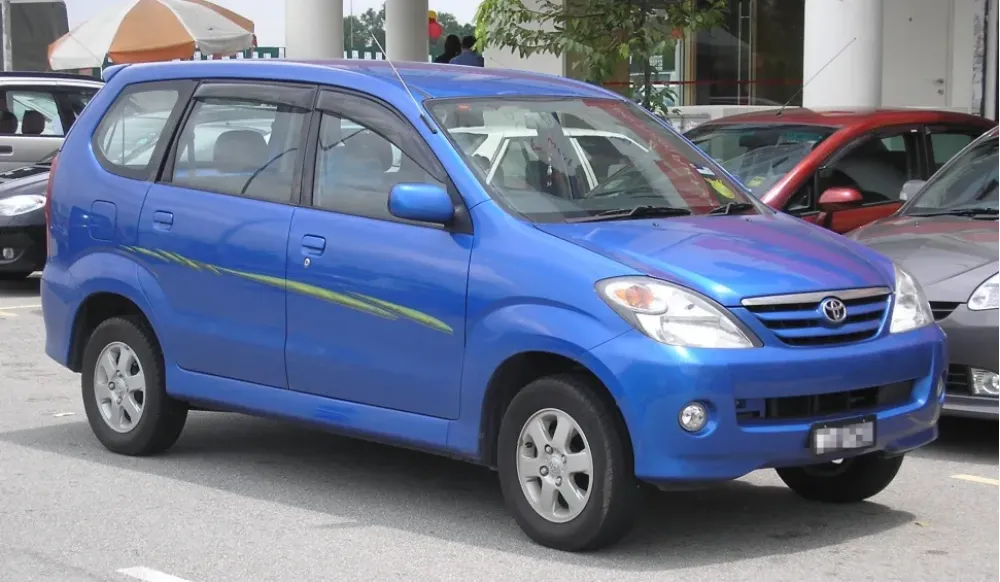

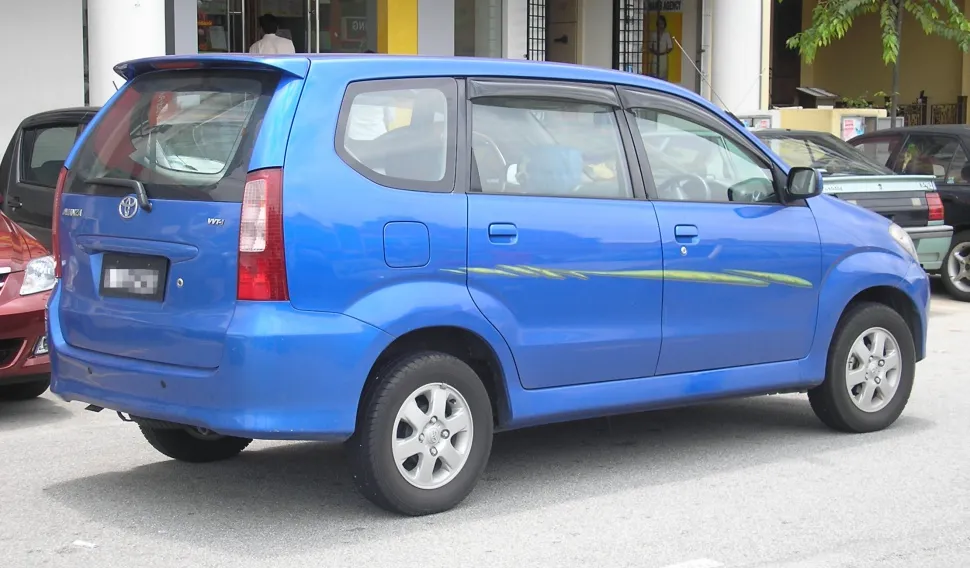

Full specifications and technical details 2003 Toyota Avanza I 1.3 (86 Hp)

Overview:

What is the engine capacity of a Toyota Avanza 2003?
The engine capacity of the Toyota Avanza 2003 is 1298.

Toyota Avanza 2003 How many horsepower?
The engine power of the Toyota Avanza 2003 is 86 Hp @ 6000 rpm..

What is the Toyota Avanza 2003 engine?
Toyota Avanza 2003 engine is K3-VE. (Click to see other cars using the same engine)

General:

Brand: Toyota
Model: Avanza
Generation: I
Modification (Engine): 1.3 (86 Hp)
Start of production: 2003
End of production: 2006
Powertrain Architecture: Internal Combustion Engine
Seats: 5-7
Doors: 5

Engine:

Power: 86 hp @ 6000 rpm.
Power per litre: 66.3 hp/l
Torque: 117 nm @ 3200 rpm.
Engine Model/Code:K3-VE
Engine displacement: 1298
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 3.2 l
Engine layout: Front, Longitudinal
Cylinder Bore: 72 mm
Piston Stroke: 79.7 mm

Performance:

Fuel Type: Petrol (Gasoline)
Weight-to-power ratio: 12.6 kg/Hp, 79.3 Hp/tonne
Weight-to-torque ratio: 9.3 kg/Nm, 107.8 Nm/tonne

Space:

Kerb Weight (kg): 1085
Fuel tank capacity: 45 l

dimensions:

Length: 4070 mm
Width: 1630 mm
Height: 1685 mm
wheelbase: 2655 mm
Front track: 1405 mm
Rear (Back) track: 1415 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the rear wheels of the vehicle.
Drive wheel: Rear wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Disc
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Tires size: 185/70 R14
Wheel rims size: 14
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Independent multi-link Spring suspension with stabilizer

See also

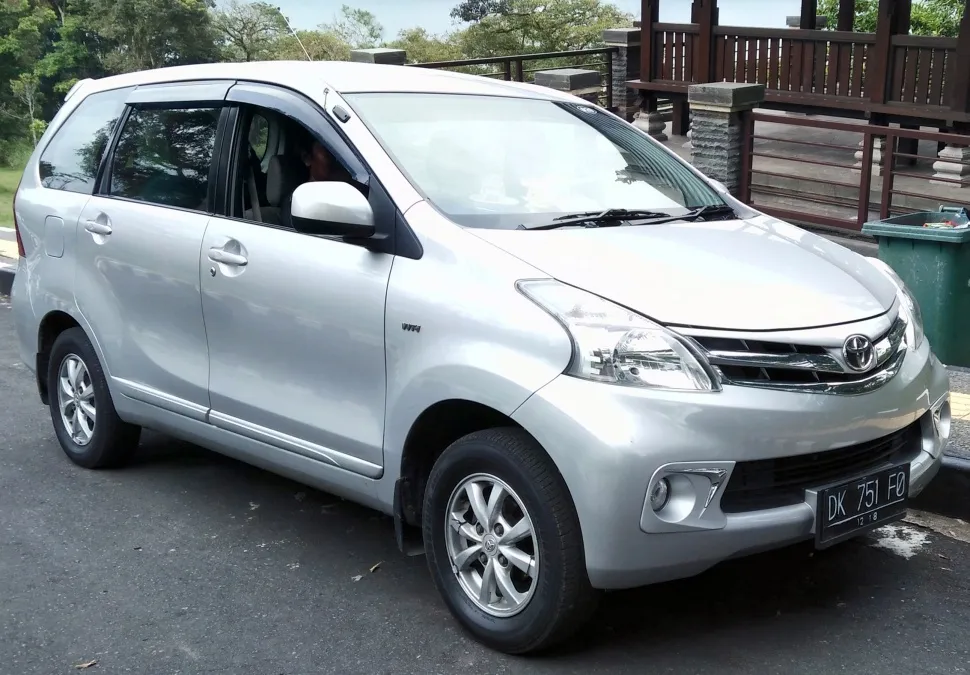

2015 Toyota Avanza II (facelift 2015) 1.3 (97 Hp) thumb image
