Everything you need to know about specifications and performance - Mitsubishi Eclipse 2009 - 3.8L V6 MIVEC (265 Hp) Automatic

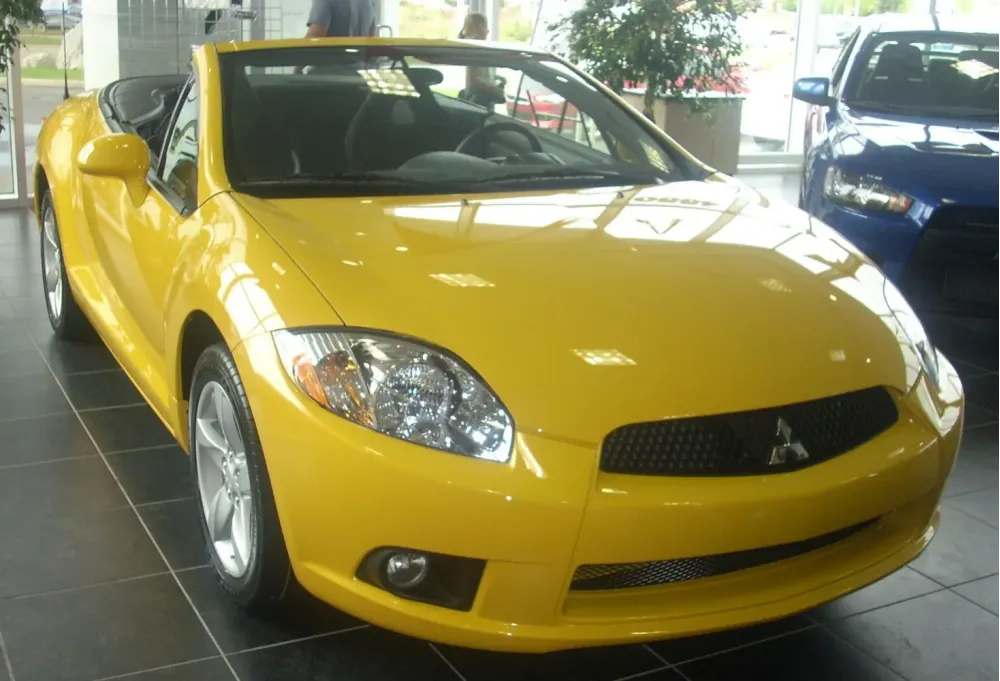

Full specifications and technical details 2009 Mitsubishi Eclipse Spyder IV (4G, facelift 2009) 3.8L V6 MIVEC (265 Hp) Automatic

Overview:

What is the engine capacity of a Mitsubishi Eclipse 2009?
The engine capacity of the Mitsubishi Eclipse 2009 is 3828.

Mitsubishi Eclipse 2009 How many horsepower?
The engine power of the Mitsubishi Eclipse 2009 is 265 Hp @ 5750 rpm..

What is the Mitsubishi Eclipse 2009 engine?
Mitsubishi Eclipse 2009 engine is 6G75. (Click to see other cars using the same engine)

What is the recommended oil for a Mitsubishi Eclipse 2009 engine?
The recommended oil for a Mitsubishi Eclipse 2009 car engine is 5W-30, 5W-40.

What type of camshaft transmission system is used in a Mitsubishi Eclipse 2009 engine?
belt is used to transmit motion.

General:

Brand: Mitsubishi

Model: Eclipse

Generation: Spyder IV (4G, facelift 2009)

Modification (Engine): 3.8L V6 MIVEC (265 Hp) Automatic

Start of production: 2009

End of production: 2011

Powertrain Architecture: Internal Combustion Engine

Body type: Cabriolet

Seats: 4

Doors: 2

Engine:

Power: 265 hp @ 5750 rpm.

Power per litre: 69.2 hp/l

Torque: 355 nm @ 4500 rpm.

Engine Model/Code:6G75

Engine displacement: 3828

Number of cylinders: 6

Engine configuration: V-engine

Number of valves per cylinder: 4

Fuel injection system: Multi-port manifold injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: SOHC

Engine oil capacity: 4.3 l

Coolant: 8 l

Engine layout: Front, Transverse

Cylinder Bore: 95 mm

Piston Stroke: 90 mm

Compression ratio: 10.5:1

recommended engine oil: 5W-30, 5W-40

euro standards: EURO 3/4 (6G75 MPI)
EURO 4/5 (6G75 MPI MIVEC)
EURO 5 (6G75 GDI)

engine lifespan (km): ~400 000

weight (kg): 205

timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - urban: 14.7 l/100 km

Fuel consumption (economy) - extra urban: 9.8 l/100 km

Weight-to-power ratio: 6.4 kg/Hp, 155.2 Hp/tonne

Weight-to-torque ratio: 4.8 kg/Nm, 208 Nm/tonne

Space:

Kerb Weight (kg): 1707

Trunk (boot) space - maximum: 147 l

Fuel tank capacity: 67 l

dimensions:

Length: 4582 mm

Width: 1833 mm

Height: 1389 mm

wheelbase: 2575 mm

Front track: 1570 mm

Rear (Back) track: 1570 mm

Minimum turning circle (turning diameter): 12.2 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: 5 gears, automatic transmission Sportronic

Front brakes: Ventilated discs, 295 mm

Rear brakes: Disc, 284 mm

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Hydraulic Steering

Tires size: 235/45 R18

Wheel rims size: 18

Front suspension: Independent type McPherson

Rear suspension: Independent multi-link suspension
