Everything you need to know about specifications and performance - Lexus ES 2012 - 300h (200 Hp) Hybrid e-CVT

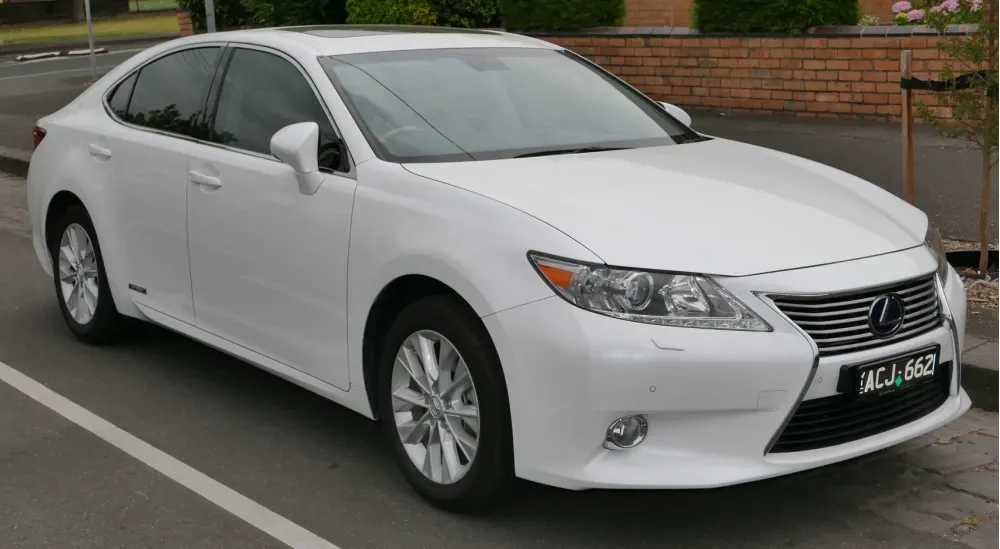

Full specifications and technical details 2012 Lexus ES VI (XV60) 300h (200 Hp) Hybrid e-CVT

Overview:

What is the engine capacity of a Lexus ES 2012?
The engine capacity of the Lexus ES 2012 is 2494.

Lexus ES 2012 How many horsepower?
The engine power of the Lexus ES 2012 is 156 Hp @ 5700 rpm..

What is the Lexus ES 2012 engine?
Lexus ES 2012 engine is 2AR-FXE. (Click to see other cars using the same engine)

How powerful is the electrical system in the Lexus ES 2012?
The power of the electrical system in the Lexus ES 2012 is 200 Hp hp.

How much gasoline does a Lexus ES 2012 consume?
The Lexus ES 2012 consumes 5.9 liters of gasoline per 100 km

What is the recommended oil for a Lexus ES 2012 engine?
The recommended oil for a Lexus ES 2012 car engine is 5W-30.

What type of camshaft transmission system is used in a Lexus ES 2012 engine?
chain is used to transmit motion.

General:

Brand: Lexus

Model: ES

Generation: VI (XV60)

Modification (Engine): 300h (200 Hp) Hybrid e-CVT

Start of production: 2012

End of production: 2015

Powertrain Architecture: FHEV (Full Hybrid Electric Vehicle)

Body type:Sedan

Seats: 5

Doors: 4

Engine:

Engine systems: Start & Stop System

Power: 156 hp @ 5700 rpm.

Power per litre: 62.6 hp/l

Torque: 212 nm @ 4500 rpm.

Engine Model/Code:2AR-FXE

Engine displacement: 2494

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 4

Fuel injection system: Multi-port manifold injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: DOHC, VVT-i

Engine oil capacity: 4.4 l

Coolant: 7.2 l

Engine layout: Front, Transverse

Cylinder Bore: 90 mm

Piston Stroke: 98 mm

Compression ratio: 12.5:1

recommended engine oil: 5W-30

euro standards: EURO 5

engine lifespan (km): ~300 000

weight (kg): 149

timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - urban: 5.9 l/100 km

Fuel consumption (economy) - extra urban: 6 l/100 km

Fuel consumption (economy) - combined: 5.9 l/100 km

Emission standard: SULEV

Maximum speed: 180 km/h, Electronically limited

Weight-to-power ratio: 8.3 kg/Hp, 120.5 Hp/tonne

Weight-to-torque ratio: 7.8 kg/Nm, 127.7 Nm/tonne

Acceleration 0 - 60 mph: 8.1 sec

Electric system:

Gross battery capacity: 1.6 kWh

Battery technology: Nickel-metal hydride (NiMH)

Battery location: Inside the trunk

System power: 200 hp

Electric motor power: 141 hp

Electric motor Torque: 270 nm

Electric motor location: Integrated into the transmission

Electric motor type: Synchronous

Battery weight: 47 kg

Battery voltage: 244.8 V

Space:

Kerb Weight (kg): 1660

Max. weight (kg): 2150

Max load (kg): 490

Trunk (boot) space - minimum: 342 l

Fuel tank capacity: 65 l

dimensions:

Length: 4895 mm

Width: 1820 mm

Height: 1450 mm

wheelbase: 2820 mm

Front track: 1590 mm

Rear (Back) track: 1575 mm

Ride height (ground clearance): 155 mm

Minimum turning circle (turning diameter): 11.4 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: automatic transmission e-CVT

Front brakes: Ventilated discs, 295 mm

Rear brakes: Disc, 280 mm

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Electric Steering

Tires size: 215/55 R17

Wheel rims size: 7J x 17

Front suspension: Independent, type McPherson with coil Spring and anti-roll bar

Rear suspension: McPherson, Transverse stabilizer
