Everything you need to know about specifications and performance - Hyundai H-1 2018 - 2.5 D (175 Hp) 4WD Automatic

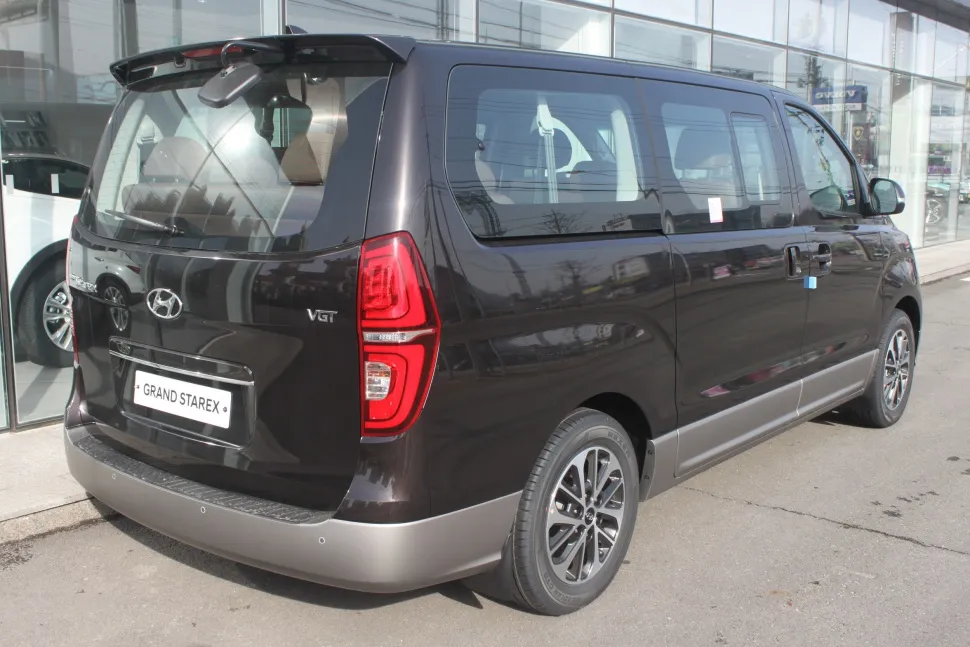

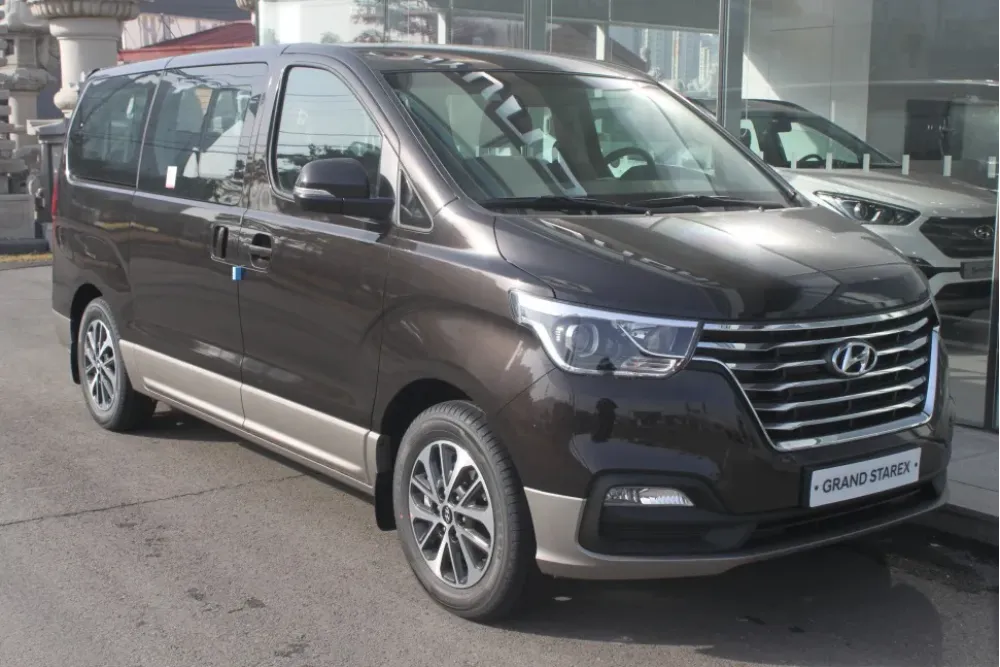

Full specifications and technical details 2018 Hyundai H-1 II/Grand Starex (facelift 2018) 2.5 D (175 Hp) 4WD Automatic

Overview:

What is the engine capacity of a Hyundai H-1 2018?
The engine capacity of the Hyundai H-1 2018 is 2497.

Hyundai H-1 2018 How many horsepower?
The engine power of the Hyundai H-1 2018 is 175 Hp @ 3600 rpm..

What is the Hyundai H-1 2018 engine?
Hyundai H-1 2018 engine is D4CB. (Click to see other cars using the same engine)

How much gasoline does a Hyundai H-1 2018 consume?
The Hyundai H-1 2018 consumes 10.3 liters of gasoline per 100 km

General:

Brand: Hyundai
Model: H-1
Generation: II/Grand Starex (facelift 2018)
Modification (Engine): 2.5 D (175 Hp) 4WD Automatic
Start of production: 2018
End of production:
Powertrain Architecture: Internal Combustion Engine
Body type:Mini van
Seats: 7-9
Doors: 5

Engine:

Power: 175 hp @ 3600 rpm.
Power per litre: 70.1 hp/l
Torque: 441 nm @ 2000-2250 rpm.
Engine Model/Code:D4CB
Engine displacement: 2497
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Diesel Commonrail
Engine aspiration: Turbocharger, Intercooler
Valvetrain: DOHC
Engine oil capacity: 7.4 l
Coolant: 13 l
Cylinder Bore: 91 mm
Piston Stroke: 96 mm
Compression ratio: 16.4:1

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 10.6 l/100 km
Fuel consumption (economy) - extra urban: 8.8 l/100 km
Fuel consumption (economy) - combined: 10.3 l/100 km
Weight-to-power ratio: 14.3 kg/Hp, 70.1 Hp/tonne
Weight-to-torque ratio: 5.7 kg/Nm, 176.6 Nm/tonne

Space:

Kerb Weight (kg): 2497
Fuel tank capacity: 75 l

dimensions:

Length: 5169 mm
Width: 1920 mm
Height: 1925 mm
wheelbase: 3200 mm
Front track: 1685 mm
Rear (Back) track: 1660 mm
Front overhang: 880 mm
Rear overhang: 1089 mm
Ride height (ground clearance): 190 mm
Minimum turning circle (turning diameter): 11.2 m

Powertrain, Suspension and Brakes:

Drive wheel: All wheel drive (4x4)
Number of gears and type of gearbox: 5 gears, automatic transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 235/60 R17
Wheel rims size: 17
Front suspension: Independent type McPherson
Rear suspension: Independent multi-link suspension
