Everything you need to know about specifications and performance - Hyundai H-1 2015 - 2.5 TCi (101 Hp)

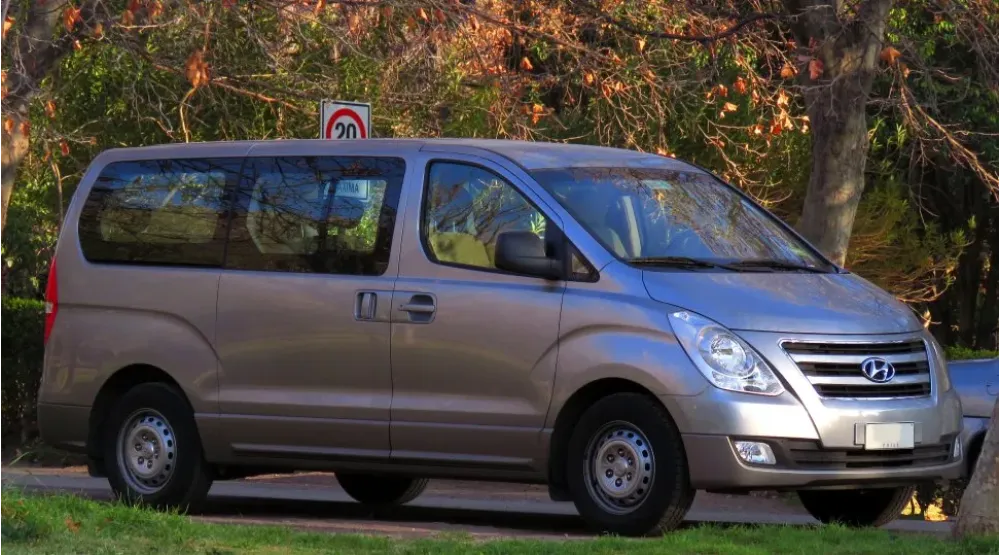

Full specifications and technical details 2015 Hyundai H-1 II Wagon (facelift 2015) 2.5 TCi (101 Hp)

Overview:

What is the engine capacity of a Hyundai H-1 2015?
The engine capacity of the Hyundai H-1 2015 is 2476.

Hyundai H-1 2015 How many horsepower?
The engine power of the Hyundai H-1 2015 is 101 Hp @ 3800 rpm..

What is the Hyundai H-1 2015 engine?
Hyundai H-1 2015 engine is 4D56. (Click to see other cars using the same engine)

What is the recommended oil for a Hyundai H-1 2015 engine?
The recommended oil for a Hyundai H-1 2015 car engine is 5W-30, 5W-40.

What type of camshaft transmission system is used in a Hyundai H-1 2015 engine?
belt is used to transmit motion.

General:

Brand: Hyundai
Model: H-1
Generation: II Wagon (facelift 2015)
Modification (Engine): 2.5 TCi (101 Hp)
Start of production: 2015
End of production: 2018
Powertrain Architecture: Internal Combustion Engine
Body type:Mini van
Seats: 9-12
Doors: 5

Engine:

Power: 101 hp @ 3800 rpm.
Power per litre: 40.8 hp/l
Torque: 226 nm @ 2000 rpm.
Engine Model/Code:4D56
Engine displacement: 2476
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Diesel Commonrail
Engine aspiration: Turbocharger, Intercooler
Engine oil capacity: 5.4 l
Coolant: 13 l
Engine layout: Front, Longitudinal
Cylinder Bore: 91.1 mm
Piston Stroke: 95 mm
Compression ratio: 21:1
recommended engine oil: 5W-30, 5W-40
euro standards: Euro 2
Euro 3
Euro 4
Euro 5
engine lifespan (km): ~400 000
weight (kg): 193
timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Diesel

dimensions:

Length: 5150 mm
Width: 1920 mm
Height: 1925 mm
wheelbase: 3200 mm
Front track: 1685 mm
Rear (Back) track: 1660 mm
Front overhang: 880 mm
Rear overhang: 1070 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the rear wheels of the vehicle.
Drive wheel: Rear wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Disc
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 215/70 R16
Wheel rims size: 16
Front suspension: Independent type McPherson
Rear suspension: Independent multi-link suspension

See also

2018 Hyundai H-1 II/Grand Starex (facelift 2018) 2.5 D (175 Hp) 4WD Automatic thumb image

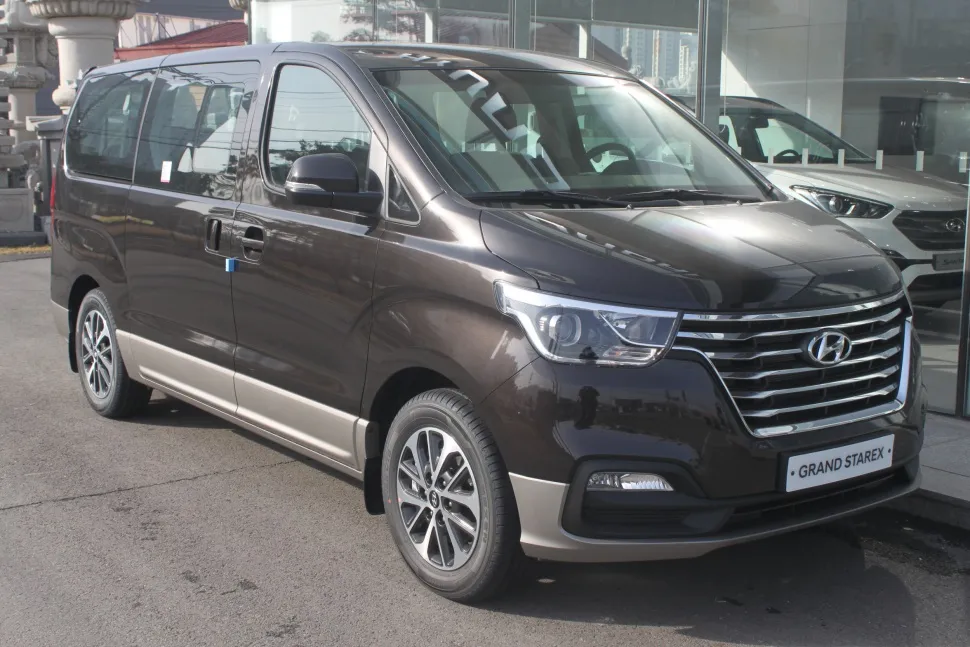

2018 Hyundai H-1 II/Grand Starex (facelift 2018) 2.5 D (175 Hp) 4WD Automatic

Last generation.
Its production began in 2018 until Now

2011 Hyundai H-1 II Travel 2.5 CRDi (136 Hp) thumb image
2011 Hyundai H-1 II Travel 2.5 CRDi (136 Hp)

Other generation.
Its production began in 2011 until 2015

2010 Mitsubishi L200 IV Double Cab (facelift 2010) 2.5 DI-D (136 Hp) thumb image

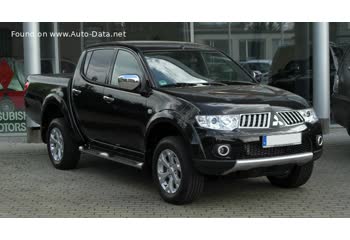

2010 Mitsubishi L200 IV Double Cab (facelift 2010) 2.5 DI-D (136 Hp)
