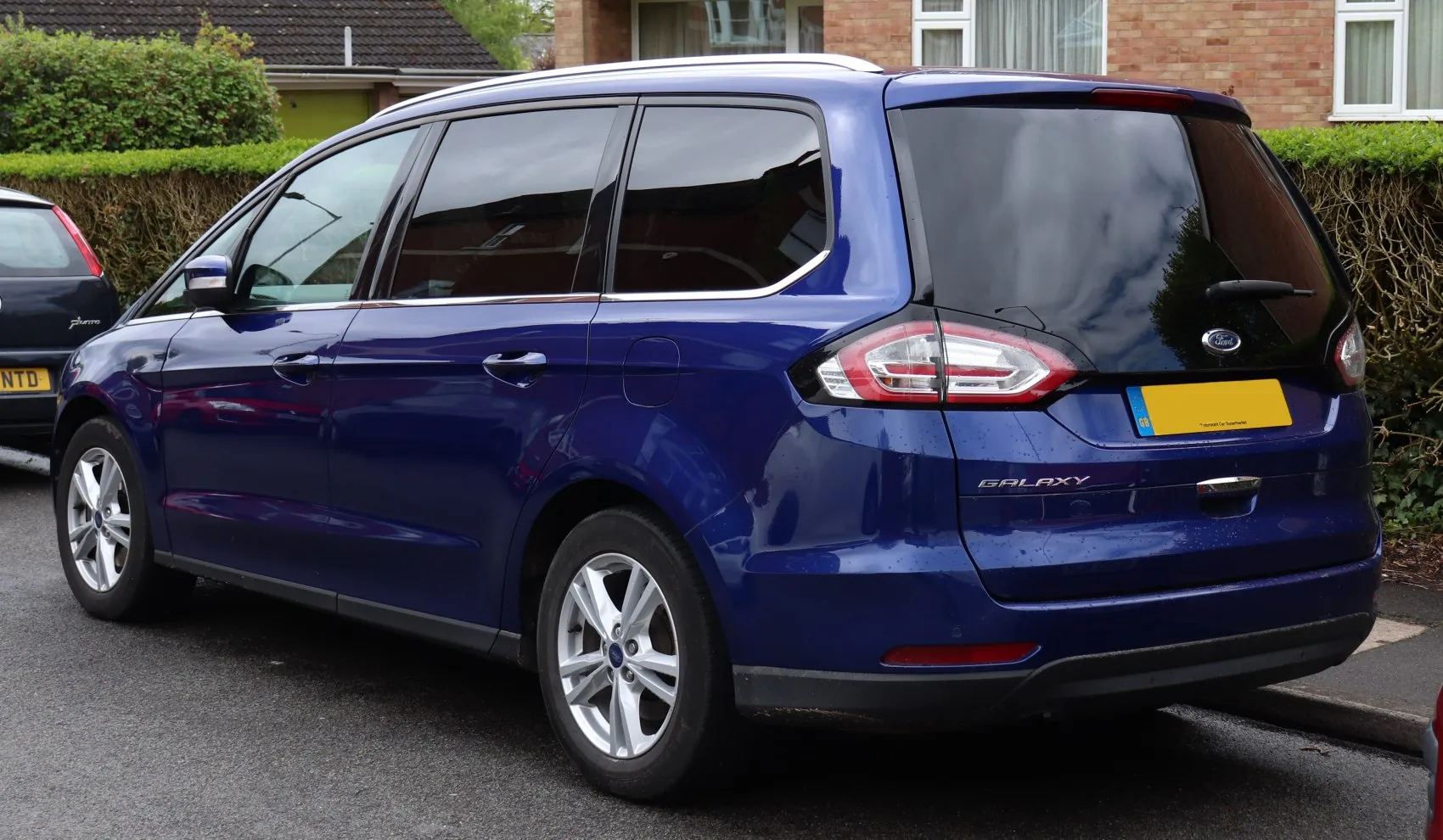

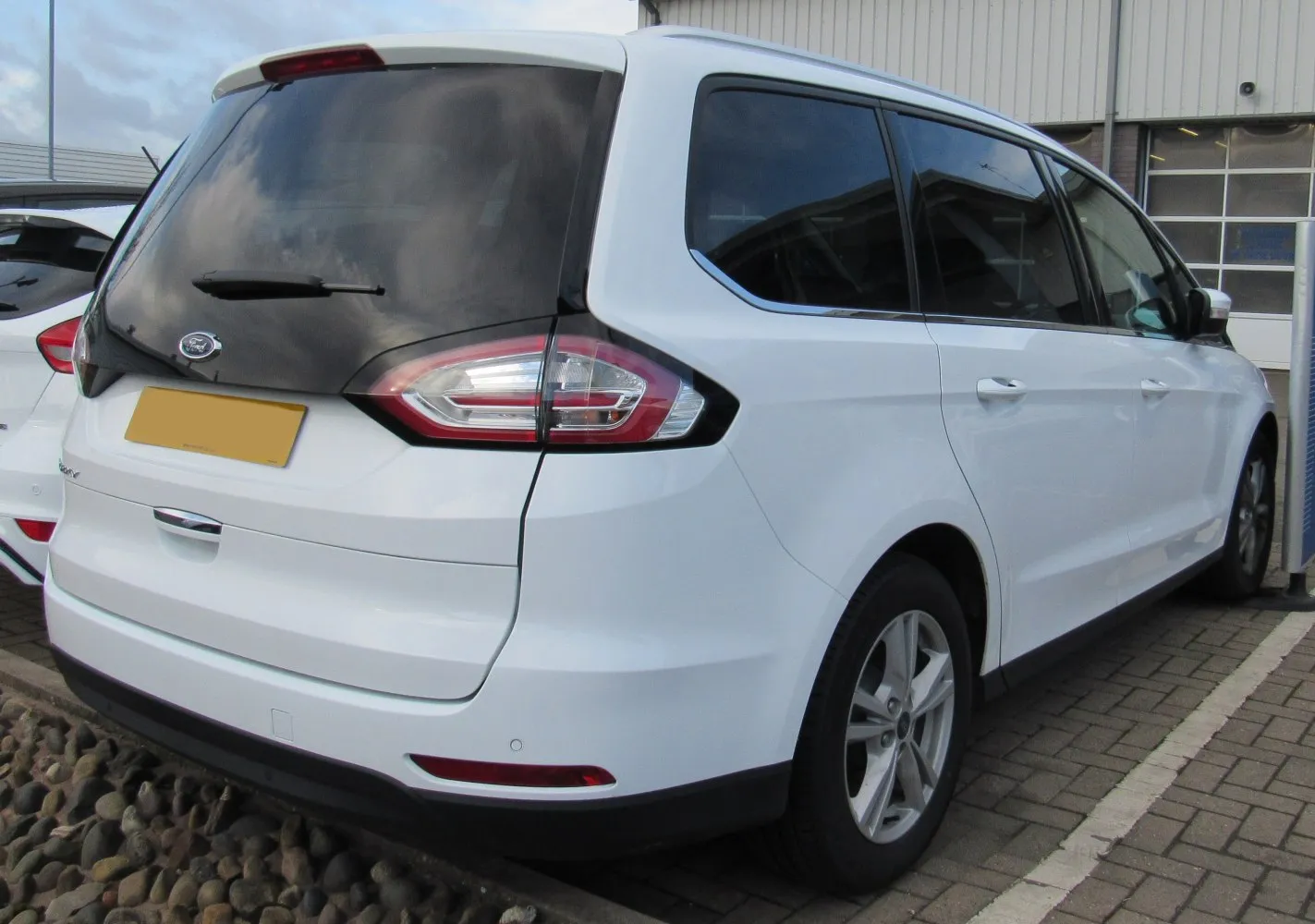

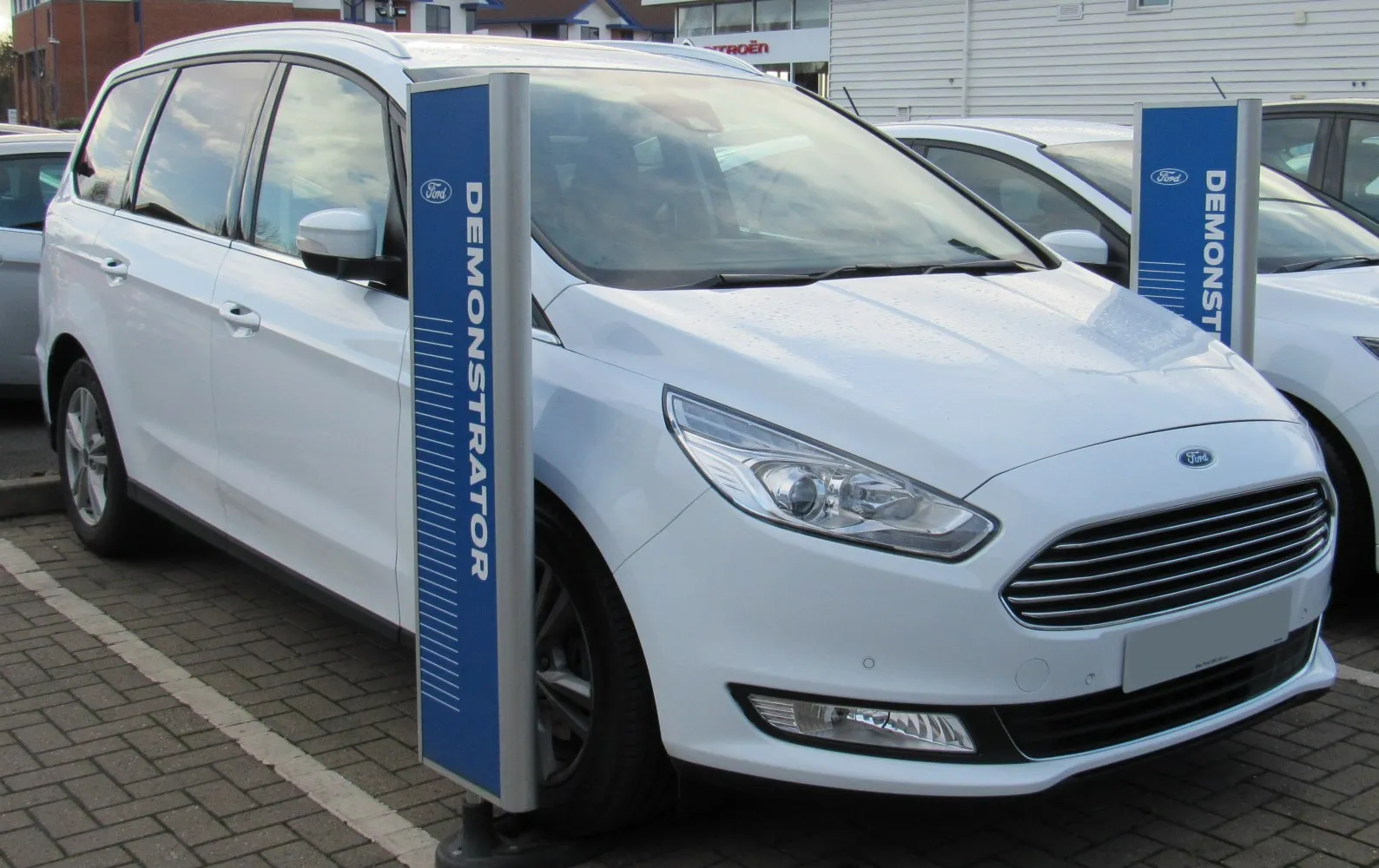

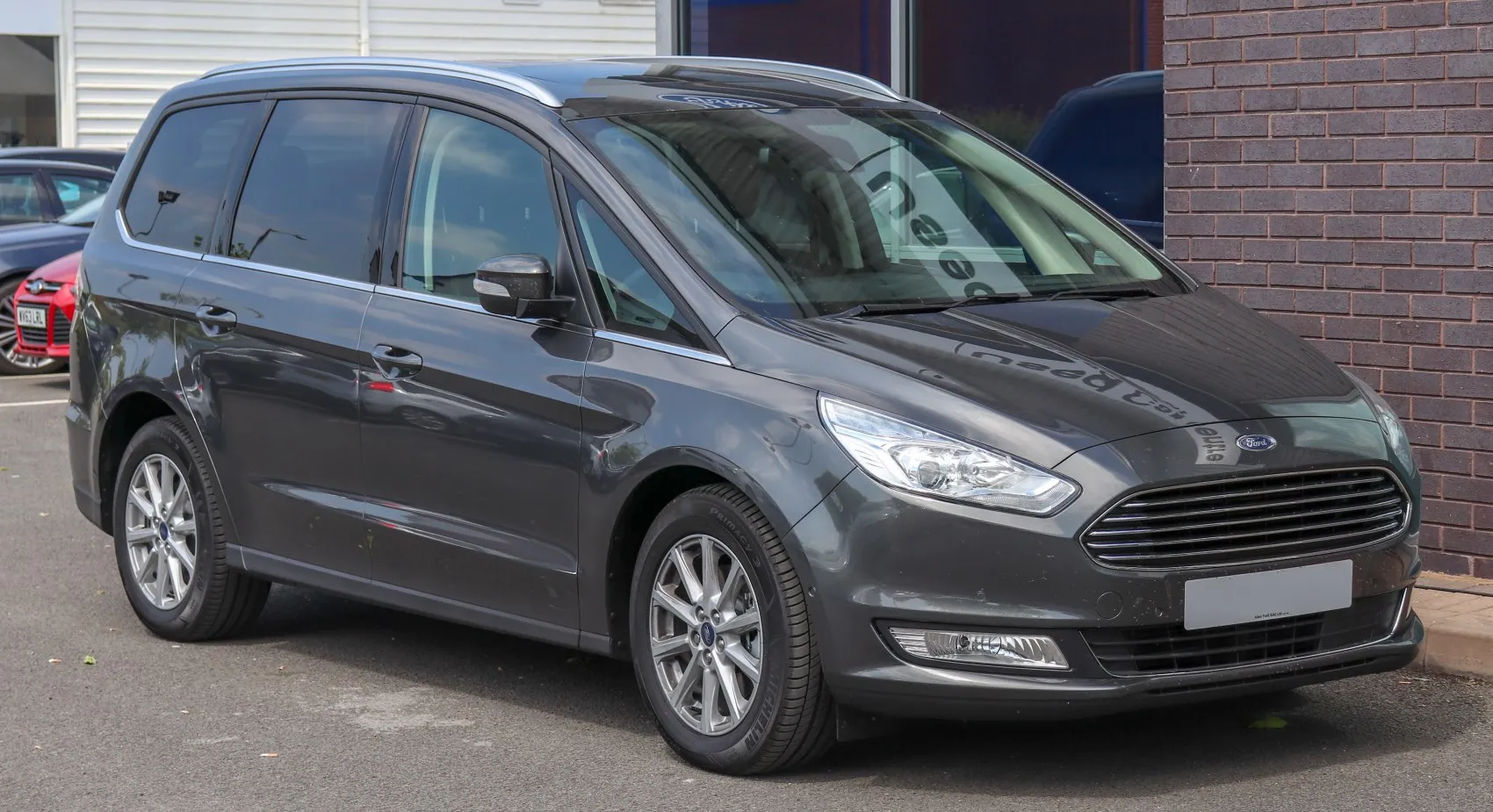

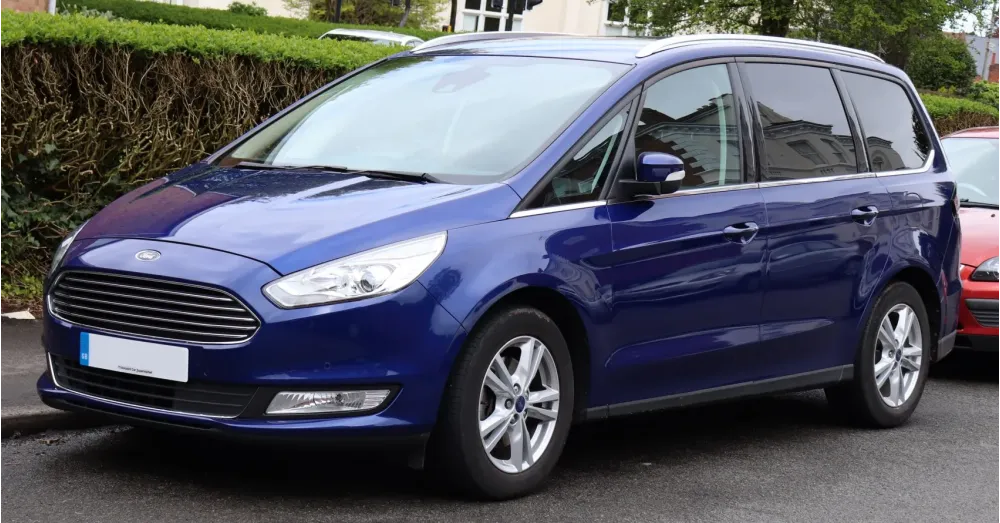

Everything you need to know about specifications and performance - Ford Galaxy 2015 - 2.0 TDCi (210 Hp) Powershift S&S
Overview:
What is the engine capacity of a Ford Galaxy 2015?
The engine capacity of the Ford Galaxy 2015 is 1997.
Ford Galaxy 2015 How many horsepower?
The engine power of the Ford Galaxy 2015 is 210 Hp @ 3750 rpm..
What is the Ford Galaxy 2015 engine?
Ford Galaxy 2015 engine is T9CB, T9CC, T9CD. (Click to see other cars using the same engine)
How much gasoline does a Ford Galaxy 2015 consume?
The Ford Galaxy 2015 consumes 5.5 liters of gasoline per 100 km
General:
Brand: Ford
Model: Galaxy
Generation: III
Modification (Engine): 2.0 TDCi (210 Hp) Powershift S&S
Start of production: 2015
End of production: 2018
Powertrain Architecture: Internal Combustion Engine
Body type:Mini van
Seats: 5-7
Doors: 5
Engine:
Engine systems: Start & Stop System
Power: 210 hp @ 3750 rpm.
Power per litre: 105.2 hp/l
Torque: 450 nm @ 2000-2250 rpm.
Engine Model/Code:T9CB, T9CC, T9CD
Engine displacement: 1997
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Diesel Commonrail
Engine aspiration: BiTurbo, Intercooler
Valvetrain: DOHC
Engine oil capacity: 6.1 l
Coolant: 8.2 l
Engine layout: Front, Transverse
Cylinder Bore: 85 mm
Piston Stroke: 88 mm
Compression ratio: 16:1
Performance:
Fuel Type: Diesel
Fuel consumption (economy) - urban: 6.3 l/100 km
Fuel consumption (economy) - extra urban: 5.1 l/100 km
Fuel consumption (economy) - combined: 5.5 l/100 km
Emission standard: Euro 6
Acceleration 0 - 100 km/h: 8.9 sec
Acceleration 0 - 62 mph: 8.9 sec
Maximum speed: 214 km/h
Weight-to-power ratio: 8.1 kg/Hp, 123.2 Hp/tonne
Weight-to-torque ratio: 3.8 kg/Nm, 264.1 Nm/tonne
Acceleration 0 - 60 mph: 8.5 sec
Space:
Kerb Weight (kg): 1704
Max. weight (kg): 2620
Max load (kg): 916
Trunk (boot) space - maximum: 2339 l
Trunk (boot) space - minimum: 300 l
Permitted trailer load with brakes (12%): 2000 kg
Fuel tank capacity: 70 l
Permitted trailer load without brakes: 750 kg
Permitted towbar download: 90 kg
Permitted trailer load with brakes (8%): 2000 kg
dimensions:
Length: 4848 mm
Width: 1916 mm
Height: 1747 mm
wheelbase: 2849 mm
Width with mirrors folded: 1953 mm
Width including mirrors: 2137 mm
Front track: 1606 mm
Rear (Back) track: 1606 mm
Ride height (ground clearance): 124 mm
Minimum turning circle (turning diameter): 12 m
Powertrain, Suspension and Brakes:
Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 6 gears, automatic transmission Powershift
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Tires size: 235/55 R17; 235/50 R18; 245/45 R19
Wheel rims size: 7.5J x 17; 7.5J x 18; 8J x 19
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Independent multi-link Spring suspension with stabilizer
See also

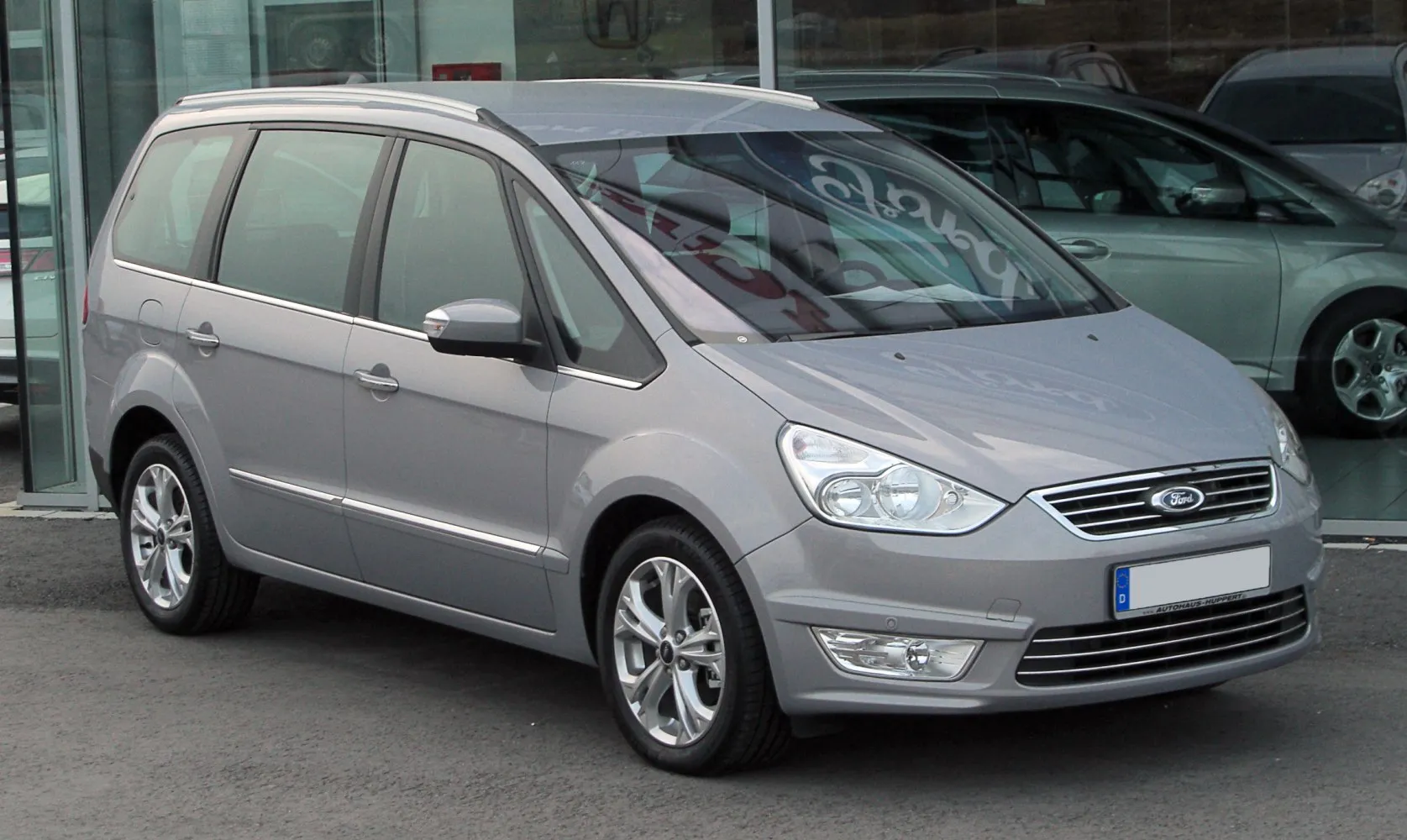

Other generation.
