Everything you need to know about specifications and performance - Toyota Yaris 2003 - TS 1.5 VVT-i (105 Hp)

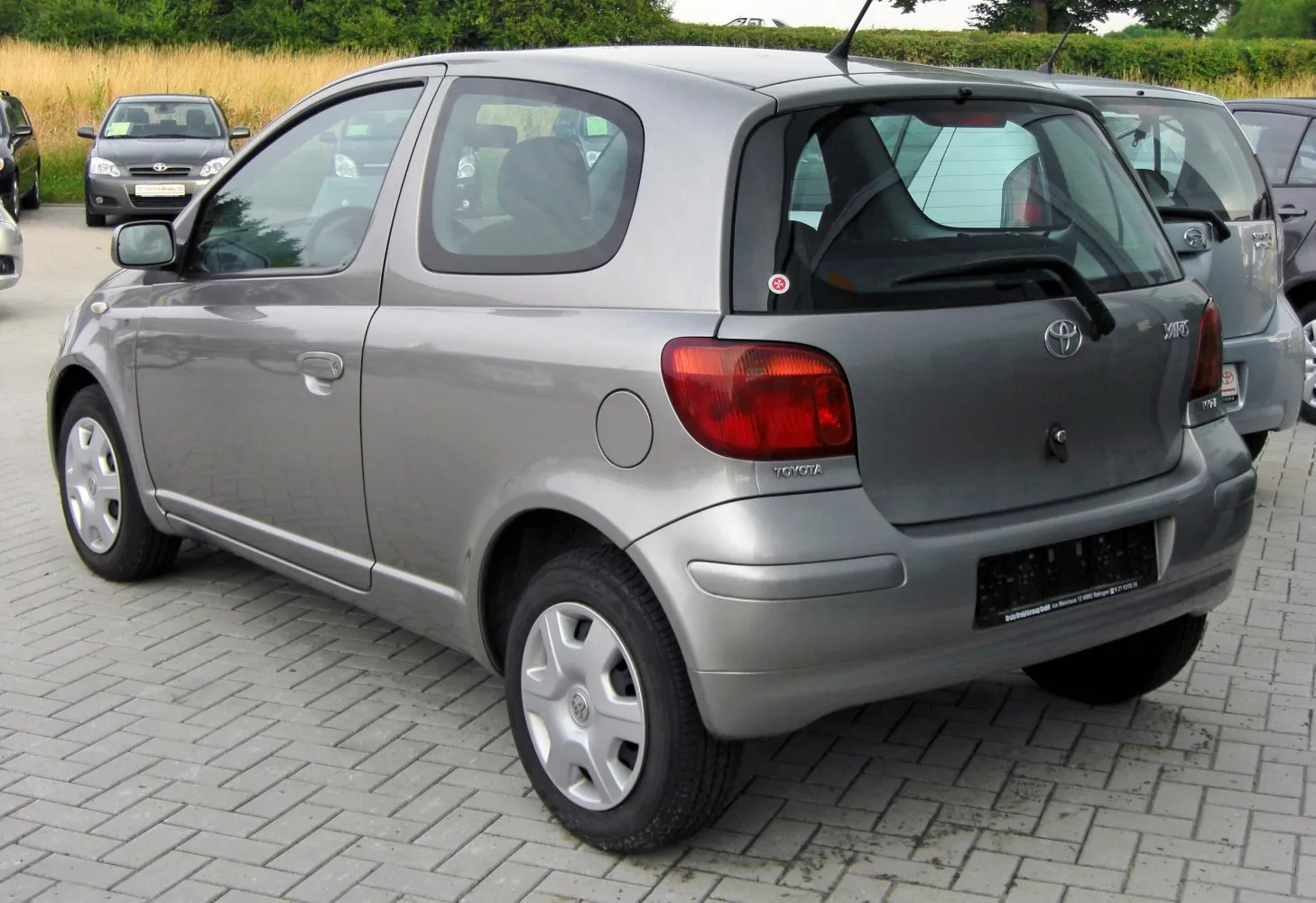

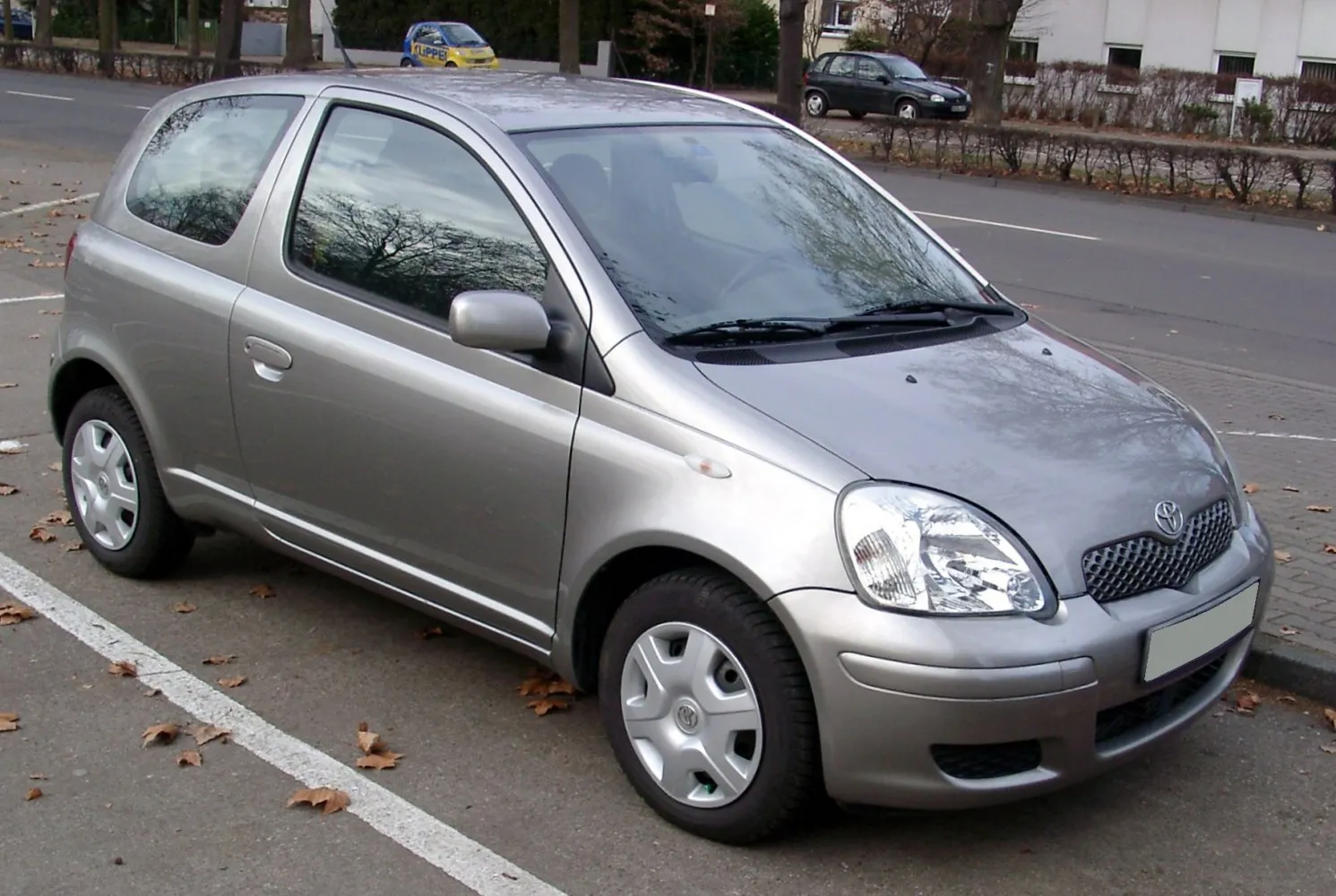

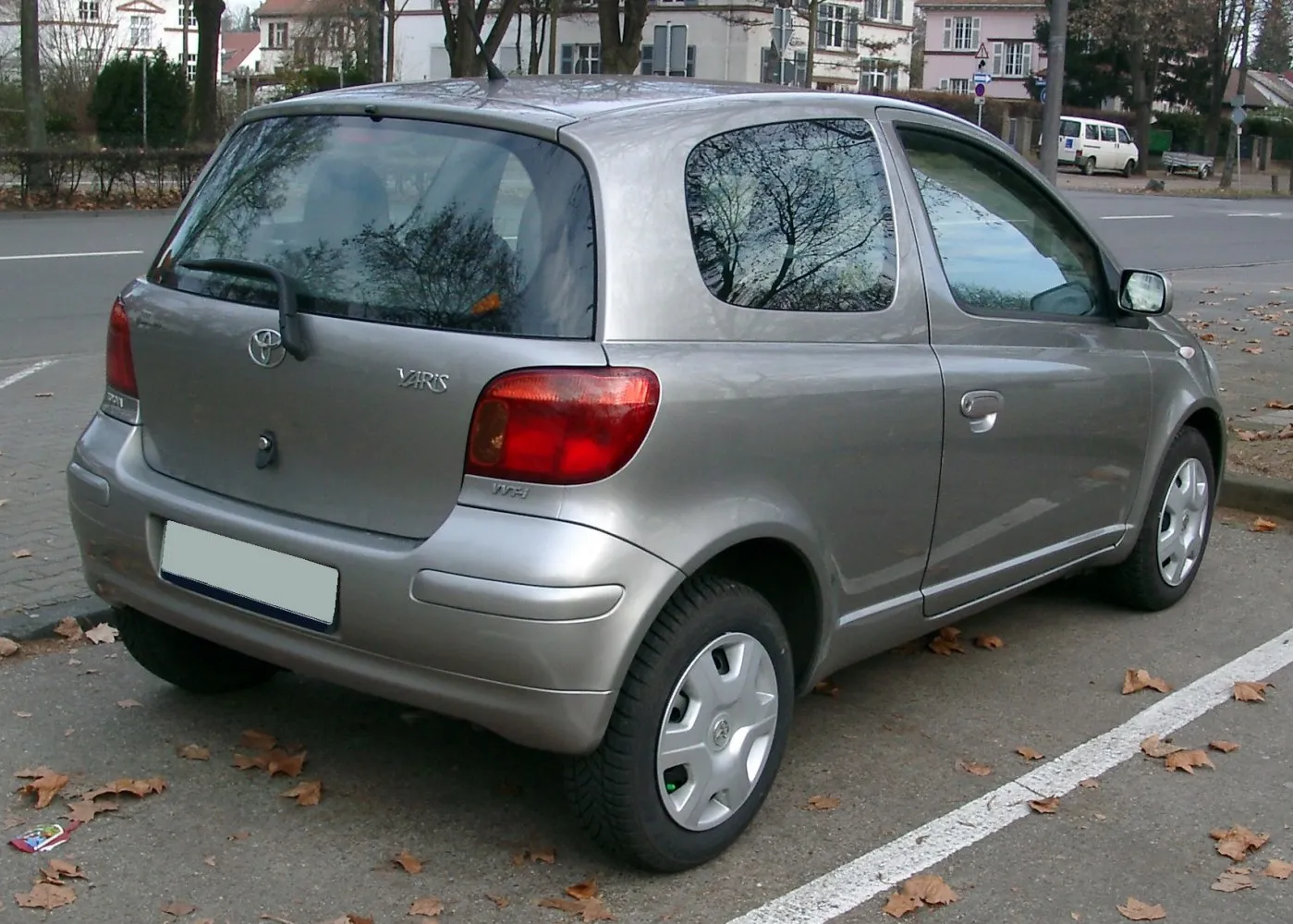

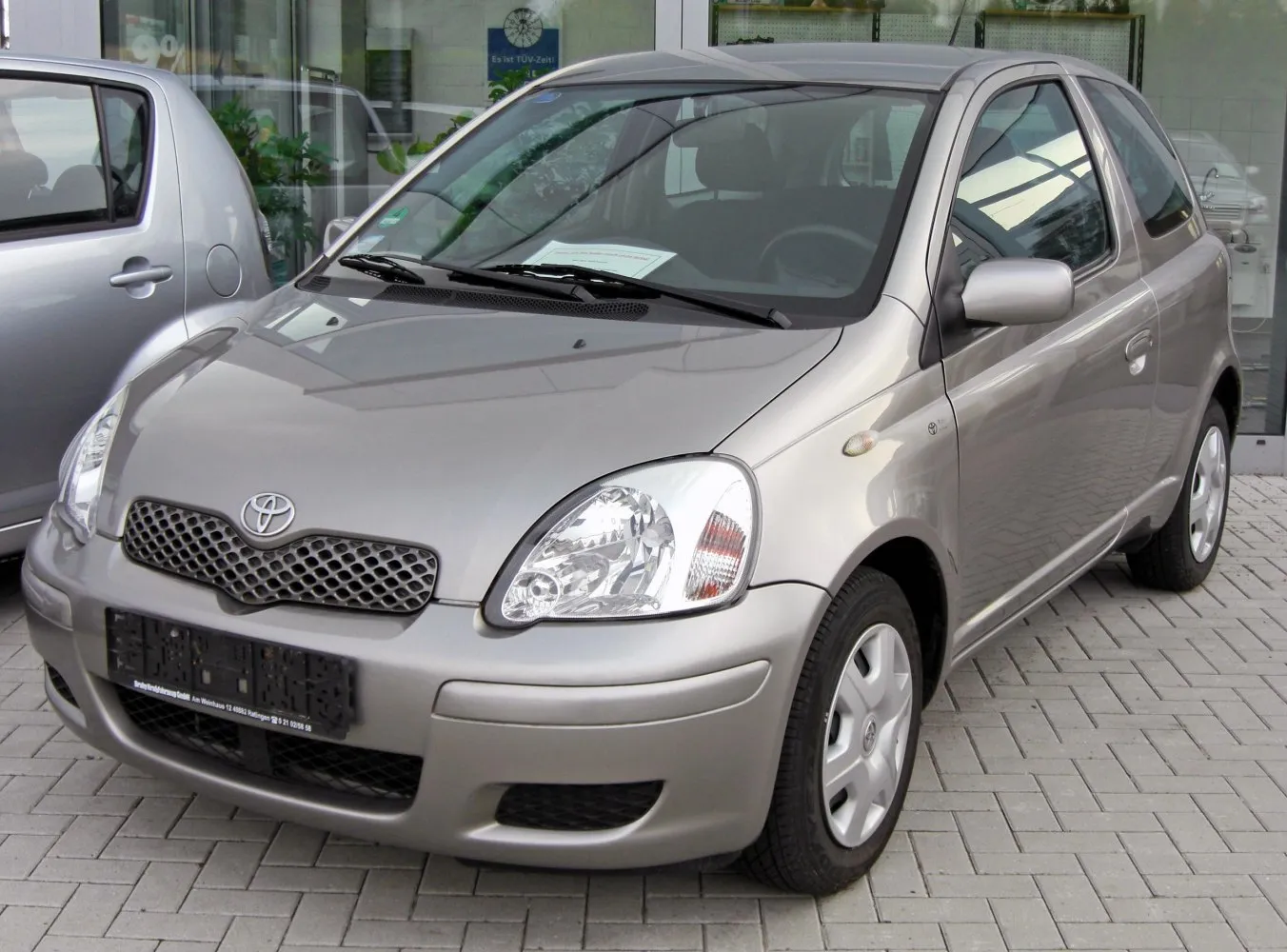

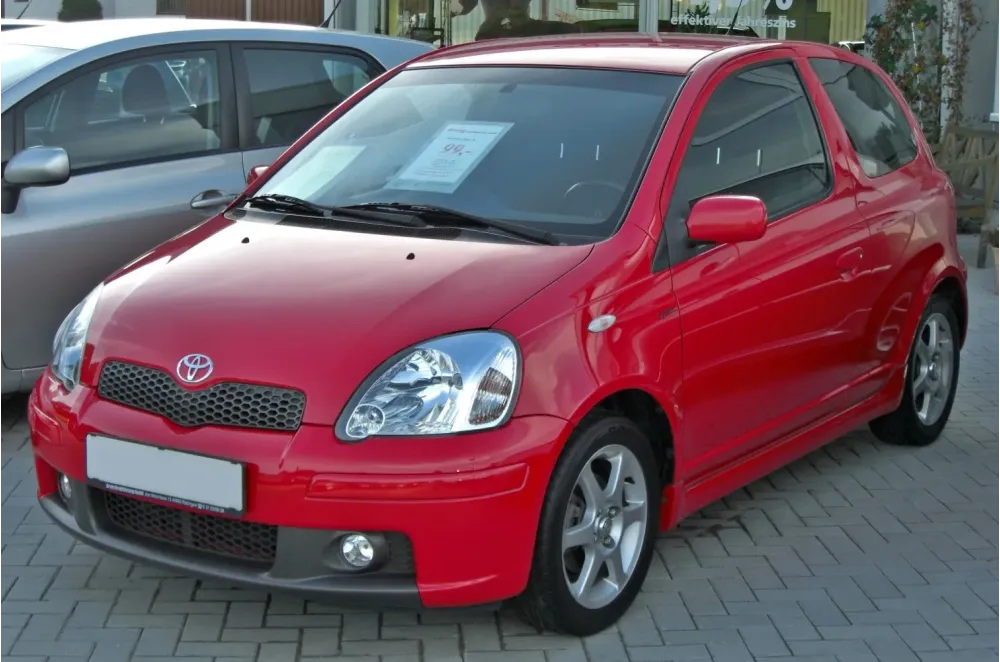

Full specifications and technical details 2003 Toyota Yaris I (facelift 2003) 3-door TS 1.5 VVT-i (105 Hp)

Overview:

What is the engine capacity of a Toyota Yaris 2003?
The engine capacity of the Toyota Yaris 2003 is 1497.

Toyota Yaris 2003 How many horsepower?
The engine power of the Toyota Yaris 2003 is 105 Hp @ 6000 rpm..

What is the Toyota Yaris 2003 engine?
Toyota Yaris 2003 engine is 1NZ-FE. (Click to see other cars using the same engine)

How much gasoline does a Toyota Yaris 2003 consume?
The Toyota Yaris 2003 consumes 6.8 liters of gasoline per 100 km

What is the recommended oil for a Toyota Yaris 2003 engine?
The recommended oil for a Toyota Yaris 2003 car engine is 5W-30 (Toyota manual: 5W-30; summer option 10W-30).

What type of camshaft transmission system is used in a Toyota Yaris 2003 engine?
Timing chain is used to transmit motion.

General:

Brand: Toyota
Model: Yaris
Generation: I (facelift 2003) 3-door
Modification (Engine): TS 1.5 VVT-i (105 Hp)
Start of production: 2003
End of production: 2005
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 3

Engine:

Power: 105 hp @ 6000 rpm.
Power per litre: 70.1 hp/l
Torque: 143 nm @ 4200 rpm.
Engine Model/Code:1NZ-FE
Engine displacement: 1497
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC, VVT-i
Engine oil capacity: 3.7 l
Coolant: 4.7 l
Engine layout: Front, Transverse
Cylinder Bore: 75 mm
Piston Stroke: 84.7 mm
Compression ratio: 10.5:1
recommended engine oil: 5W-30 (Toyota manual: 5W-30; summer option 10W-30)
oil change interval: 5000–10000 km
amount of engine oil for replacement: 3.4 l
weight (kg): 87 kg
timing drive: timing chain

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 8.7 l/100 km
Fuel consumption (economy) - extra urban: 5.7 l/100 km
Fuel consumption (economy) - combined: 6.8 l/100 km
Emission standard: Euro 4
Acceleration 0 - 100 km/h: 9 sec
Acceleration 0 - 62 mph: 9 sec
Maximum speed: 190 km/h
Weight-to-power ratio: 9 kg/Hp, 110.5 Hp/tonne
Weight-to-torque ratio: 6.6 kg/Nm, 150.5 Nm/tonne
Acceleration 0 - 60 mph: 8.6 sec

Space:

Kerb Weight (kg): 950-995
Max. weight (kg): 1410
Max load (kg): 415-460
Trunk (boot) space - maximum: 950 l
Trunk (boot) space - minimum: 205 l
Permitted trailer load with brakes (12%): 900 kg
Fuel tank capacity: 45 l
Permitted trailer load without brakes: 400 kg

dimensions:

Length: 3660 mm
Width: 1660 mm
Height: 1485 mm
wheelbase: 2370 mm
Front track: 1445 mm
Rear (Back) track: 1420 mm
Minimum turning circle (turning diameter): 10.4 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs, 255 mm
Rear brakes: Disc, 269 mm
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 185/55 R15
Wheel rims size: 5.5J x 15
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Trailing arm, Coil spring, Torsion
