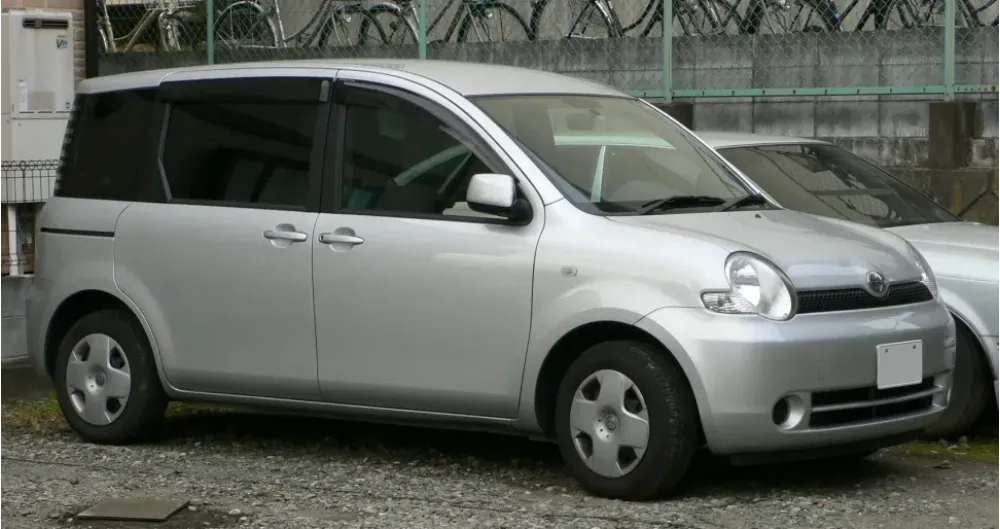

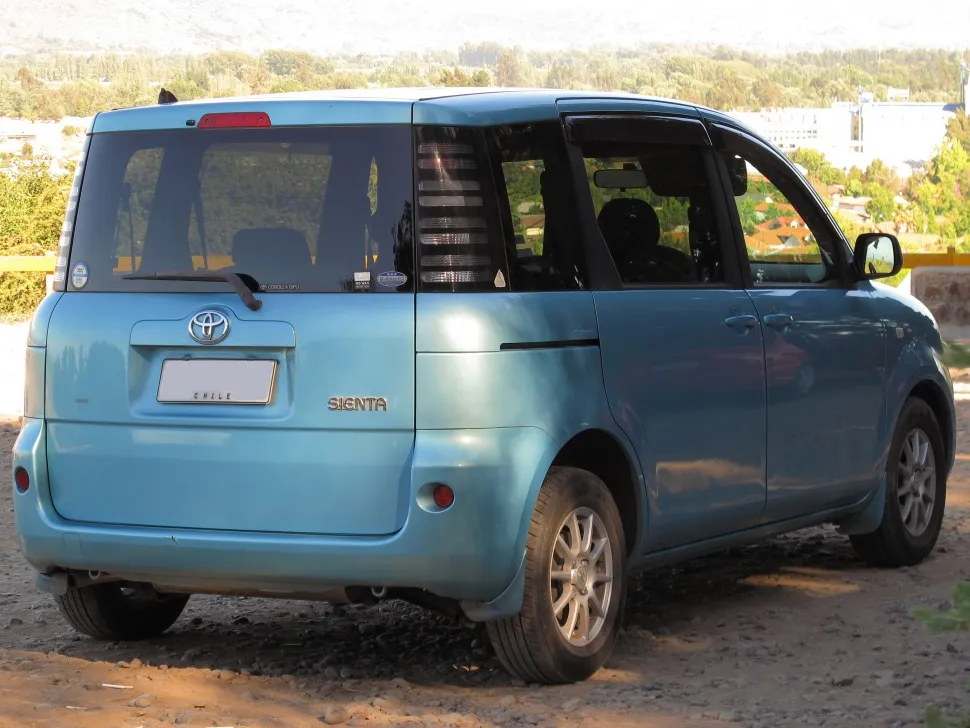

Everything you need to know about specifications and performance - Toyota Sienta I 2003 - 1.5 i (110 Hp)

Full specifications and technical details 2003 Toyota Sienta I 1.5 i (110 Hp)

Overview:

What is the engine capacity of a Toyota Sienta 2003?
The engine capacity of the Toyota Sienta 2003 is 1496.

Toyota Sienta 2003 How many horsepower?
The engine power of the Toyota Sienta 2003 is 110 Hp @ 6000 rpm..

What is the Toyota Sienta 2003 engine?
Toyota Sienta 2003 engine is 1NZ-FE. (Click to see other cars using the same engine)

What is the recommended oil for a Toyota Sienta 2003 engine?
The recommended oil for a Toyota Sienta 2003 car engine is 5W-30 (Toyota manual: 5W-30; summer option 10W-30).

What type of camshaft transmission system is used in a Toyota Sienta 2003 engine?
Timing chain is used to transmit motion.

General:

Brand: Toyota
Model: Sienta
Generation: I
Modification (Engine): 1.5 i (110 Hp)
Start of production: 2003
End of production: 2006
Powertrain Architecture: Internal Combustion Engine
Body type:Mini van
Seats: 7
Doors: 5

Engine:

Power: 110 hp @ 6000 rpm.
Power per litre: 73.5 hp/l
Torque: 143 nm @ 4200 rpm.
Engine Model/Code:1NZ-FE
Engine displacement: 1496
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 3.7 l
Coolant: 4.9 l
Engine layout: Front, Transverse
Cylinder Bore: 75 mm
Piston Stroke: 84.7 mm
Compression ratio: 10.5:1
recommended engine oil: 5W-30 (Toyota manual: 5W-30; summer option 10W-30)
oil change interval: 5000–10000 km
amount of engine oil for replacement: 3.4 l
weight (kg): 87 kg
timing drive: timing chain

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)

Space:

Fuel tank capacity: 42 l

dimensions:

Length: 4100 mm
Width: 1695 mm
Height: 1670 mm
wheelbase: 2700 mm
Front track: 1465 mm
Rear (Back) track: 1485 mm
Minimum turning circle (turning diameter): 10.4 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Front brakes: Ventilated discs
Rear brakes: Drum
Tires size: 175/70 R14
Wheel rims size: 5.5JJ x 14
