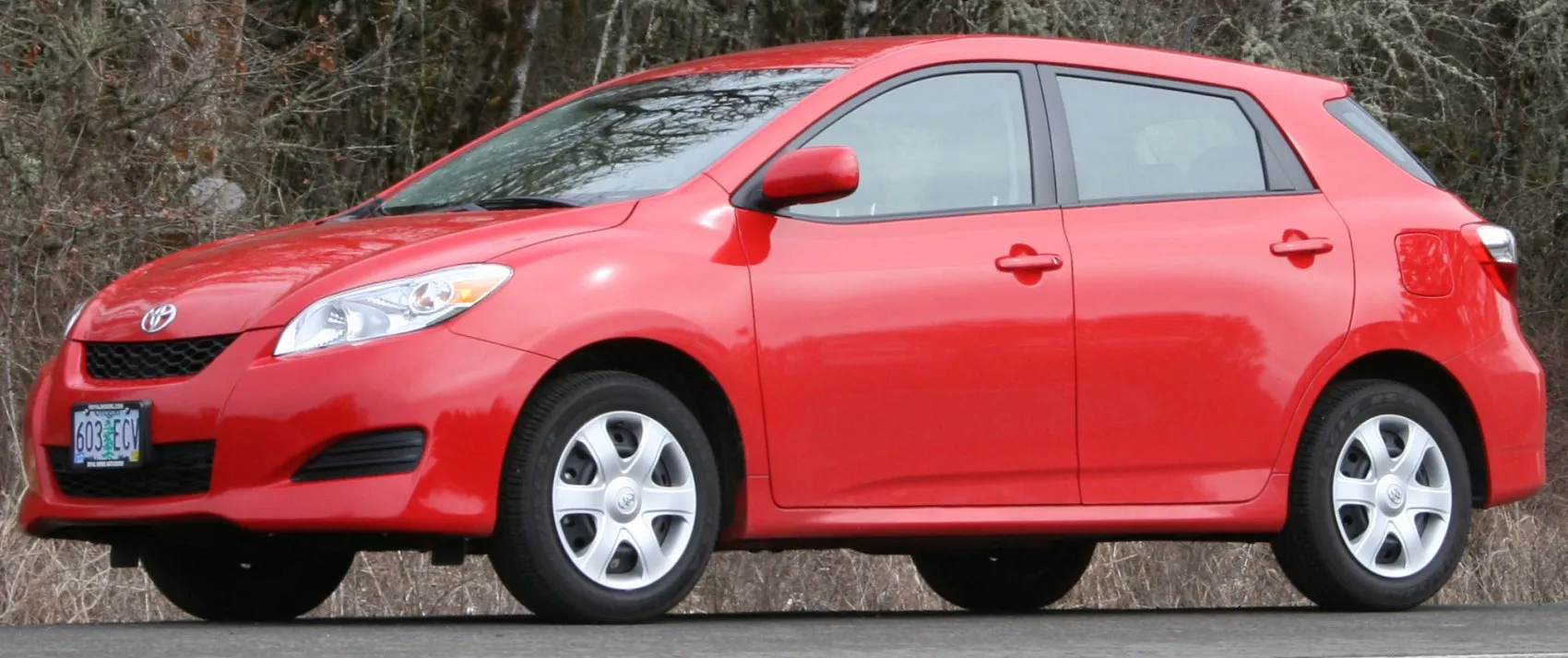

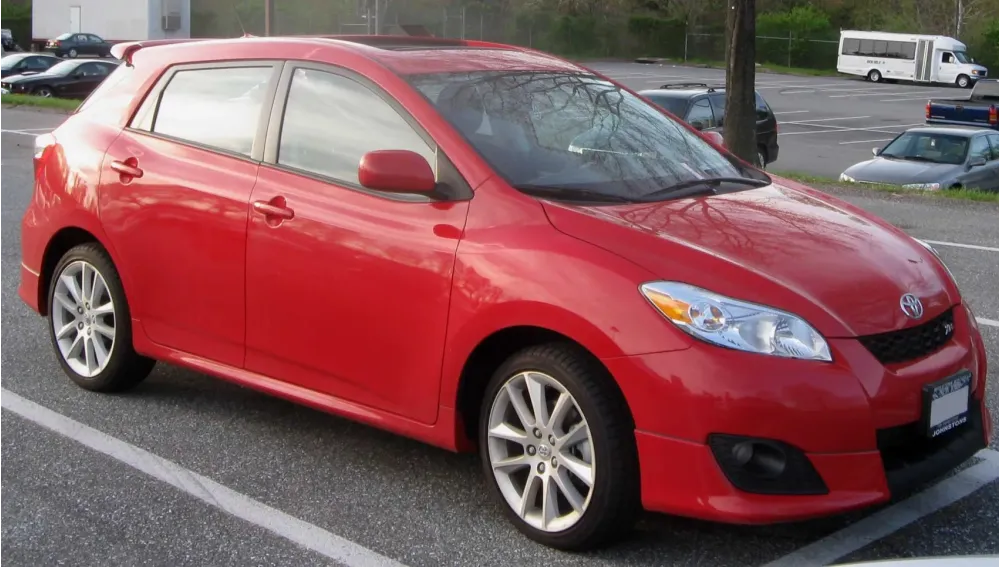

Toyota Matrix E140 S 2.4 (160 Hp) Automatic
Overall Rating
Toyota Matrix:
The Toyota Matrix, officially named Toyota Corolla Matrix, is a compact hatchback manufactured by Toyota Motor Manufacturing Canada in Cambridge, Ontario and derived from the Corolla. Introduced in 2002 as a 2003 model, the Matrix was the result of a joint venture between Toyota and General Motors, with the GM version being the Pontiac Vibe, which was assembled by New United Motor Manufacturing, Inc. in Fremont, California, United States.
The Matrix was positioned as a sporty hatchback counterpart of the North American Corolla and was counted as a variant of it in Toyota's sales figures....(Read more on Wikipedia)
E140 Overview:
Toyota Matrix (E140). With 225 Nm of torque, it offers ample pulling power. With a weight of 1383 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. A compact car with a rear door that swings upward to provide access to the cargo area. Seating for 5 makes it ideal for daily use.
The Toyota Matrix E140 was primarily a North American market vehicle and was not tested by Euro NCAP. However, it performed well in US crash tests, with the IIHS rating it 'Good' in several categories and NHTSA giving it high star ratings for frontal and side impacts.
S 2.4 (160 Hp) Automatic Verdict:
Performance Verdict
Offers robust acceleration for a compact hatchback, making highway merging and passing confident. The automatic transmission is smooth but can feel a bit sluggish under hard acceleration.
Fuel Economy
Fuel economy is mediocre, especially in urban driving, reflecting its larger displacement compared to competitors in the segment.
Pros and Cons:
Pros:
- • Exceptional Toyota reliability and low maintenance costs
- • Highly practical and versatile hatchback design with ample cargo space
- • Available All-Wheel Drive (AWD) enhances all-weather capability
- • Comfortable ride quality suitable for daily commuting
- • Good resale value due to brand reputation
Cons:
- • Interior design can feel uninspired and utilitarian
- • 2.4L engine options are not particularly fuel-efficient, especially with AWD
- • Driving dynamics are competent but lack sportiness or engagement
- • Road noise can be noticeable at highway speeds
- • Base 1.8L engine can feel underpowered when fully loaded
Specifications:

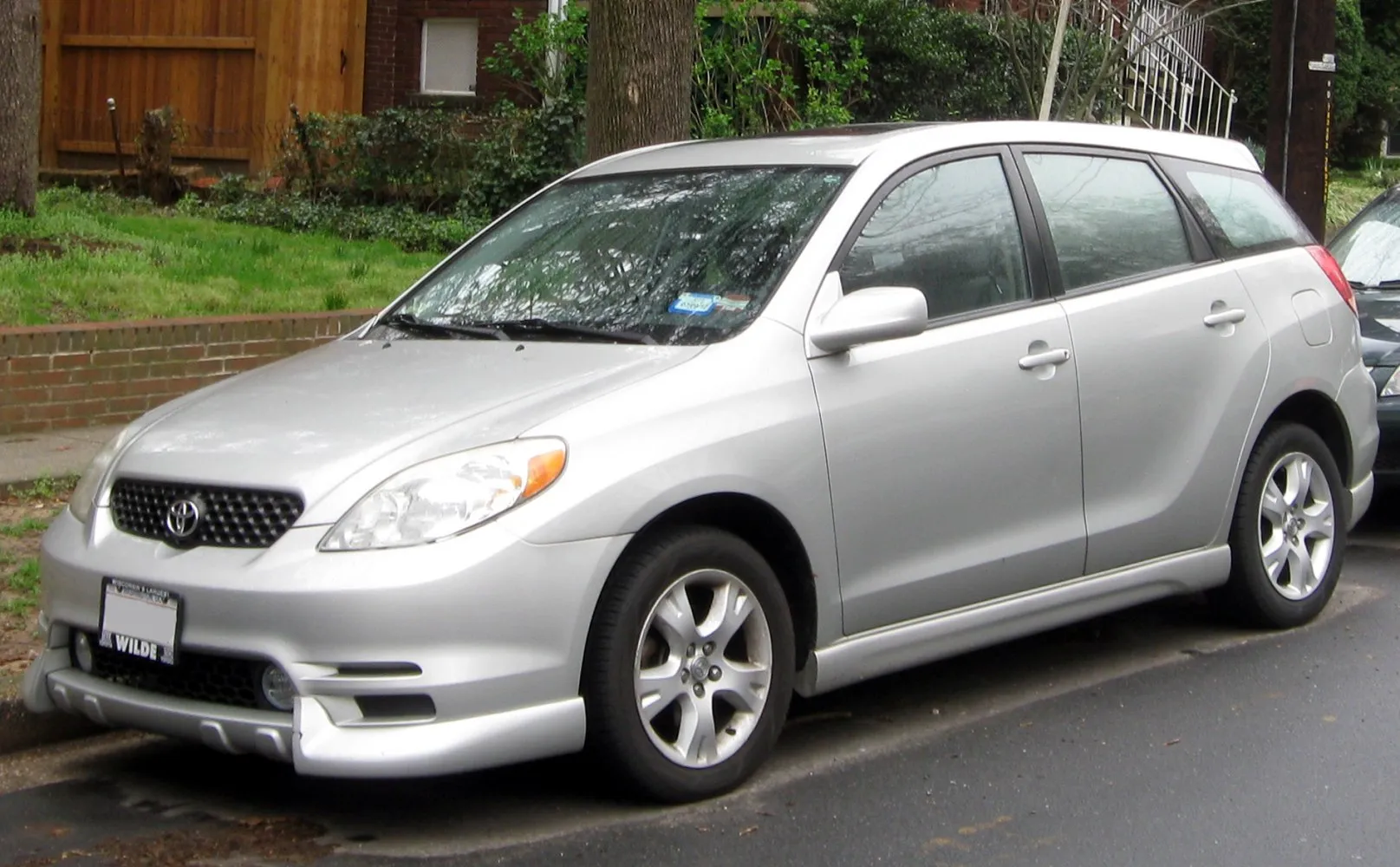

Specifications are compared to those of the previous generation(E130: 2002 - 2007).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | Matrix |
| Generation: | E140 |
| Modification (Engine): | S 2.4 (160 Hp) Automatic |
| Start of production: | 2008 |
| End of production: | 2014 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Hatchback |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 160 Hp @ 5600 rpm. Same horsepower |
| Power per litre: | 67.7 Hp/l [44mm more] |
| Torque: | 225 Nm @ 4000 rpm. |
| Engine Model/Code: | 2AZ-FE More details about the engine 2AZ-FE |
| Engine displacement: | 2362 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC, VVT-i |
| Engine oil capacity: | 3.8 l |
| Coolant: | 5.7 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 88.5 mm |
| Piston Stroke: | 96 mm |
| Compression ratio: | 9.6:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 13.5 l/100 km |
| Fuel consumption (economy) - extra urban: | 9.7 l/100 km |
| Weight-to-power ratio: | 8.6 kg/Hp, 115.7 Hp/tonne |
| Weight-to-torque ratio: | 6.1 kg/Nm, 162.7 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1383 |
| Trunk (boot) space - maximum: | 1398 l |
| Trunk (boot) space - minimum: | 560 l |
| Fuel tank capacity: | 50 l |
| Size: | |
|---|---|
| Length: | 4394 mm [44mm more] |
| Width: | 1765 mm [10mm less] |
| Height: | 1549 mm [9mm more] |
| Wheelbase: | 2601 mm [1mm more] |
| Front track: | 1519 mm |
| Rear (Back) track: | 1521 mm |
| Ride height (ground clearance): | 135 mm |
| Minimum turning circle (turning diameter): | 10.8 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 5 |
| Transmission type | Automatic |
| Front brakes | Disc, 295 mm [above average] |
| Rear brakes | Disc, 277 mm [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 205/55 R16 89H |
| Wheel rims size | 16 |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Torsion |
