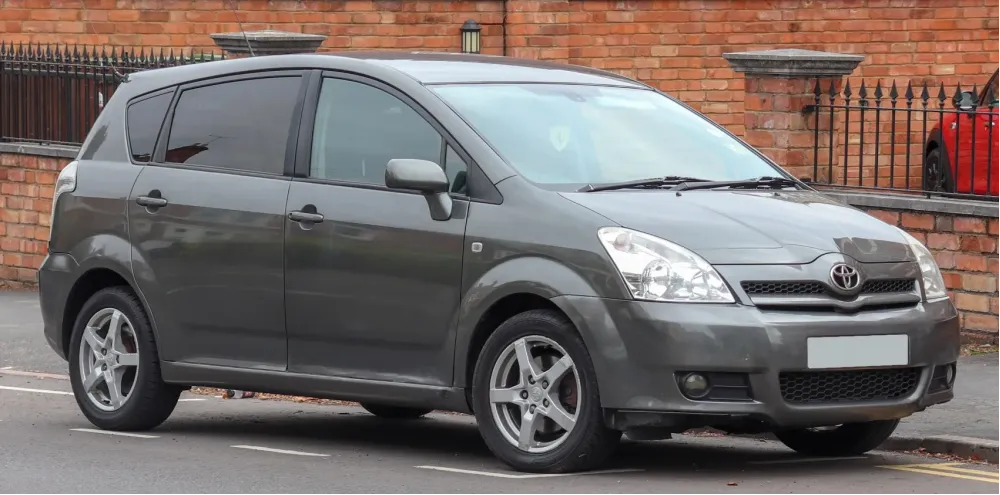

Toyota Corolla Verso II (AR10) 2.2 D-4D (136 Hp)
Overall Rating
Toyota Corolla Verso:
The Toyota Corolla Verso is a car produced by the Japanese carmaker Toyota between 2001 and 2010. A compact MPV, the first-generation Corolla Verso sold in Toyota Motor Europe was a rebadged Japanese domestic market second-generation Corolla Spacio , which was first released in Japan in May 2001. The second-generation model became a separate model in March 2004, based on the second-generation Avensis , until production ceased in February 2010, and production of its replacement, the Verso, began....(Read more on Wikipedia)
II (AR10) Overview:
Toyota Corolla Verso (II (AR10)). With 310 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~8 l/100km). With a weight of 1495 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 9.4 s). The top speed reaches 195 km/h. A multi-purpose vehicle designed to transport passengers with ample interior space. Seating for 5 makes it ideal for daily use.
2.2 D-4D (136 Hp) Verdict:
Performance Verdict
A strong performer with excellent acceleration for an MPV, providing confident overtaking and comfortable cruising.
Fuel Economy
Very good fuel economy for its power output, making it an efficient choice for regular long-distance travel.
Pros and Cons:
Pros:
- • Excellent reliability and build quality typical of Toyota
- • Versatile and spacious interior, especially 7-seat options
- • Strong Euro NCAP safety rating for its time
- • Range of efficient and powerful diesel engines
- • Comfortable ride for long journeys
Cons:
- • Petrol engines can feel underpowered, particularly the 1.6 VVT-i
- • Styling is somewhat conservative and lacks flair
- • Rear suspension can be firm on rougher roads
- • Some interior plastics feel basic compared to rivals
- • Limited automatic transmission options
Specifications:
Specifications are compared to those of the previous generation(II (AR10): 2004 - 2007).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | Corolla Verso |
| Generation: | II (AR10) |
| Modification (Engine): | 2.2 D-4D (136 Hp) |
| Start of production: | 2005 |
| End of production: | 2007 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | MPV |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 136 Hp @ 3600 rpm. Same horsepower |
| Power per litre: | 61 Hp/l [Same length.] |
| Torque: | 310 Nm @ 2000-2800 rpm. |
| Engine Model/Code: | 2AD-FTV More details about the engine 2AD-FTV |
| Engine displacement: | 2231 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Diesel Commonrail |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | DOHC |
| Engine oil capacity: | 5.9 l |
| Coolant: | 7.4 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 86 mm |
| Piston Stroke: | 96 mm |
| Compression ratio: | 16.9:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 8 l/100 km |
| Fuel consumption (economy) - extra urban: | 5.3 l/100 km |
| Fuel consumption (economy) - combined (NEDC): | 6.3 l/100 km |
| Fuel consumption (economy) - urban (NEDC): | 8 l/100 km |
| Fuel consumption (economy) - extra urban (NEDC): | 5.3 l/100 km |
| Fuel consumption (economy) - combined: | 6.3 l/100 km |
| Emission standard: | Euro 4 |
| Acceleration 0 - 100 km/h: | 9.4 sec |
| Acceleration 0 - 62 mph: | 9.4 sec |
| Maximum speed: | 195 km/h |
| Weight-to-power ratio: | 11 kg/Hp, 91 Hp/tonne |
| Weight-to-torque ratio: | 4.8 kg/Nm, 207.4 Nm/tonne |
| Acceleration 0 - 60 mph: | 8.9 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1495 |
| Max. weight: | 2160 |
| Max load: | 665 |
| Trunk (boot) space - maximum: | 1563 l |
| Trunk (boot) space - minimum: | 423 l |
| Permitted trailer load with brakes (12%): | 1300 kg |
| Fuel tank capacity: | 55 l |
| Permitted trailer load without brakes: | 450 kg |
| Size: | |
|---|---|
| Length: | 4360 mm [Same length.] |
| Width: | 1770 mm [Same width.] |
| Height: | 1620 mm [Same height.] |
| Wheelbase: | 2750 mm [Same wheelbase.] |
| Front track: | 1505 mm |
| Rear (Back) track: | 1495 mm |
| Front overhang: | 870 mm |
| Rear overhang: | 740 mm |
| Minimum turning circle (turning diameter): | 11.6 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 6 |
| Transmission type | Manual |
| Front brakes | Ventilated discs, 295 mm [Best for performance and cooling.] |
| Rear brakes | Disc, 290 mm [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/55 R16 |
| Wheel rims size | 6.5J x 16 |
| Front suspension | Independent type McPherson, Transverse stabilizer |
| Rear suspension | Transverse stabilizer, Torsion |
