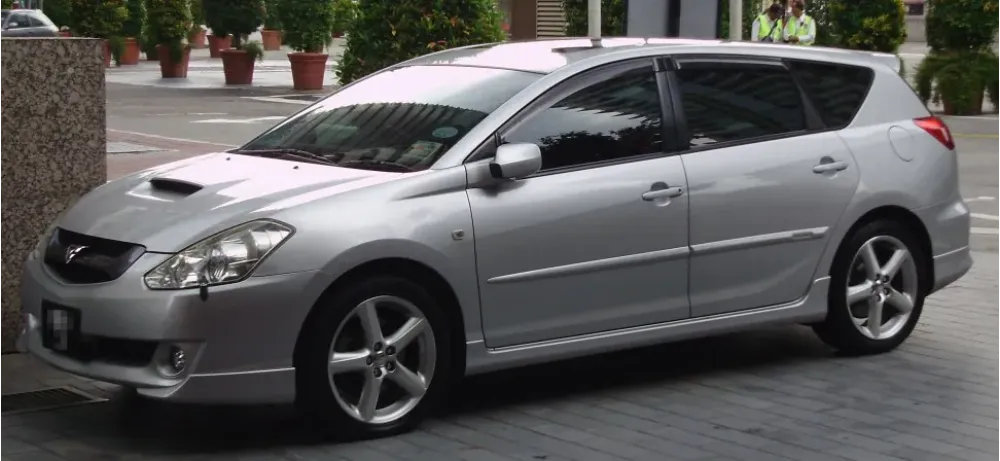

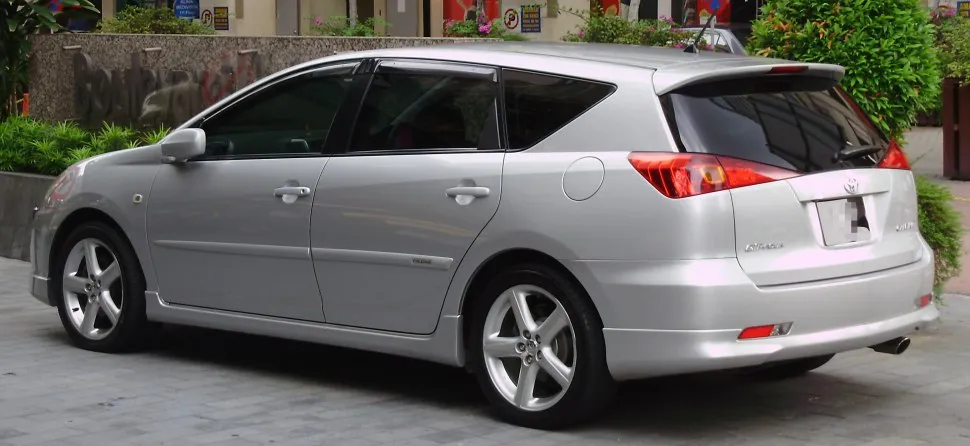

Toyota Caldina T24 2.0i GT-FOUR (260 Hp)
Overall Rating
Toyota Caldina:
The Toyota Caldina is an automobile manufactured by Toyota for the Japanese market from 1992 to 2007. It replaced the Corona and Carina wagons, and was sold at Toyota Store and Toyopet Store locations in Japan. While cars bearing the Caldina nameplate have never been officially exported by Toyota, its available 4WD capability and large capacity have made it a popular grey import in Australia, New Zealand, Russia and many South American countries. When it was discontinued in 2007, the T270 series Avensis wagon/estate assumed its market position....(Read more on Wikipedia)
T24 Overview:
Toyota Caldina (T24). With 324 Nm of torque, it offers ample pulling power. Weighing only 1240 kg, it’s quite light. All‑wheel drive provides excellent grip, ideal for off‑road use. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
The Toyota Caldina T24 was primarily a Japanese Domestic Market (JDM) vehicle and was not officially tested by Euro NCAP. Therefore, specific safety ratings from this organization are not available.
2.0i GT-FOUR (260 Hp) Verdict:
Performance Verdict
Exceptional performance for a wagon, thanks to the legendary 3S-GTE turbo engine and AWD. Offers thrilling acceleration and dynamic handling, reminiscent of rally heritage.
Fuel Economy
Fuel economy is a significant compromise due to its high-performance nature, turbocharger, and all-wheel-drive system. Expect higher running costs.
Pros and Cons:
Pros:
- • Exceptional performance from GT-FOUR variant (3S-GTE engine)
- • High reliability across the range (typical Toyota)
- • Practical and versatile station wagon body style
- • Good build quality and comfortable ride
- • All-wheel-drive options for enhanced traction
Cons:
- • Primarily a JDM vehicle, parts and servicing can be challenging outside Japan
- • GT-FOUR fuel economy is poor
- • Interior design can feel dated compared to contemporary European rivals
- • Limited official safety ratings (no Euro NCAP)
- • Base engines can feel underpowered for spirited driving
Specifications:
Specifications are compared to those of the previous generation(T21: 1997 - 2002).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | Caldina |
| Generation: | T24 |
| Modification (Engine): | 2.0i GT-FOUR (260 Hp) |
| Start of production: | 2002 |
| End of production: | 2007 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 260 Hp @ 6200 rpm. Same horsepower |
| Power per litre: | 130.1 Hp/l [60mm less] |
| Torque: | 324 Nm @ 4400 rpm. |
| Engine Model/Code: | 3S-GTE More details about the engine 3S-GTE |
| Engine displacement: | 1998 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Direct injection |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | DOHC |
| Engine oil capacity: | 4.5 l |
| Coolant: | 7.1 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 86 mm mm |
| Piston Stroke: | 86 mm mm |
| Compression ratio: | 9:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Weight-to-power ratio: | 4.8 kg/Hp, 209.7 Hp/tonne |
| Weight-to-torque ratio: | 3.8 kg/Nm, 261.3 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1240 |
| Fuel tank capacity: | 60 l |
| Size: | |
|---|---|
| Length: | 4510 mm mm [60mm less] |
| Width: | 1740 mm mm [45mm more] |
| Height: | 1445 mm mm [30mm less] |
| Wheelbase: | 2700 mm mm [120mm more] |
| Front track: | 1505 mm |
| Rear (Back) track: | 1500 mm |
| Minimum turning circle (turning diameter): | 10.8 m [above average] |
| Powertrain: | |
|---|---|
| Drive wheel | All wheel drive (4x4) |
| Number of gears | 4 |
| Transmission type | Automatic |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Tires size | 195/65 R15 |
