Everything you need to know about specifications and performance - Peugeot 406 1999 - 2.0 HDI (109 Hp)

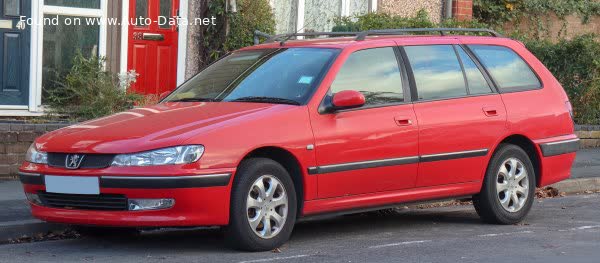

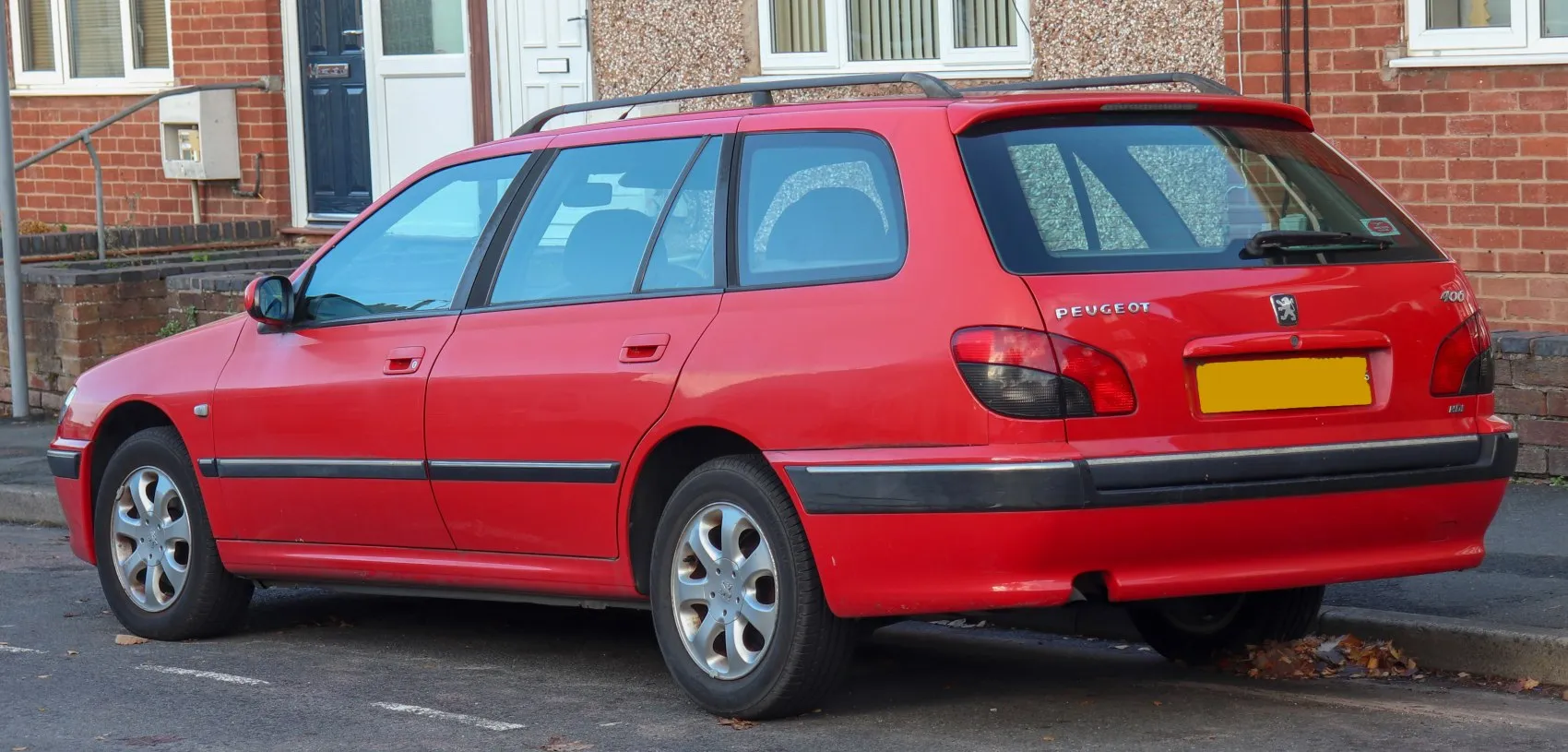

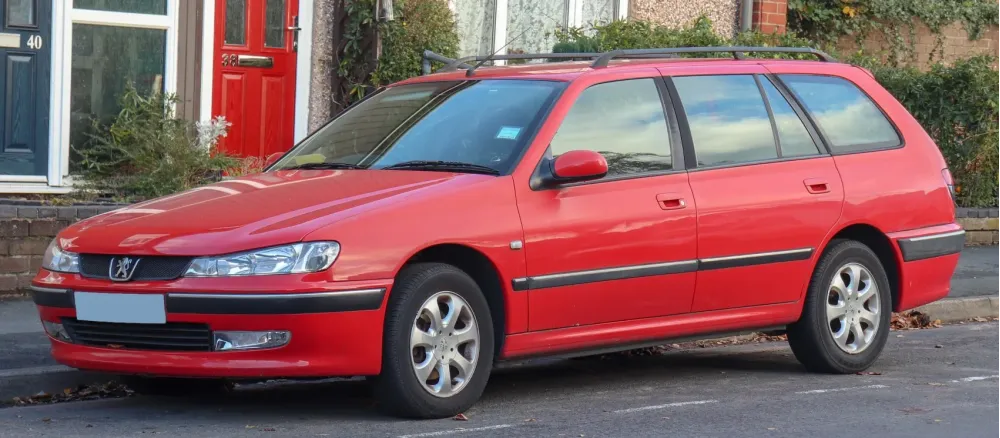

Full specifications and technical details 1999 Peugeot 406 Break (Phase II, 1999) 2.0 HDI (109 Hp)

Overview:

What is the engine capacity of a Peugeot 406 1999?
The engine capacity of the Peugeot 406 1999 is 1997.

Peugeot 406 1999 How many horsepower?
The engine power of the Peugeot 406 1999 is 109 Hp @ 4000 rpm..

What is the Peugeot 406 1999 engine?
Peugeot 406 1999 engine is RHZ DW10ATED. (Click to see other cars using the same engine)

General:

Brand: Peugeot
Model: 406
Generation: Break (Phase II, 1999)
Modification (Engine): 2.0 HDI (109 Hp)
Start of production: 1999
End of production: 2004
Powertrain Architecture: Internal Combustion Engine
Body type:Station wagon
Seats: 5
Doors: 5

Engine:

Power: 109 hp @ 4000 rpm.
Power per litre: 54.6 hp/l
Torque: 250 nm @ 1750 rpm.
Engine Model/Code:RHZ DW10ATED
Engine displacement: 1997
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 2
Fuel injection system: Diesel Commonrail
Engine aspiration: Turbocharger, Intercooler
Valvetrain: OHC
Engine oil capacity: 4.5 l
Coolant: 9 l
Engine layout: Front, Transverse
Cylinder Bore: 85 mm
Piston Stroke: 88 mm
Compression ratio: 18:1

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 7.5 l/100 km
Fuel consumption (economy) - extra urban: 4.7 l/100 km
Acceleration 0 - 100 km/h: 12.8 sec
Acceleration 0 - 62 mph: 12.8 sec
Maximum speed: 185 km/h
Weight-to-power ratio: 13.4 kg/Hp, 74.7 Hp/tonne
Weight-to-torque ratio: 5.8 kg/Nm, 171.2 Nm/tonne
Acceleration 0 - 60 mph: 12.2 sec

Space:

Kerb Weight (kg): 1460
Max. weight (kg): 2075
Max load (kg): 615
Trunk (boot) space - maximum: 1740 l
Trunk (boot) space - minimum: 526 l
Fuel tank capacity: 70 l

dimensions:

Length: 4736 mm
Width: 1760 mm
Height: 1502 mm
wheelbase: 2700 mm
Front track: 1500 mm
Rear (Back) track: 1480 mm
Minimum turning circle (turning diameter): 11.95 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 195/65 R15
Wheel rims size: 15
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Independent multi-link Spring suspension with stabilizer
