Everything you need to know about specifications and performance - Hyundai Sonata 1996 - 2.0i 16V (139 Hp)

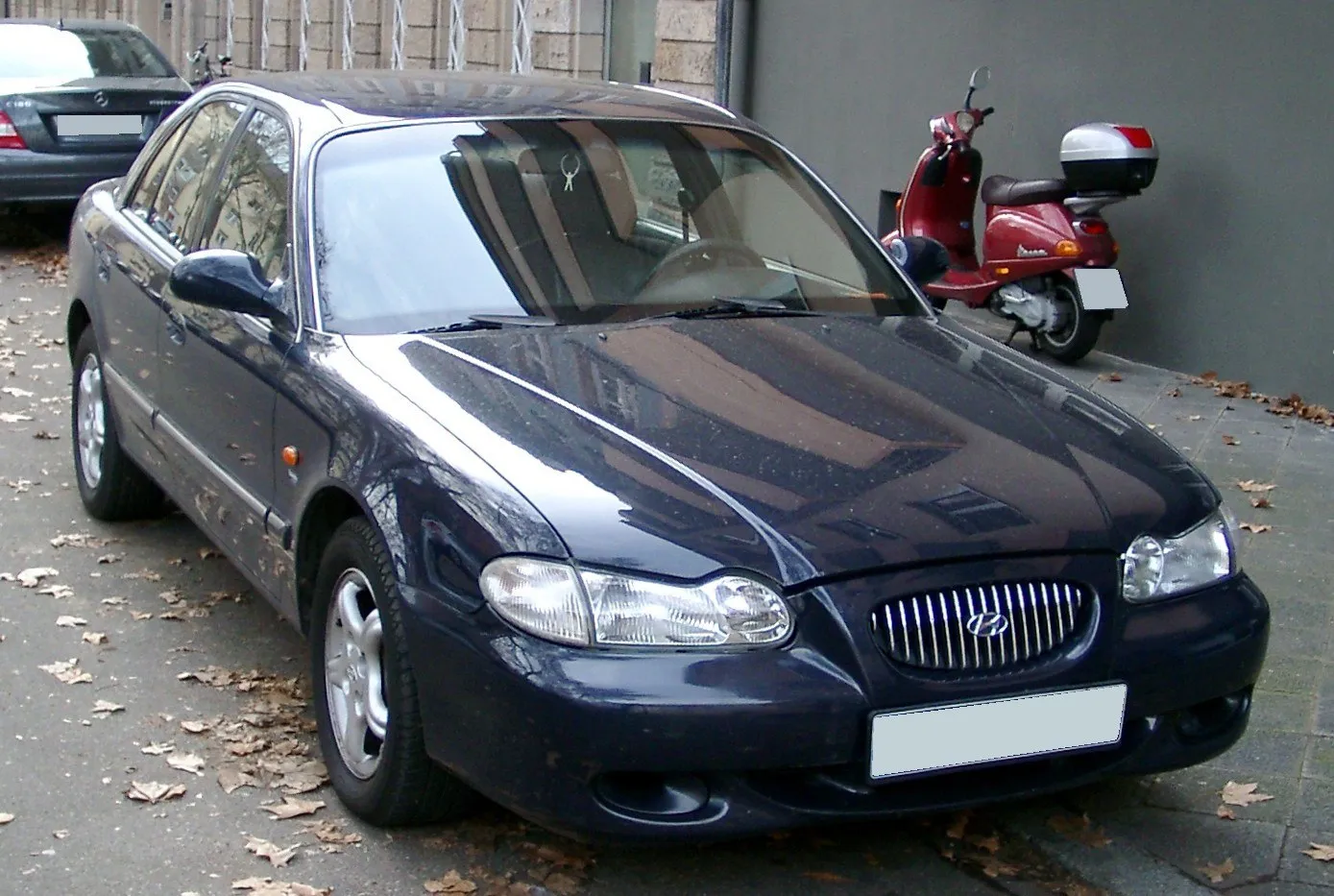

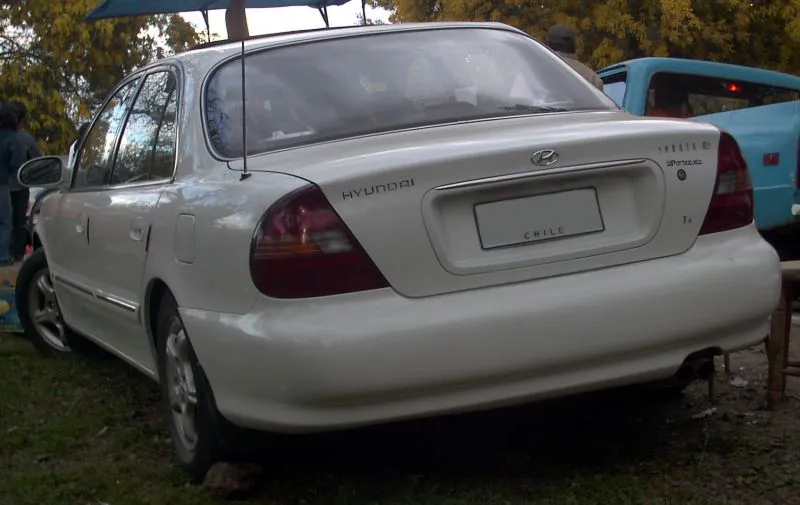

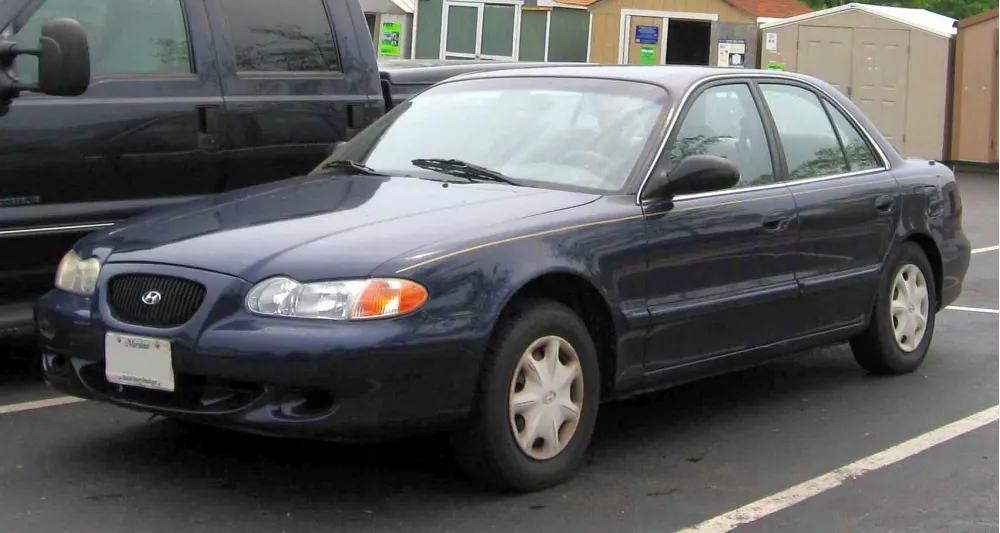

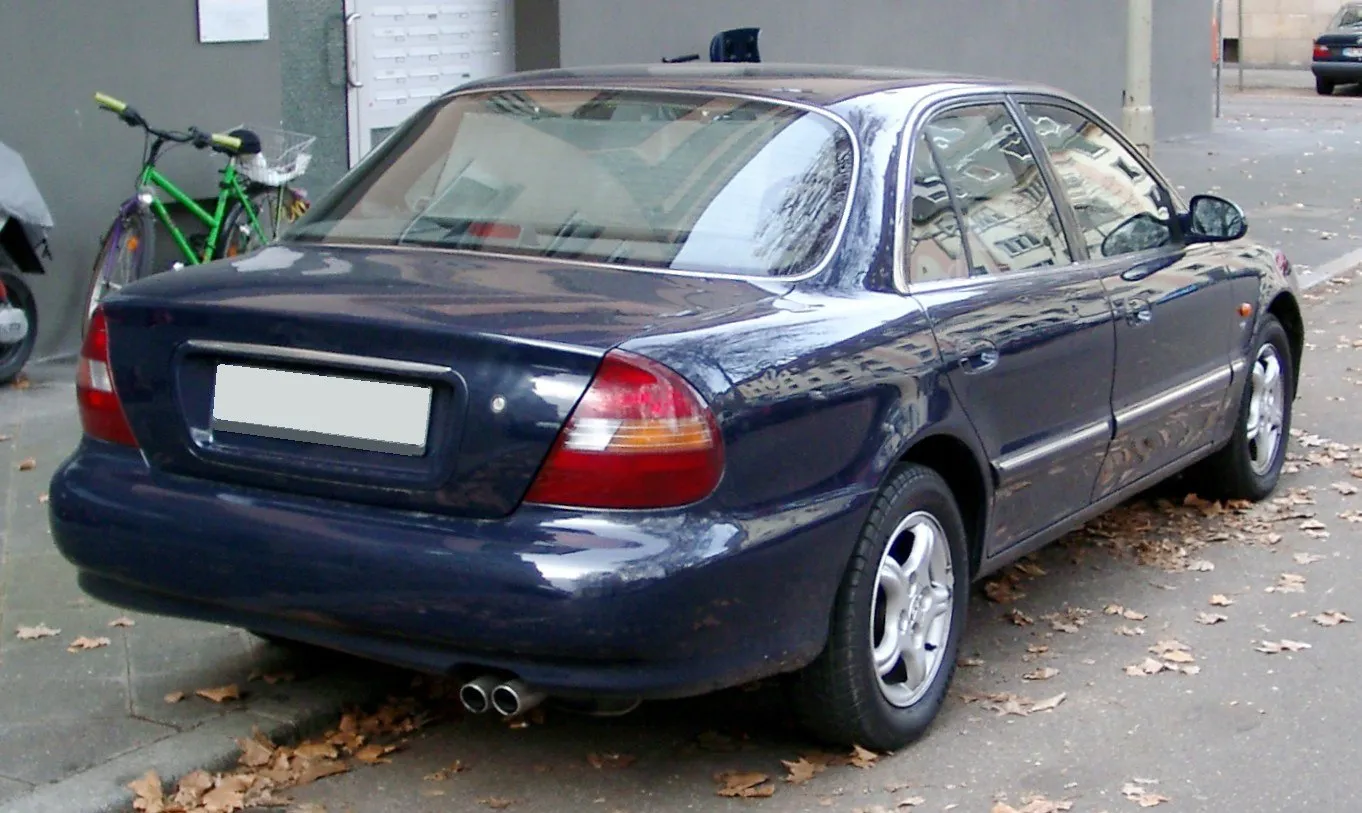

Full specifications and technical details 1996 Hyundai Sonata III (Y3, facelift 1996) 2.0i 16V (139 Hp)

Overview:

What is the engine capacity of a Hyundai Sonata 1996?
The engine capacity of the Hyundai Sonata 1996 is 1997.

Hyundai Sonata 1996 How many horsepower?
The engine power of the Hyundai Sonata 1996 is 139 Hp @ 6000 rpm..

What is the Hyundai Sonata 1996 engine?
Hyundai Sonata 1996 engine is Sirius / G4CP. (Click to see other cars using the same engine)

General:

Brand: Hyundai
Model: Sonata
Generation: III (Y3, facelift 1996)
Modification (Engine): 2.0i 16V (139 Hp)
Start of production: 1996
End of production: 1998
Powertrain Architecture: Internal Combustion Engine
Body type:Sedan
Seats: 5
Doors: 4

Engine:

Power: 139 hp @ 6000 rpm.
Power per litre: 69.6 hp/l
Torque: 180 nm @ 4000 rpm.
Engine Model/Code:Sirius / G4CP
Engine displacement: 1997
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 4.4 l
Engine layout: Front, Transverse
Cylinder Bore: 85 mm
Piston Stroke: 88 mm
Compression ratio: 9:1

Performance:

Fuel Type: Petrol (Gasoline)
Weight-to-power ratio: 9.7 kg/Hp, 103 Hp/tonne
Weight-to-torque ratio: 7.5 kg/Nm, 133.3 Nm/tonne

Space:

Kerb Weight (kg): 1350
Trunk (boot) space - minimum: 373 l
Fuel tank capacity: 65 l

dimensions:

Length: 4700 mm
Width: 1770 mm
Height: 1405 mm
wheelbase: 2700 mm
Front track: 1520 mm
Rear (Back) track: 1510 mm
Ride height (ground clearance): 170 mm
Minimum turning circle (turning diameter): 10.5 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Ventilated discs
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 195/70 R14
Wheel rims size: 14
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Independent multi-link suspension
