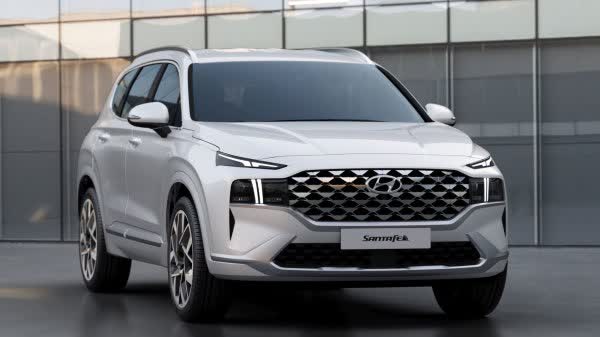

Hyundai Santa Fe IV (TM, facelift 2020) 1.6 Smartstream (237 Hp) HEV HTRAC AWD Automatic
People\'s Opinion
N/A / 5
Hyundai Santa Fe:
The Hyundai Santa Fe is a series of crossover SUVs produced across five generations by the South Korean manufacturer Hyundai since 2000. It is named after the city of Santa Fe, New Mexico, and was introduced for the 2001 model year as Hyundai's first SUV. The Santa Fe was a milestone in the company's restructuring program of the late 1990s because the SUV was a hit with American buyers.
The Santa Fe was initially marketed as a compact crossover SUV in its first-generation. After the Tucson was introduced in 2004, marketed under that same class, the Santa Fe was later repositioned into the mid-size crossover SUV class since its second-generation launched in 2005. Through all generations, the Santa Fe has been offered in either front-wheel drive or all-wheel drive....(Read more on Wikipedia)
IV (TM, facelift 2020) Overview:
Hyundai Santa Fe (IV (TM, facelift 2020)). With 264 Nm of torque, it offers ample pulling power. With a weight of 1907 kg, it falls in the mid‑range. All‑wheel drive provides excellent grip, ideal for off‑road use. A sport utility vehicle offering higher ground clearance and versatile cargo space. Seating for 5 makes it ideal for daily use.
Performance Verdict
Offers a strong blend of power and efficiency, with the electric motor providing instant torque for smooth acceleration, especially with AWD.
Fuel Economy
Very respectable fuel economy for an AWD SUV of this size, thanks to its full hybrid system.
Best Use Case:
Mixed driving, suitable for both city commutes and longer highway journeys, with added confidence of AWD.
Pros and Cons:
Pros:
- • Spacious and comfortable interior, especially for long journeys
- • Diverse and efficient powertrain options, including strong hybrids and diesels
- • Extensive suite of advanced safety features and driver assistance systems
- • Modern infotainment system with large screens and connectivity options
- • Refined ride quality and good noise insulation
Cons:
- • Some lower trims might feel less premium in interior materials
- • Third-row seating can be cramped for adults on longer trips
- • V6 petrol engine options can be thirsty compared to hybrids
- • DCT gearbox can sometimes be hesitant at low speeds (on specific trims)
- • Exterior styling, while refreshed, might not appeal to everyone
Specifications:
Specifications are compared to those of the previous generation(IV (TM, facelift 2020): November, 2020 - August, 2023).
| General: |
| Brand: | Hyundai |
|---|
| Model: | Santa Fe |
|---|
| Generation: | IV (TM, facelift 2020) |
|---|
| Modification (Engine): | 1.6 Smartstream (237 Hp) HEV HTRAC AWD Automatic |
|---|
| Start of production: | October, 2020 |
|---|
| End of production: | August, 2023 |
|---|
| Powertrain Architecture: | FHEV (Full Hybrid Electric Vehicle) |
|---|
| Body type: | SUV |
|---|
| Seats: | 5 |
|---|
| Doors: | 5 |
|---|
| Engine: |
| Engine systems: | Start & Stop System |
|---|
| Power: | 178 Hp @ 6000 rpm. |
|---|
| Power per litre: | 111.4 Hp/l |
|---|
| Torque: | 264 Nm @ 4000 rpm. |
|---|
| Engine Model/Code: | Smartstream / G4FP [Same engine] More details about the engine Smartstream / G4FP |
|---|
| Engine displacement: | 1598 |
|---|
| Number of cylinders: | 4 |
|---|
| Engine configuration: | Inline |
|---|
| Number of valves per cylinder: | 4 |
|---|
| Fuel injection system: | Direct injection |
|---|
| Engine aspiration: | Turbocharger, Intercooler |
|---|
| Valvetrain: | DOHC |
|---|
| Engine oil capacity: | 4.8 l |
|---|
| Coolant: | 4.69 l |
|---|
| Engine layout: | Front, Transverse |
|---|
| Cylinder Bore: | 75.59 mm mm |
|---|
| Piston Stroke: | 89 mm mm |
|---|
| Compression ratio: | 10.5:1 |
|---|
| Performance: |
| Fuel Type: | Petrol (Gasoline) |
|---|
| Emission standard: | ULEV70 |
|---|
| Weight-to-power ratio: | 8 kg/Hp, 124.3 Hp/tonne |
|---|
| Weight-to-torque ratio: | 7.2 kg/Nm, 138.4 Nm/tonne |
|---|
| Space: |
| Kerb Weight: | 1907 |
|---|
| Max. weight: | 2530 |
|---|
| Max. roof load: | 100 kg |
|---|
| Max load: | 623 |
|---|
| Trunk (boot) space - maximum: | 2042 l |
|---|
| Trunk (boot) space - minimum: | 1031 l |
|---|
| Permitted trailer load with brakes (12%): | 907 kg |
|---|
| Fuel tank capacity: | 67 l |
|---|
| Permitted trailer load without brakes: | 748 kg |
|---|
| Size: |
| Length: | 4785 mm mm [Same length.] |
|---|
| Width: | 1900 mm mm [Same width.] |
|---|
| Height: | 1709 mm mm [24mm more] |
|---|
| Wheelbase: | 2766 mm mm [1mm more] |
|---|
| Front track: | 1646-1651 mm |
|---|
| Rear (Back) track: | 1656-1661 mm |
|---|
| Front overhang: | 945 mm |
|---|
| Rear overhang: | 1074 mm |
|---|
| Ride height (ground clearance): | 208 mm |
|---|
| Minimum turning circle (turning diameter): | 11.4 m [above average] |
|---|
| Powertrain: |
| Drivetrain Architecture | The Internal combustion engine (ICE) and the electric motor permanently drive the front wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the rear wheels |
|---|
| Drive wheel | All wheel drive (4x4) |
|---|
| Number of gears | 6 |
|---|
| Transmission type | Automatic |
|---|
| Front brakes | Ventilated discs, 325.12 mm [Best for performance and cooling.] |
|---|
| Rear brakes | Disc, 304.8 mm [above average] |
|---|
| Assisting systems | ABS (Anti-lock braking system) |
|---|
| Steering type | Steering rack and pinion |
|---|
| Power steering | Electric Steering |
|---|
| Tires size | 235/65 R17; 235/55 R19 |
|---|
| Wheel rims size | 7J x 17; 7.5J x 19 |
|---|
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
|---|
| Rear suspension | Independent multi-link spring suspension with stabilizer |
|---|
| Electric: |
| Gross battery capacity: | 1.49 kWh |
|---|
| Battery technology: | Lithium-polymer (LiPo) |
|---|
| System power: | 237 Hp |
|---|
| Electric motor power: | 59 Hp @ 1600-2000 rpm. |
|---|
| Electric motor Torque: | 264 Nm @ 0-1600 rpm. |
|---|
| Electric motor type: | Synchronous |
|---|
| Battery voltage: | 270 V |
|---|
