Everything you need to know about specifications and performance - Fiat Panda 2003 - 1.2 MPI (60 Hp)

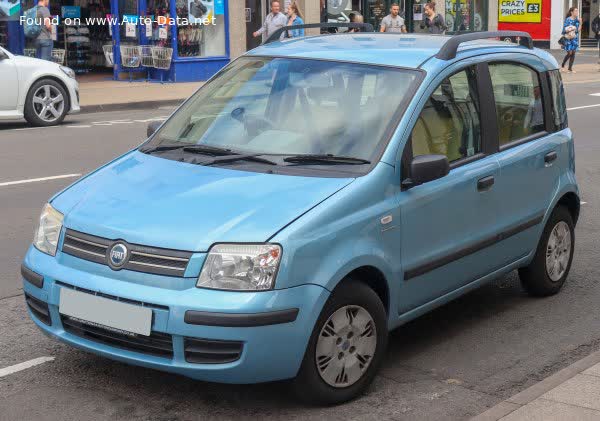

Full specifications and technical details 2003 Fiat Panda II (169) 1.2 MPI (60 Hp)

Overview:

What is the engine capacity of a Fiat Panda 2003?
The engine capacity of the Fiat Panda 2003 is 1242.

Fiat Panda 2003 How many horsepower?
The engine power of the Fiat Panda 2003 is 60 Hp @ 5000 rpm..

What is the Fiat Panda 2003 engine?
Fiat Panda 2003 engine is 188A4000. (Click to see other cars using the same engine)

How much gasoline does a Fiat Panda 2003 consume?
The Fiat Panda 2003 consumes 5.6 liters of gasoline per 100 km

What is the recommended oil for a Fiat Panda 2003 engine?
The recommended oil for a Fiat Panda 2003 car engine is 5W-40.

What type of camshaft transmission system is used in a Fiat Panda 2003 engine?
belt is used to transmit motion.

General:

Brand: Fiat
Model: Panda
Generation: II (169)
Modification (Engine): 1.2 MPI (60 Hp)
Start of production: 2003
End of production: 2010
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 5

Engine:

Power: 60 hp @ 5000 rpm.
Power per litre: 48.3 hp/l
Torque: 102 nm @ 2500 rpm.
Engine Model/Code:188A4000
Engine displacement: 1242
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 2
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: OHC
Engine oil capacity: 2.8 l
Coolant: 4.6 l
Engine layout: Front, Transverse
Cylinder Bore: 70.8 mm
Piston Stroke: 78.86 mm
Compression ratio: 9.8:1
recommended engine oil: 5W-40
euro standards: EURO 2/3
engine lifespan (km): ~240 000
weight (kg): 85
timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 7.1 l/100 km
Fuel consumption (economy) - extra urban: 4.8 l/100 km
Fuel consumption (economy) - combined: 5.6 l/100 km
Acceleration 0 - 100 km/h: 14 sec
Acceleration 0 - 62 mph: 14 sec
Maximum speed: 155 km/h
Weight-to-power ratio: 14.3 kg/Hp, 69.8 Hp/tonne
Weight-to-torque ratio: 8.4 kg/Nm, 118.6 Nm/tonne
Acceleration 0 - 60 mph: 13.3 sec

Space:

Kerb Weight (kg): 860
Max. weight (kg): 1305
Max load (kg): 445
Trunk (boot) space - maximum: 775 l
Trunk (boot) space - minimum: 206 l
Fuel tank capacity: 35 l

dimensions:

Length: 3538 mm
Width: 1578 mm
Height: 1540 mm
wheelbase: 2299 mm
Front track: 1366 mm
Rear (Back) track: 1357 mm
Minimum turning circle (turning diameter): 9.1 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Disc
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Tires size: 155/80 R13
Wheel rims size: 5J x 13
Front suspension: Spring Strut
Rear suspension: Torsion
