Everything you need to know about specifications and performance - Fiat Panda 2003 - 1.2 8V (69 Hp) DYNAMIC

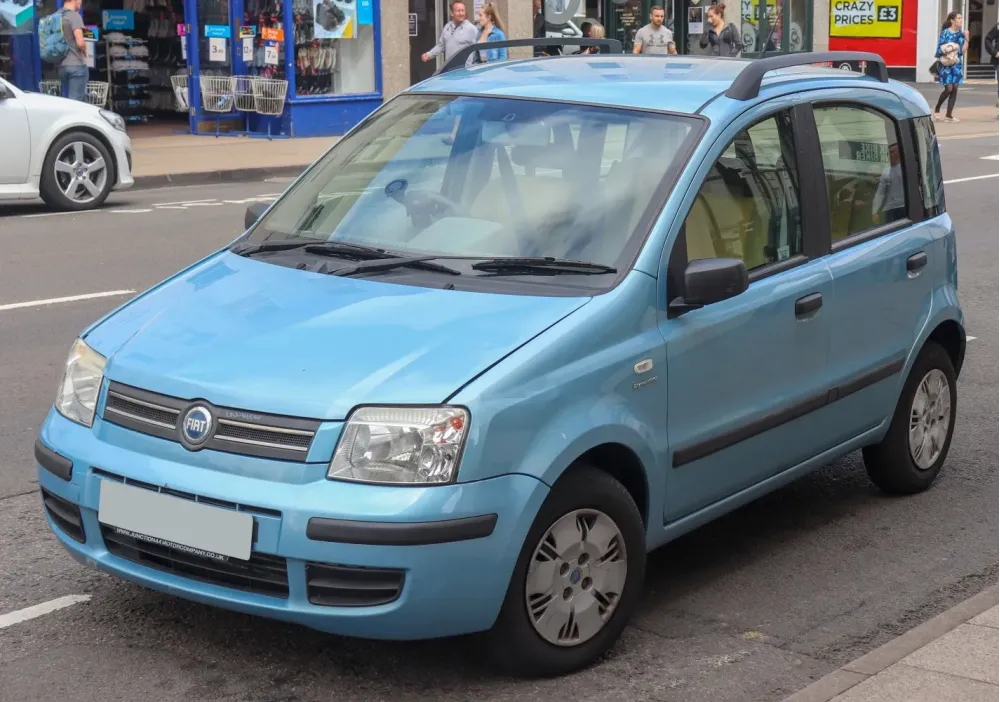

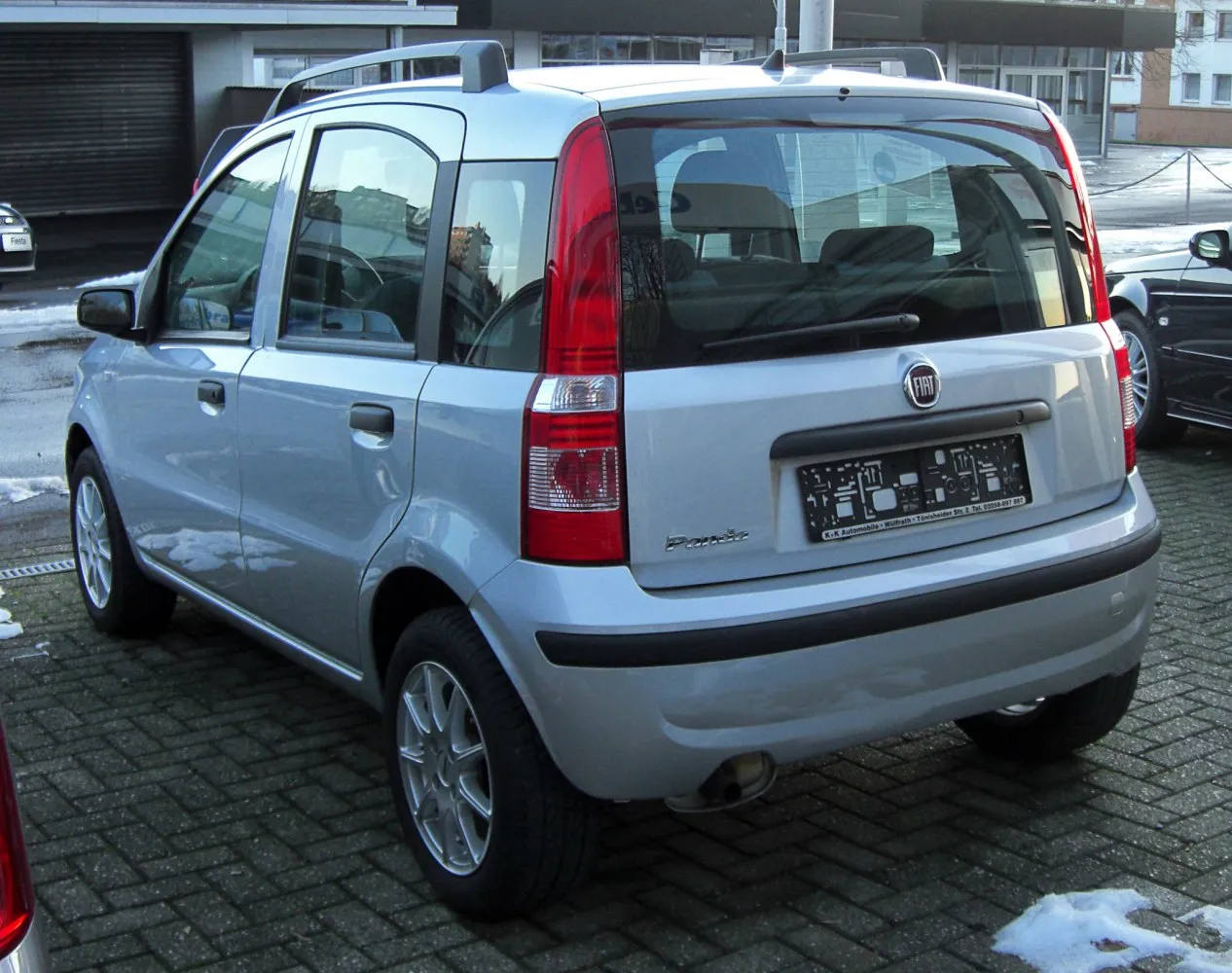

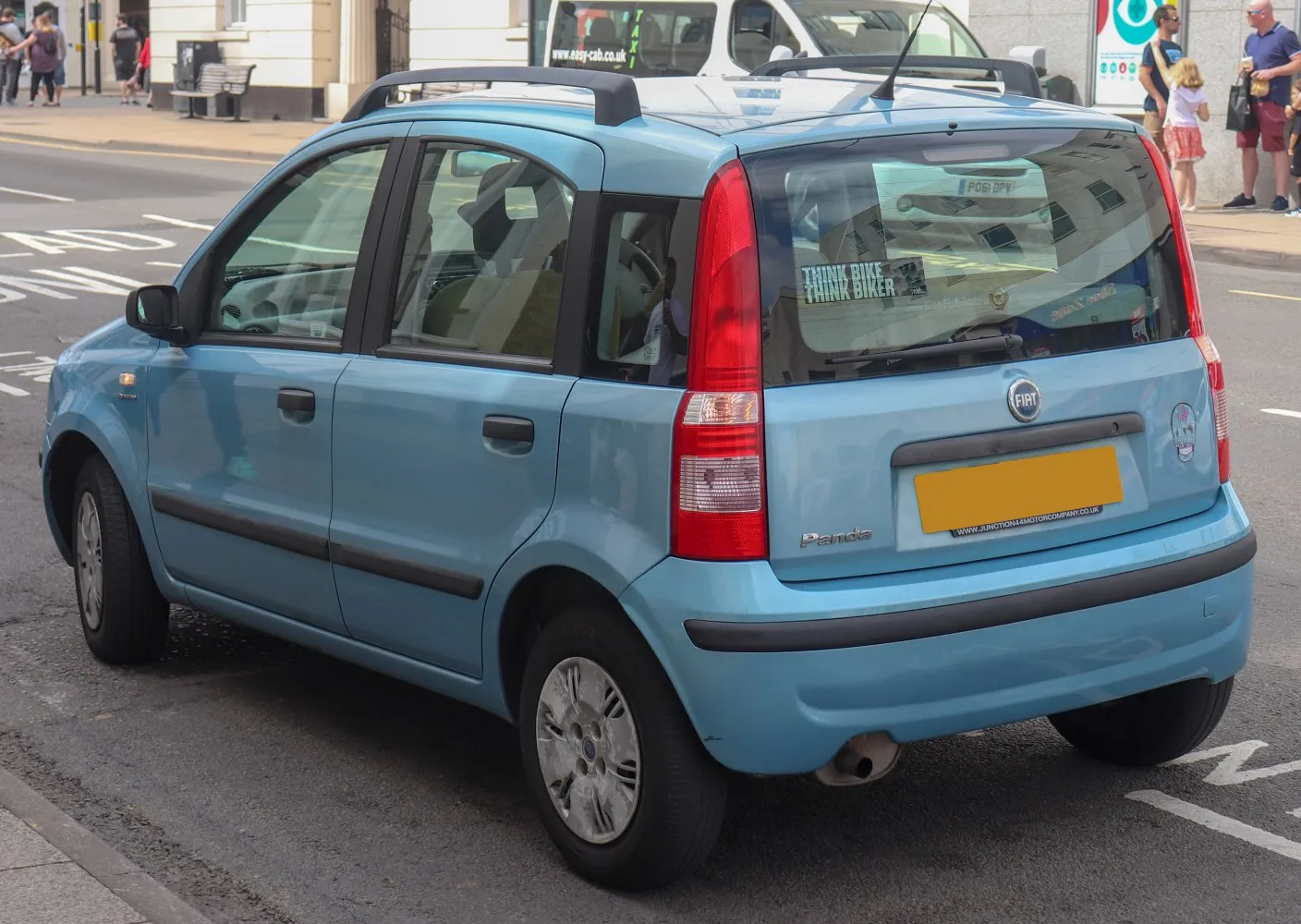

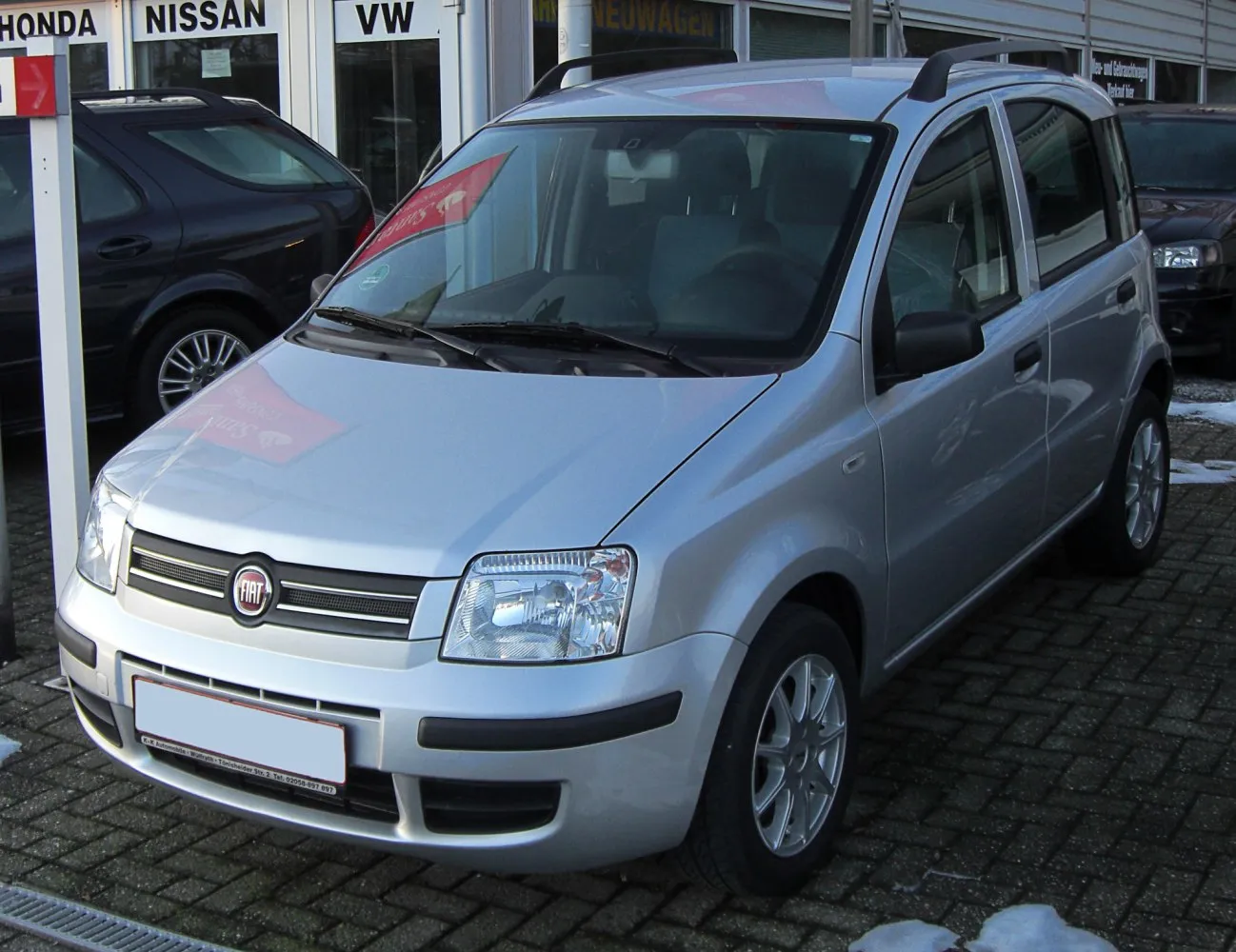

Full specifications and technical details 2003 Fiat Panda II (169) 1.2 8V (69 Hp) DYNAMIC

Overview:

What is the engine capacity of a Fiat Panda 2003?
The engine capacity of the Fiat Panda 2003 is 1242.

Fiat Panda 2003 How many horsepower?
The engine power of the Fiat Panda 2003 is 69 Hp @ 5500 rpm..

What is the Fiat Panda 2003 engine?
Fiat Panda 2003 engine is 169A4000. (Click to see other cars using the same engine)

How much gasoline does a Fiat Panda 2003 consume?
The Fiat Panda 2003 consumes 4.9 liters of gasoline per 100 km

What is the recommended oil for a Fiat Panda 2003 engine?
The recommended oil for a Fiat Panda 2003 car engine is 5W-40.

What type of camshaft transmission system is used in a Fiat Panda 2003 engine?
belt is used to transmit motion.

General:

Brand: Fiat

Model: Panda

Generation: II (169)

Modification (Engine): 1.2 8V (69 Hp) DYNAMIC

Start of production: 2003

End of production: 2012

Powertrain Architecture: Internal Combustion Engine

Body type:Hatchback

Seats: 5

Doors: 5

Engine:

Power: 69 hp @ 5500 rpm.

Power per litre: 55.6 hp/l

Torque: 102 nm @ 3000 rpm.

Engine Model/Code:169A4000

Engine displacement: 1242

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 2

Fuel injection system: Multi-port manifold injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: SOHC

Engine oil capacity: 2.8 l

Coolant: 4.6 l

Engine layout: Front, Transverse

recommended engine oil: 5W-40

euro standards: EURO 4/5

engine lifespan (km): ~240 000

weight (kg): 85

timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - urban: 6.4 l/100 km

Fuel consumption (economy) - extra urban: 4 l/100 km

Fuel consumption (economy) - combined: 4.9 l/100 km

Emission standard: Euro 5

Acceleration 0 - 100 km/h: 13.4 sec

Acceleration 0 - 62 mph: 13.4 sec

Maximum speed: 162 km/h

Weight-to-power ratio: 12.5 kg/Hp, 80.2 Hp/tonne

Weight-to-torque ratio: 8.4 kg/Nm, 118.6 Nm/tonne

Acceleration 0 - 60 mph: 12.7 sec

Space:

Kerb Weight (kg): 860

Max. weight (kg): 1275

Max load (kg): 415

Trunk (boot) space - maximum: 775 l

Trunk (boot) space - minimum: 206 l

Fuel tank capacity: 45 l

dimensions:

Length: 3538 mm

Width: 1578 mm

Height: 1550 mm

wheelbase: 2299 mm

Front track: 1366 mm

Rear (Back) track: 1357 mm

Minimum turning circle (turning diameter): 9.1 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: 5 gears, manual transmission

Front brakes: Ventilated discs

Rear brakes: Drum

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Electric Steering

Tires size: 155/80R13

Wheel rims size: 13

Front suspension: Independent, type McPherson with coil Spring and anti-roll bar

Rear suspension: Semi-dependent beam with stabilizer lateral stability
