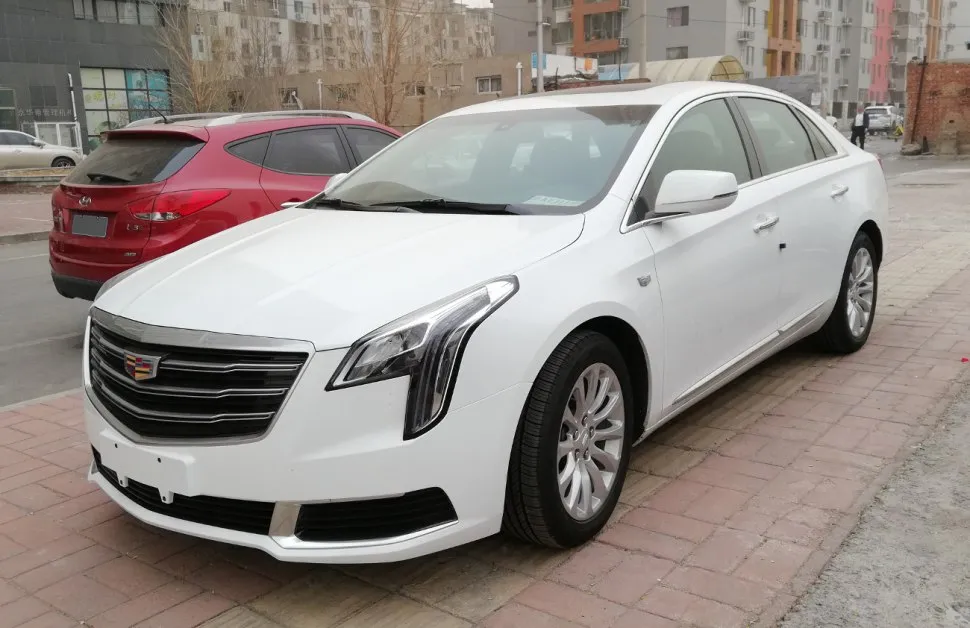

Cadillac XTS 3.6 V6 (305 Hp) AWD Automatic
Overall Rating
Cadillac XTS:
The Cadillac XTS is a full-size car built by the American company Cadillac from 2013 until 2019. It is a four-door sedan with seating for up to five passengers. Based on an enlarged version of the Epsilon II platform, it has a front-mounted engine that either drives the front wheels or drives all four wheels.
Replacing the smaller Cadillac STS and larger DTS, production began in May 2012 at the Oshawa Assembly Plant and launched in June as a 2013 model. Marketed with left-hand drive in the United States, Canada, Mexico, China, and the Middle East , the XTS was also assembled by Shanghai GM, with production beginning in February 2013....(Read more on Wikipedia)
XTS Overview:
Cadillac XTS (XTS). With 355 Nm of torque, it offers ample pulling power. With a weight of 1912 kg, it falls in the mid‑range. All‑wheel drive provides excellent grip, ideal for off‑road use. A four-door car with a separate trunk, ideal for families and daily commuting. Seating for 5 makes it ideal for daily use.
The Cadillac XTS generation was not tested by Euro NCAP. However, it generally performed well in US-based safety tests (NHTSA, IIHS) for its time, offering a robust suite of safety features.
3.6 V6 (305 Hp) AWD Automatic Verdict:
Performance Verdict
Similar to its FWD counterpart, this naturally aspirated V6 delivers smooth power. The addition of AWD enhances traction and stability, especially in adverse weather conditions, slightly improving overall handling dynamics.
Fuel Economy
Fuel economy is slightly reduced compared to the FWD 3.6 V6 due to the added weight and drivetrain losses of the AWD system, but it remains competitive for an AWD luxury sedan.
Pros and Cons:
Pros:
- • Spacious and comfortable interior with ample rear legroom
- • Smooth ride quality, especially with Magnetic Ride Control
- • Advanced technology features for its era (CUE infotainment)
- • Powerful V6 engine options, including a potent twin-turbo
- • Distinctive Cadillac styling
Cons:
- • CUE infotainment system can be slow and frustrating to use
- • Not as agile or sporty as some European rivals
- • Base 2.0T engine can feel underpowered for some
- • Resale value can be lower than competitors
- • Some interior materials feel less premium than expected
Specifications:
Specifications are compared to those of the previous generation(facelift 2017: 2017 - October, 2019).
| General: | |
|---|---|
| Brand: | Cadillac |
| Model: | XTS |
| Generation: | XTS |
| Modification (Engine): | 3.6 V6 (305 Hp) AWD Automatic |
| Start of production: | May, 2012 |
| End of production: | 2017 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Sedan |
| Seats: | 5 |
| Doors: | 4 |
| Engine: | |
|---|---|
| Power: | 305 Hp @ 6800 rpm. |
| Power per litre: | 85.6 Hp/l |
| Torque: | 355 Nm @ 5200 rpm. |
| Engine Model/Code: | LFX [Same engine] More details about the engine LFX |
| Engine displacement: | 3564 |
| Number of cylinders: | 6 |
| Engine configuration: | V-engine |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Direct injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC, VVT DI |
| Engine oil capacity: | 5.7 l |
| Coolant: | 7.1 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 94 mm mm |
| Piston Stroke: | 85.6 mm mm |
| Compression ratio: | 11.5:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 13.8 l/100 km |
| Fuel consumption (economy) - extra urban: | 8.7 l/100 km |
| Fuel consumption (economy) - combined: | 11.8 l/100 km |
| Weight-to-power ratio: | 6.3 kg/Hp, 159.5 Hp/tonne |
| Weight-to-torque ratio: | 5.4 kg/Nm, 185.7 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1912 |
| Trunk (boot) space - minimum: | 509 l |
| Fuel tank capacity: | 74 l |
| Permitted trailer load without brakes: | 454 kg |
| Size: | |
|---|---|
| Length: | 5131 mm mm [28mm more] |
| Width: | 1852 mm mm [Same width.] |
| Height: | 1510 mm mm [Same height.] |
| Wheelbase: | 2837 mm mm [Same wheelbase.] |
| Front track: | 1582 mm |
| Rear (Back) track: | 1587 mm |
| Minimum turning circle (turning diameter): | 11.8 m [above average] |
| Powertrain: | |
|---|---|
| Drive wheel | All wheel drive (4x4) |
| Number of gears | 6 |
| Transmission type | Automatic |
| Gearbox type | Hydra-Matic |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Ventilated discs [Best for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 245/45 R19; 245/40 R20 |
| Wheel rims size | 19; 20 |
| Front suspension | Independent coil spring |
| Rear suspension | Independent coil spring, Air suspension |
