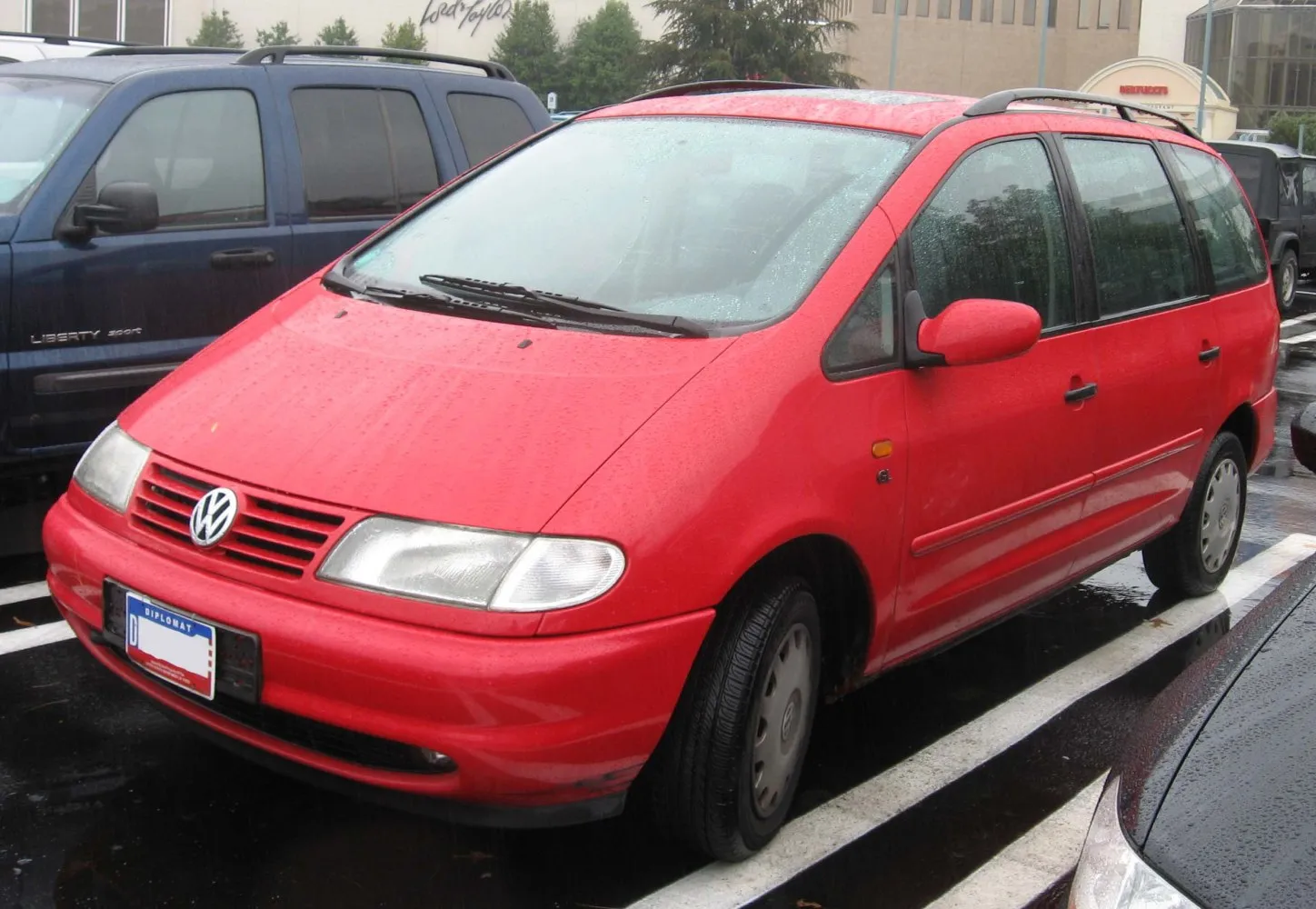

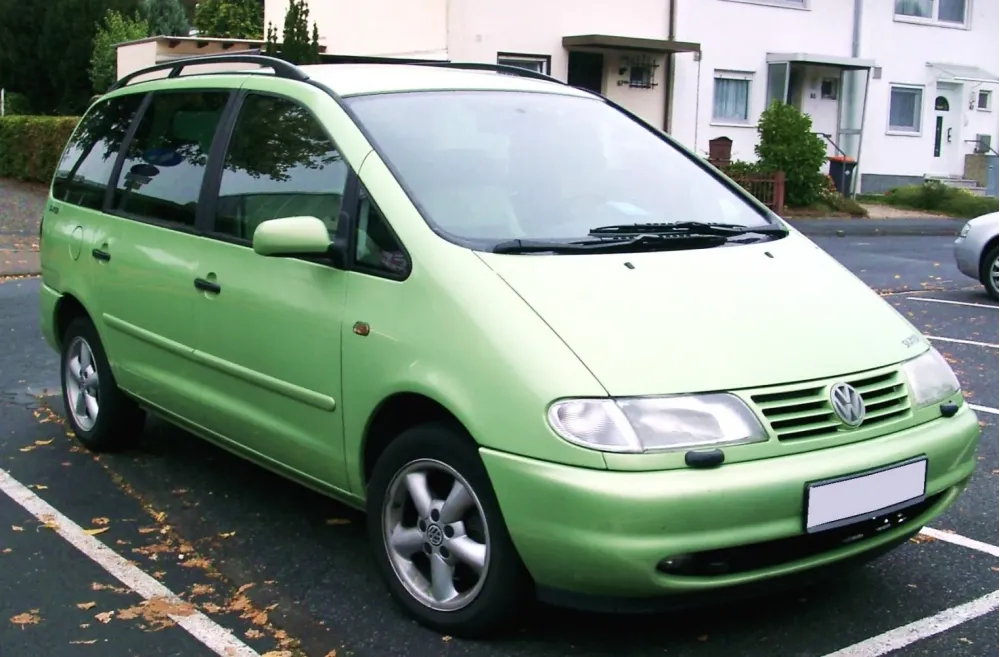

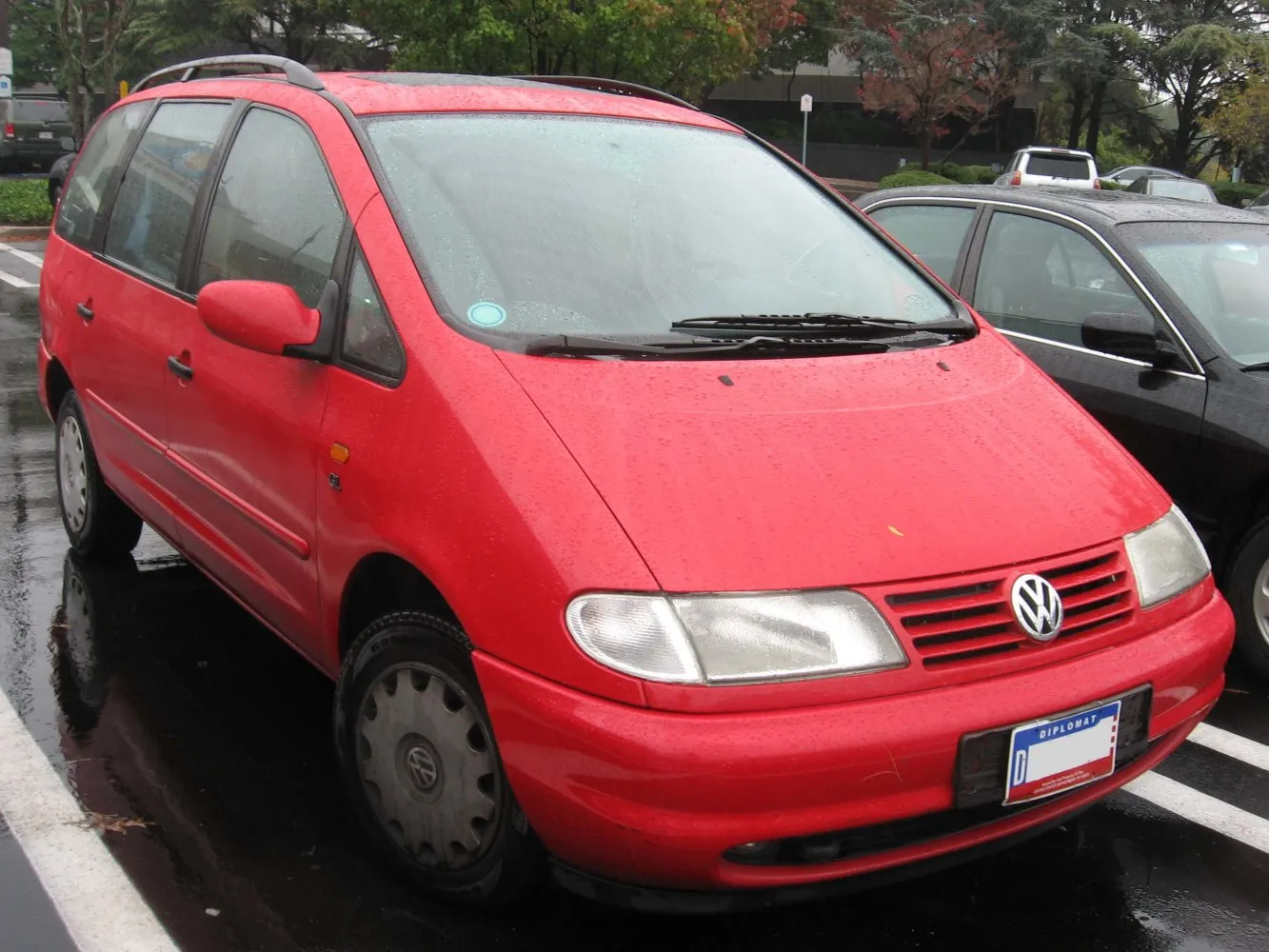

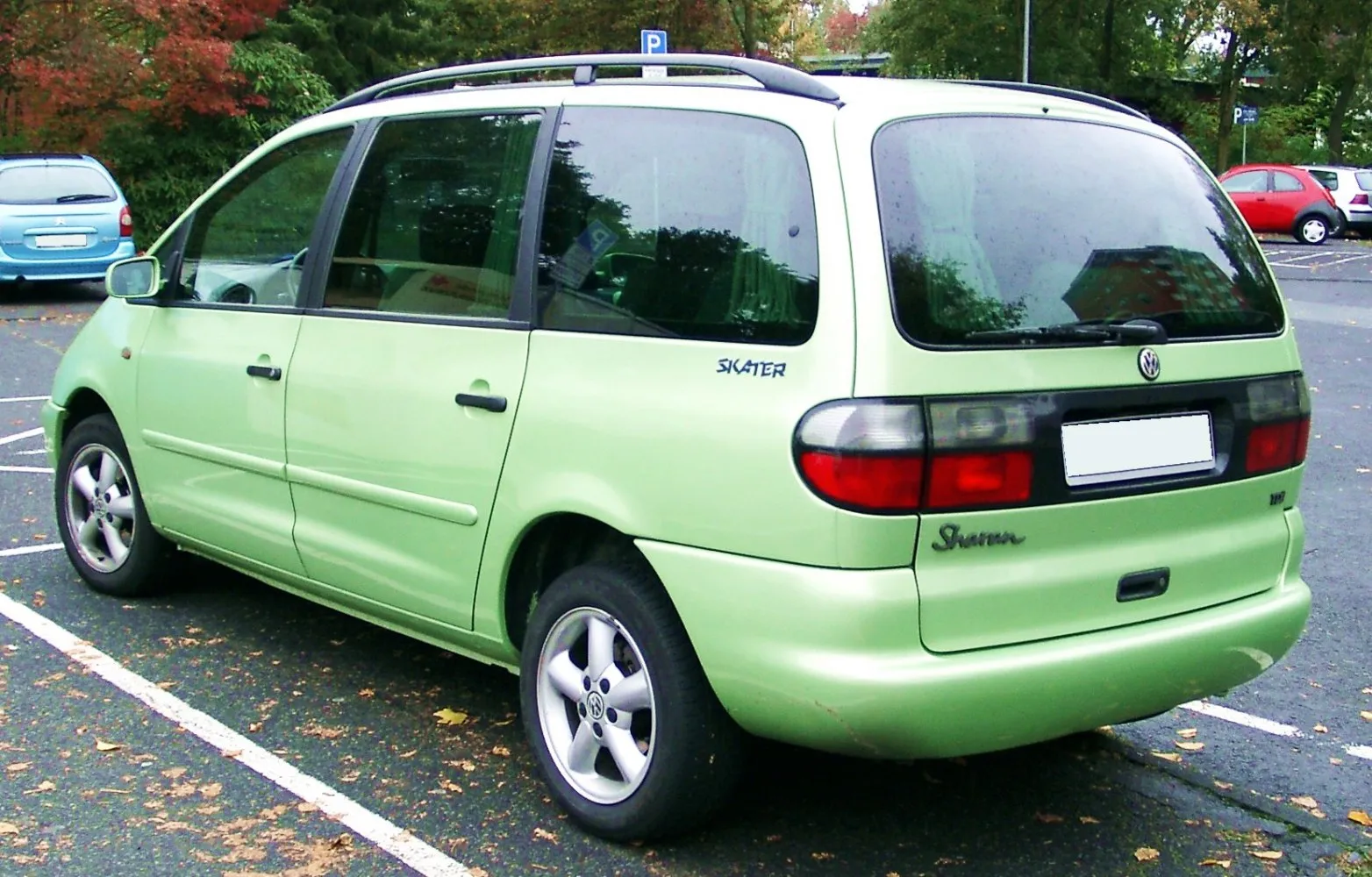

Volkswagen Sharan I 1.9 TDI (110 Hp)
Overall Rating
Volkswagen Sharan:
The Volkswagen Sharan is a seven-seater minivan that was produced by the German Volkswagen Group. It was built at the AutoEuropa plant in Palmela, Portugal across two generations from 1995 to 2023. Through badge engineering, the Volkswagen Sharan shares the same platform with the SEAT Alhambra, and the first generation was also in most respects identical to the Ford Galaxy. A second generation was produced from 2010 to 2023. It has a front-engine, front-wheel-drive layout and is described in the motor industry as a multi-purpose vehicle....(Read more on Wikipedia)
I Overview:
Volkswagen Sharan (I). With 235 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~8.6 l/100km). With a weight of 1665 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 16.4 s). The top speed reaches 172 km/h. A spacious vehicle designed to transport passengers comfortably, often with sliding doors. A multi-purpose vehicle designed to transport passengers with ample interior space. With seating for 7, it’s perfect for larger families.
Achieved an acceptable 3-star rating for adult occupant protection in its 1999 Euro NCAP test, reflecting the safety standards of its era.
1.9 TDI (110 Hp) Verdict:
Performance Verdict
Offers a good balance of power and torque for a family MPV, making highway cruising comfortable and overtaking manageable.
Fuel Economy
Excellent fuel economy for its class, especially on longer journeys, making it a highly economical and popular choice.
Pros and Cons:
Pros:
- • Spacious and versatile interior with flexible seating configurations
- • Good range of engines, particularly the economical TDI diesels
- • Robust and durable build quality typical of Volkswagen
- • Comfortable ride, well-suited for long family journeys
Cons:
- • Dated interior design and materials by modern standards
- • Average handling dynamics, not particularly engaging to drive
- • Some petrol engines can be thirsty, especially the VR6
- • Older safety technology compared to newer generations
Specifications:
Specifications are compared to those of the previous generation(II (facelift 2015): 2018 - 2020).
| General: | |
|---|---|
| Brand: | Volkswagen |
| Model: | Sharan |
| Generation: | I |
| Modification (Engine): | 1.9 TDI (110 Hp) |
| Start of production: | December, 1996 |
| End of production: | February, 2000 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Minivan, MPV |
| Seats: | 7 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 110 Hp @ 4150 rpm. Same horsepower |
| Power per litre: | 58 Hp/l [234mm less] |
| Torque: | 235 Nm @ 1900 rpm. |
| Engine Model/Code: | AFN More details about the engine AFN |
| Engine displacement: | 1896 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Direct injection |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | OHC |
| Engine oil capacity: | 4.3 l |
| Coolant: | 6.8 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 79.5 mm |
| Piston Stroke: | 95.5 mm |
| Compression ratio: | 19.5:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 8.6 l/100 km |
| Fuel consumption (economy) - extra urban: | 5.3 l/100 km |
| Acceleration 0 - 100 km/h: | 16.4 sec |
| Acceleration 0 - 62 mph: | 16.4 sec |
| Maximum speed: | 172 km/h |
| Weight-to-power ratio: | 15.1 kg/Hp, 66.1 Hp/tonne |
| Weight-to-torque ratio: | 7.1 kg/Nm, 141.1 Nm/tonne |
| Acceleration 0 - 60 mph: | 15.6 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1665 |
| Max. weight: | 2400 |
| Max load: | 735 |
| Trunk (boot) space - maximum: | 2610 l |
| Trunk (boot) space - minimum: | 256 l |
| Fuel tank capacity: | 70 l |
| Size: | |
|---|---|
| Length: | 4620 mm [234mm less] |
| Width: | 1810 mm [94mm less] |
| Height: | 1730 mm [16mm less] |
| Wheelbase: | 2835 mm [85mm less] |
| Front track: | 1510 mm |
| Rear (Back) track: | 1500 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
