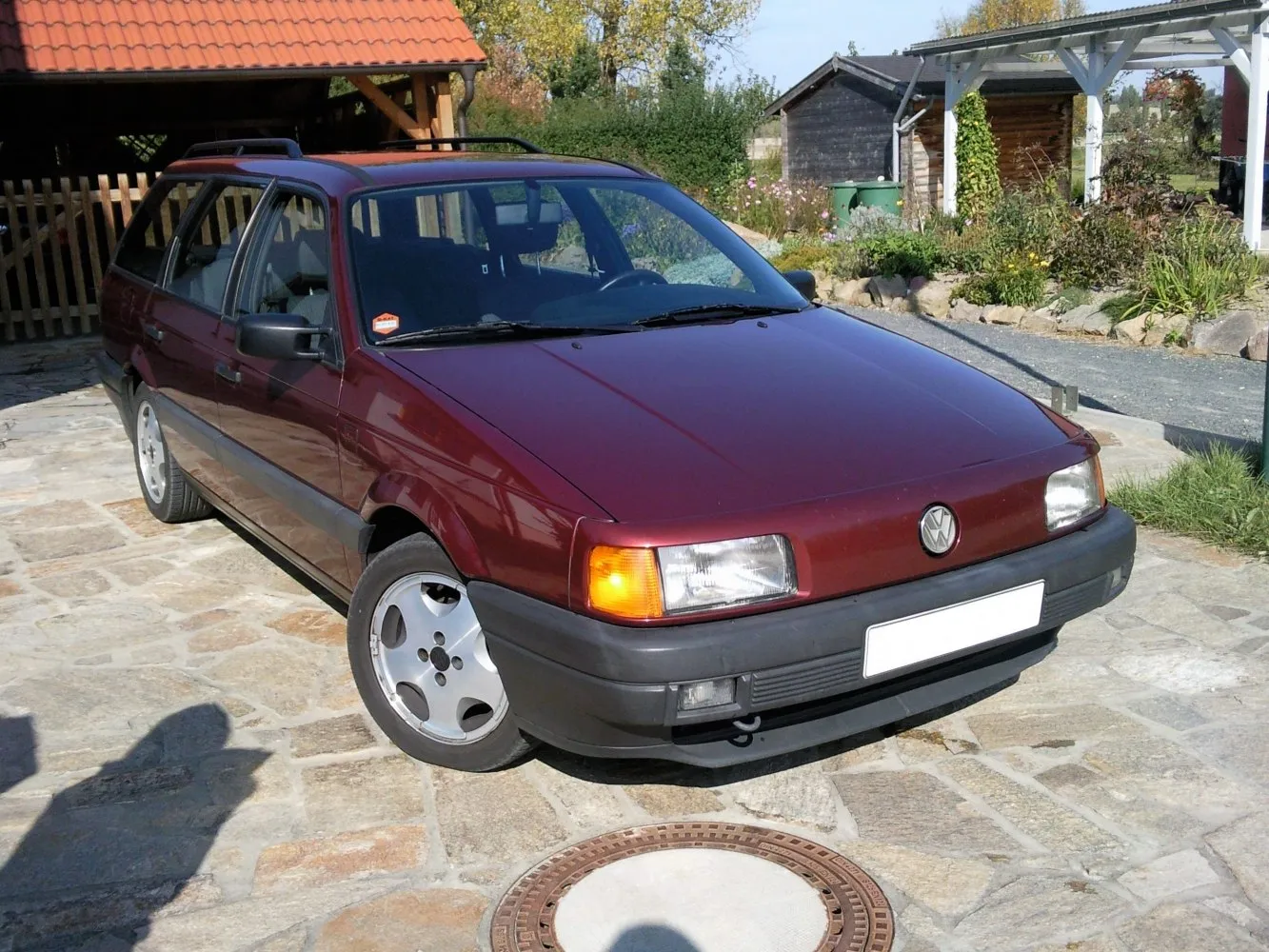

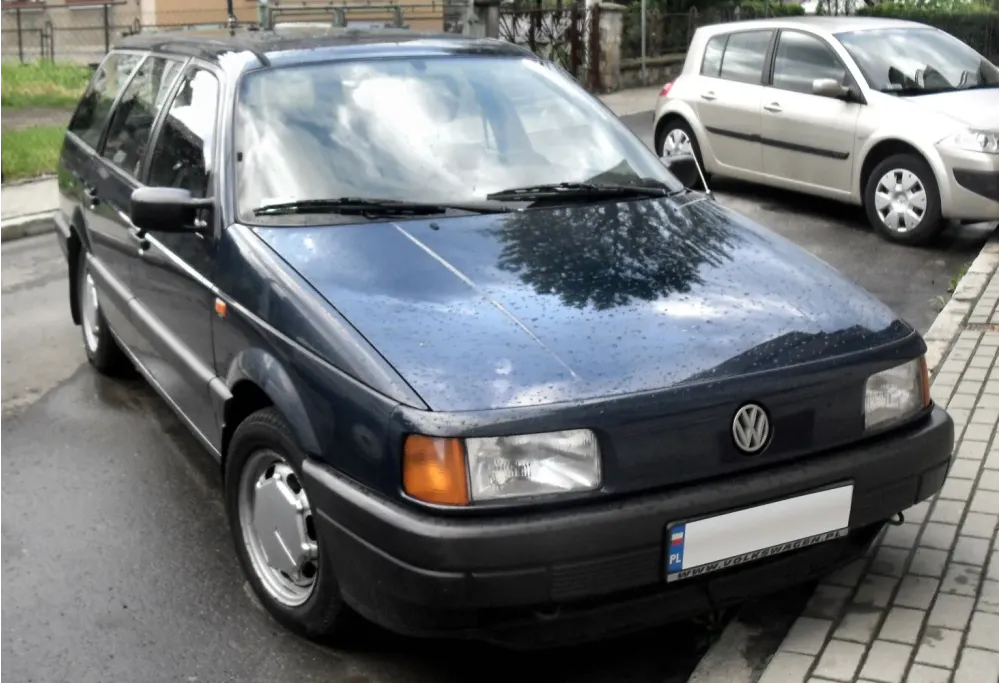

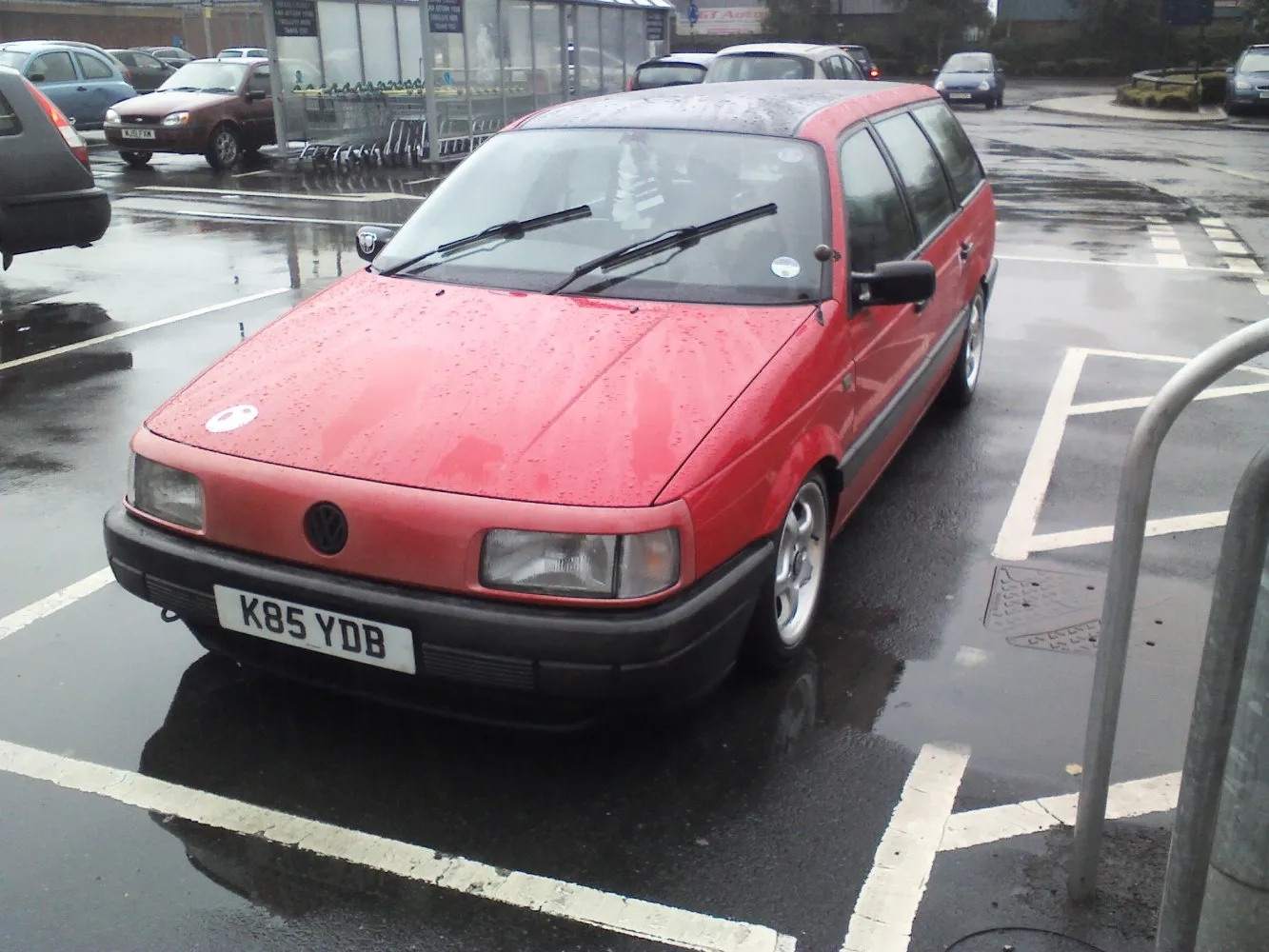

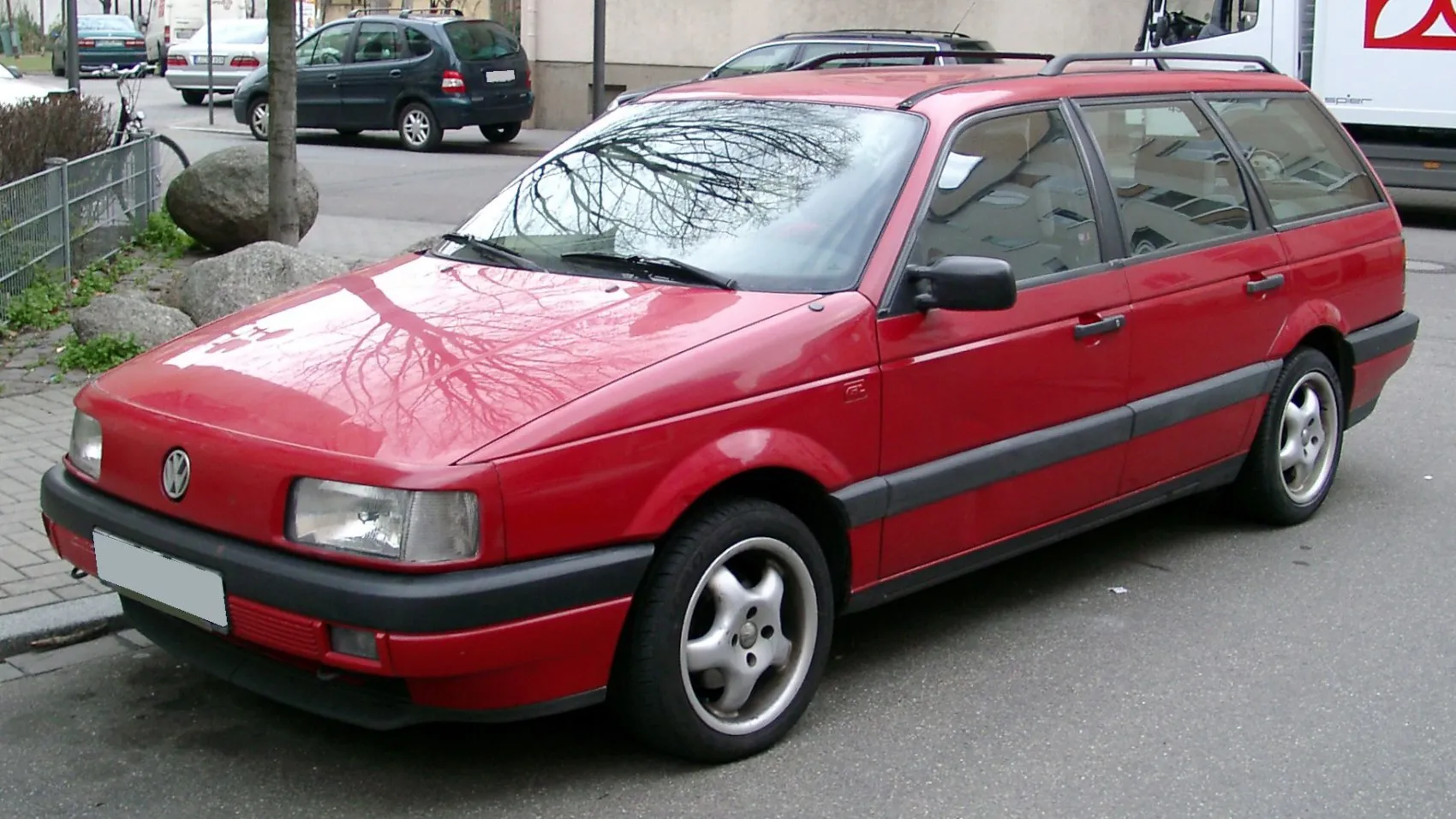

Volkswagen Passat Variant (B3) 1.9 D (68 Hp)
Overall Rating
Volkswagen Passat:
The Volkswagen Passat is a nameplate of large family cars manufactured and marketed by the German automobile manufacturer Volkswagen since 1973 and also marketed variously as the Dasher, Santana, Quantum, Magotan, Corsar and Carat — in saloon, estate, and hatchback body styles.
A "four-door coupé" variant of the Passat with a lower roof was released in the North American market in 2008 as the Passat CC, which was then renamed to Volkswagen CC. The CC was succeeded by the Arteon in 2017....(Read more on Wikipedia)
Variant (B3) Overview:
Volkswagen Passat (Variant (B3)). With 133 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~7.4 l/100km). Weighing only 1180 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 19.4 s). The top speed reaches 155 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
1.9 D (68 Hp) Verdict:
Performance Verdict
The slowest option, providing very basic performance best suited for low-speed urban environments.
Fuel Economy
Outstanding fuel economy at 6.6 l/100 km, making it the most economical choice for running costs.
Pros and Cons:
Pros:
- • Spacious and practical Variant (estate) body style
- • Wide range of engines, from economical diesels to powerful VR6 and G60
- • Robust and generally reliable mechanicals for its era
- • Comfortable ride quality, suitable for long journeys
- • Good build quality and durable interior materials
Cons:
- • Dated safety features compared to modern standards
- • Some engines can be underpowered or thirsty
- • Age-related issues like rust and electrical problems are common now
- • Interior design is functional but lacks flair
- • Automatic transmissions can be slow and less efficient
Specifications:
Specifications are compared to those of the previous generation(B3: 1988 - 1991).
| General: | |
|---|---|
| Brand: | Volkswagen |
| Model: | Passat |
| Generation: | Variant (B3) |
| Modification (Engine): | 1.9 D (68 Hp) |
| Start of production: | 1989 |
| End of production: | 1993 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 68 Hp @ 4200 rpm. Same horsepower |
| Power per litre: | 35.9 Hp/l [22mm more] |
| Torque: | 133 Nm @ 2200 rpm. |
| Engine Model/Code: | 1Y More details about the engine 1Y |
| Engine displacement: | 1896 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Precombustion chamber injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | SOHC |
| Engine oil capacity: | 4.5 l |
| Coolant: | 5 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 79.5 mm |
| Piston Stroke: | 95.5 mm |
| Compression ratio: | 19:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 7.4 l/100 km |
| Fuel consumption (economy) - extra urban: | 4.7 l/100 km |
| Fuel consumption (economy) - combined: | 6.6 l/100 km |
| Acceleration 0 - 100 km/h: | 19.4 sec |
| Acceleration 0 - 62 mph: | 19.4 sec |
| Maximum speed: | 155 km/h |
| Weight-to-power ratio: | 17.4 kg/Hp, 57.6 Hp/tonne |
| Weight-to-torque ratio: | 8.9 kg/Nm, 112.7 Nm/tonne |
| Acceleration 0 - 60 mph: | 18.4 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1180 |
| Max. weight: | 1750 |
| Max load: | 570 |
| Trunk (boot) space - maximum: | 1500 l |
| Trunk (boot) space - minimum: | 465 l |
| Fuel tank capacity: | 70 l |
| Size: | |
|---|---|
| Length: | 4595 mm [22mm more] |
| Width: | 1720 mm [16mm more] |
| Height: | 1445 mm [17mm more] |
| Wheelbase: | 2425 mm [198mm less] |
| Front track: | 1479 mm |
| Rear (Back) track: | 1422 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Disc [bad for performance and cooling.] |
| Rear brakes | Drum [bad for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/65 R14 |
| Wheel rims size | 14 |
| Front suspension | Wishbone |
| Rear suspension | Suspension with traction connecting levers |
