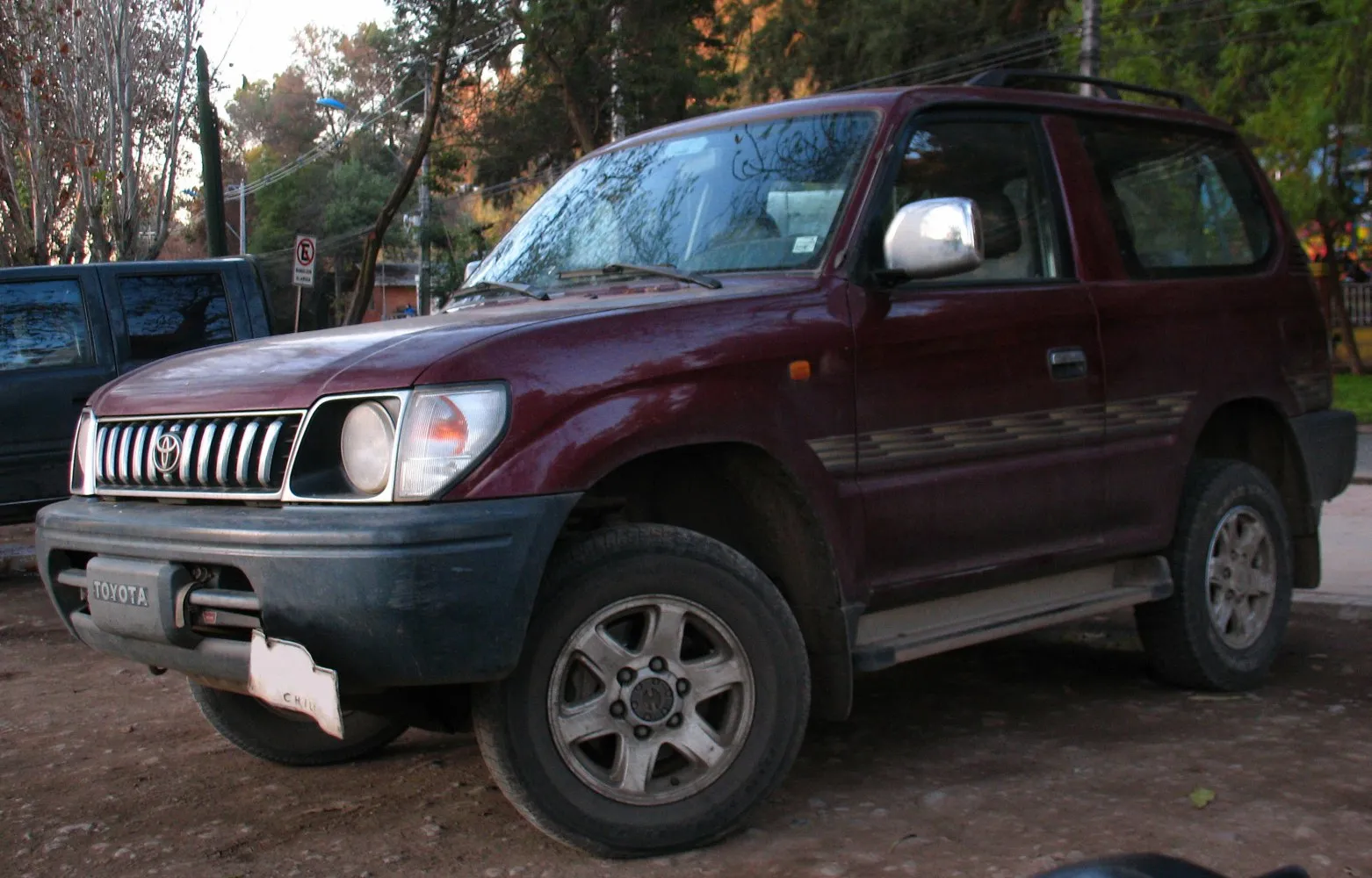

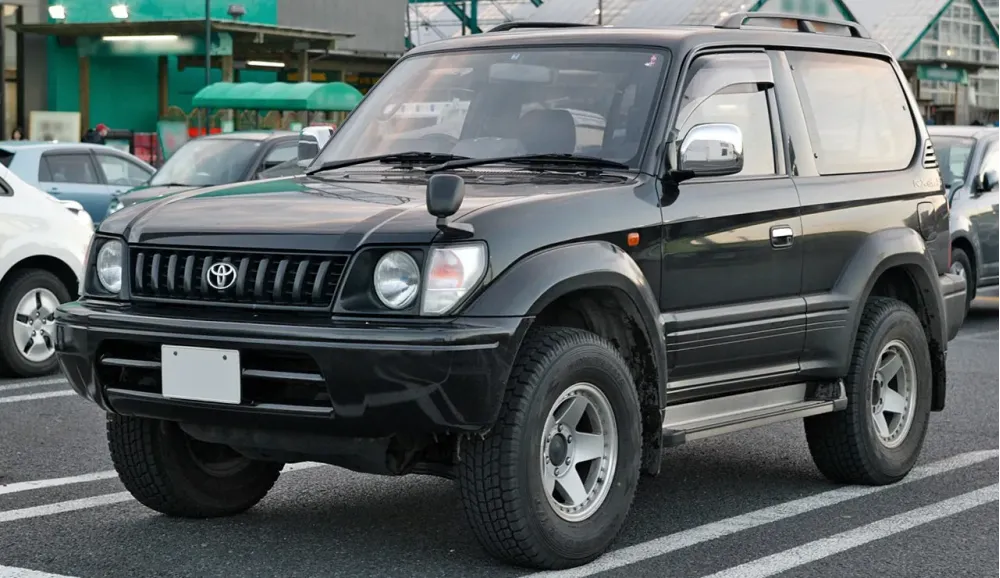

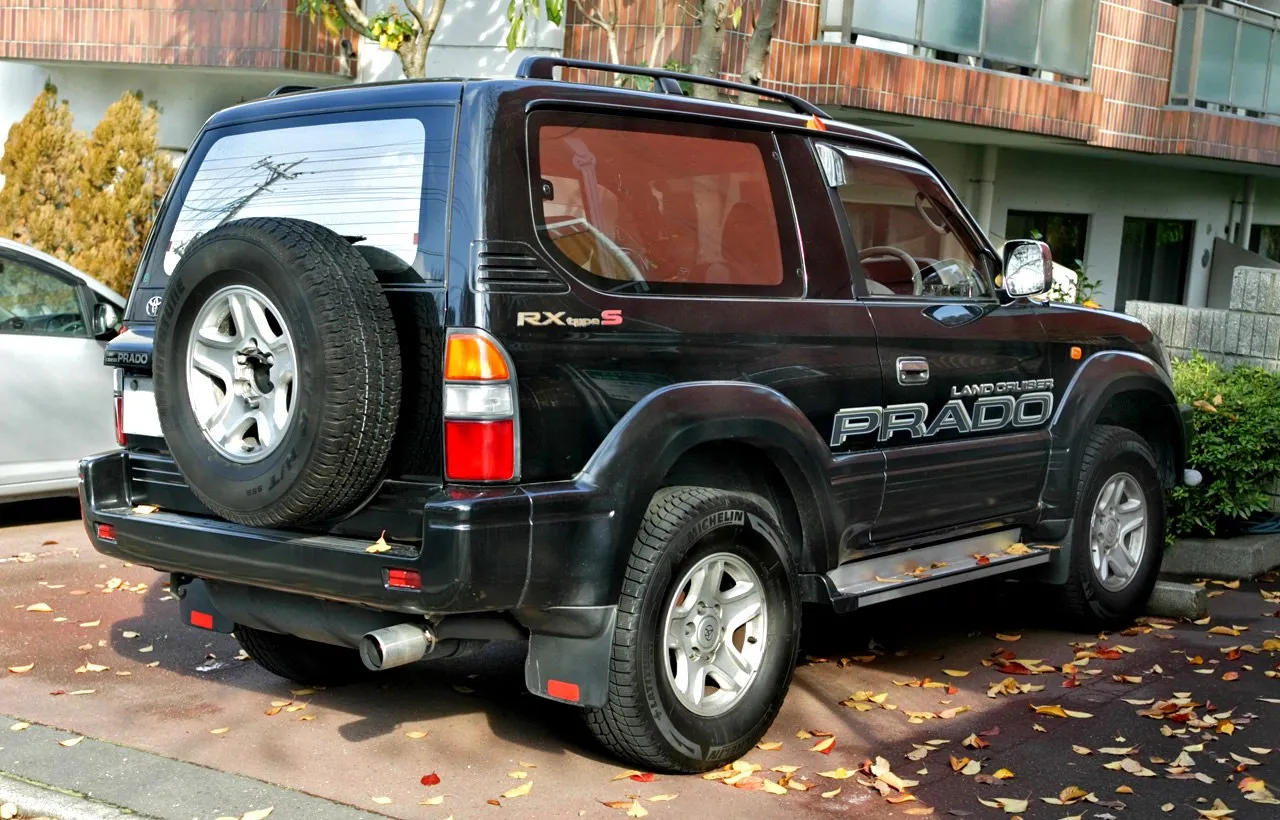

Toyota Land Cruiser Prado (J90) 3-door 3.0 TD (125 Hp) 4WD
Overall Rating
Toyota Land Cruiser Prado:
The Toyota Land Cruiser Prado is a full-size four-wheel drive vehicle in the Land Cruiser range produced by the Japanese automaker Toyota as a "light-duty" variation in the range. "Prado" means meadow or field in Spanish and Portuguese.
The Prado may also be referred to as Land Cruiser LC70, LC90, LC120, LC150 and LC250 depending on the platform. In some markets, it is known simply as the Toyota Prado or the Toyota Land Cruiser....(Read more on Wikipedia)
(J90) 3-door Overview:
Toyota Land Cruiser Prado ((J90) 3-door). With 295 Nm of torque, it offers ample pulling power. With a weight of 1775 kg, it falls in the mid‑range. All‑wheel drive provides excellent grip, ideal for off‑road use. Acceleration is relatively slow (0–100 km/h in 14 s). The top speed reaches 160 km/h. A sport utility vehicle offering higher ground clearance and versatile cargo space. Seating for 5 makes it ideal for daily use.
3.0 TD (125 Hp) 4WD Verdict:
Performance Verdict
Offers adequate power and excellent torque for off-road driving and towing, though on-road acceleration is leisurely. The 1KZ-TE is a proven workhorse.
Fuel Economy
Typical for a robust diesel SUV of its era, with urban consumption around 13.2 l/100km. Reasonable for its capability, but not economical by modern standards.
Pros and Cons:
Pros:
- • Exceptional off-road capability
- • Legendary Toyota reliability and durability
- • Robust build quality
- • Practical and spacious interior for its size
- • Strong resale value
Cons:
- • Leisurely on-road performance (especially diesel)
- • High fuel consumption (especially petrol V6)
- • Basic interior refinement by modern standards
- • Limited safety features compared to newer vehicles
- • Ride can be firm on paved roads
Specifications:
Specifications are compared to those of the previous generation(J70: 1995 - 1996).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | Land Cruiser Prado |
| Generation: | (J90) 3-door |
| Modification (Engine): | 3.0 TD (125 Hp) 4WD |
| Start of production: | 1996 |
| End of production: | 1999 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | SUV |
| Seats: | 5 |
| Doors: | 3 |
| Engine: | |
|---|---|
| Power: | 125 Hp @ 3600 rpm. Same horsepower |
| Power per litre: | 41.9 Hp/l [345mm less] |
| Torque: | 295 Nm @ 2000 rpm. |
| Engine Model/Code: | 1KZ-TE More details about the engine 1KZ-TE |
| Engine displacement: | 2982 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Precombustion chamber injection |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | OHC |
| Engine oil capacity: | 7 l |
| Coolant: | 10 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 96 mm mm |
| Piston Stroke: | 103 mm mm |
| Compression ratio: | 21.2:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 13.2 l/100 km |
| Fuel consumption (economy) - extra urban: | 9.6 l/100 km |
| Acceleration 0 - 100 km/h: | 14 sec |
| Acceleration 0 - 62 mph: | 14 sec |
| Maximum speed: | 160 km/h |
| Weight-to-power ratio: | 14.2 kg/Hp, 70.4 Hp/tonne |
| Weight-to-torque ratio: | 6 kg/Nm, 166.2 Nm/tonne |
| Acceleration 0 - 60 mph: | 13.3 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1775 |
| Max. weight: | 2510 |
| Max load: | 735 |
| Trunk (boot) space - maximum: | 836 l |
| Trunk (boot) space - minimum: | 450 l |
| Fuel tank capacity: | 90 l |
| Size: | |
|---|---|
| Ramp-over (brakeover) angle: | 32° |
| Length: | 4240 mm mm [345mm less] |
| Width: | 1820 mm mm [130mm more] |
| Height: | 1880 mm mm [25mm less] |
| Wheelbase: | 2370 mm mm [360mm less] |
| Front track: | 1505 mm |
| Rear (Back) track: | 1510 mm |
| Ride height (ground clearance): | 230 mm |
| Minimum turning circle (turning diameter): | 10.2 m [above average] |
| Approach angle: | 37° |
| Departure angle: | 28° |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle. |
| Drive wheel | All wheel drive (4x4) |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Ventilated discs [Best for performance and cooling.] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/80 R16 |
| Front suspension | Coil spring, Double wishbone, Transverse stabilizer |
| Rear suspension | Rigid axle suspension, Coil spring |
