Everything you need to know about specifications and performance - Toyota Caldina 1992 - 1.8i 16V CZ (125 Hp) Automatic

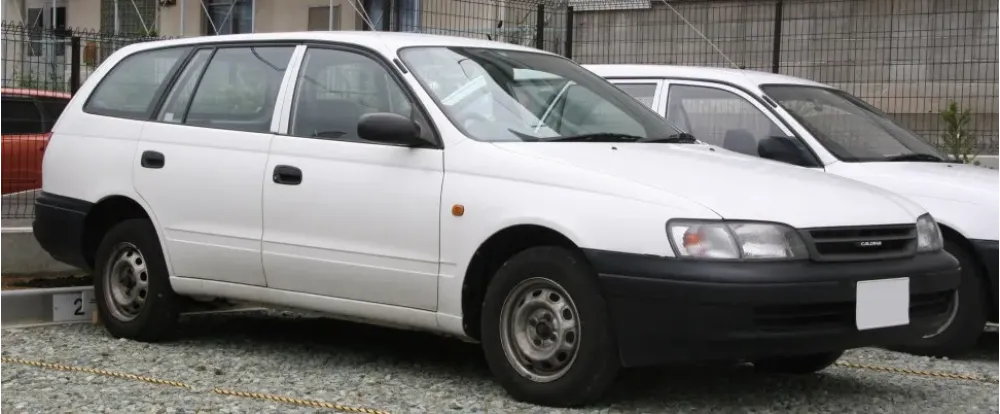

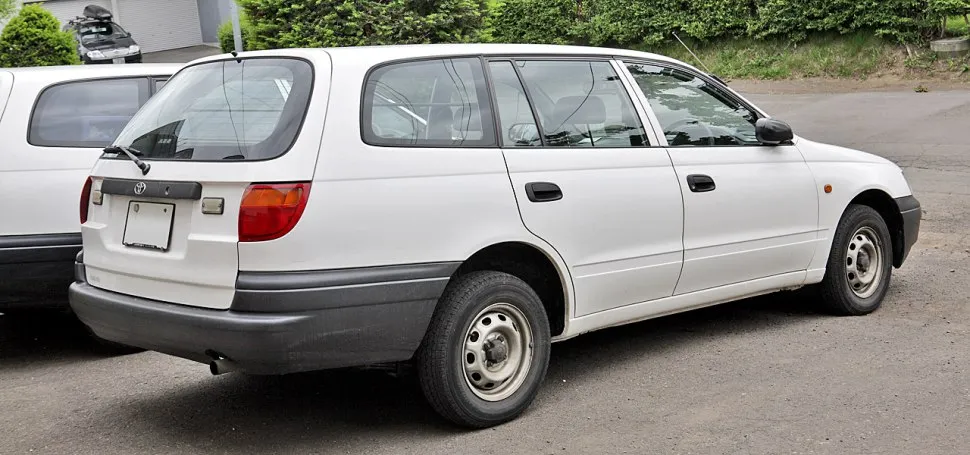

Full specifications and technical details 1992 Toyota Caldina (T19) 1.8i 16V CZ (125 Hp) Automatic

Overview:

What is the engine capacity of a Toyota Caldina 1992?
The engine capacity of the Toyota Caldina 1992 is 1839.

Toyota Caldina 1992 How many horsepower?
The engine power of the Toyota Caldina 1992 is 125 Hp @ 6000 rpm..

What is the Toyota Caldina 1992 engine?
Toyota Caldina 1992 engine is 4S-FE. (Click to see other cars using the same engine)

How much gasoline does a Toyota Caldina 1992 consume?
The Toyota Caldina 1992 consumes 5.4 liters of gasoline per 100 km

General:

Brand: Toyota
Model: Caldina
Generation: T19
Modification (Engine): 1.8i 16V CZ (125 Hp) Automatic
Start of production: 1992
End of production: 1997
Powertrain Architecture: Internal Combustion Engine
Body type:Station wagon
Seats: 5
Doors: 5

Engine:

Power: 125 hp @ 6000 rpm.
Power per litre: 68 hp/l
Torque: 162 nm @ 4600 rpm.
Engine Model/Code:4S-FE
Engine displacement: 1839
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 3.9 l
Coolant: 6.6 l
Engine layout: Front, Transverse
Cylinder Bore: 82.5 mm
Piston Stroke: 86 mm
Compression ratio: 9.5:1

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - combined: 5.4 l/100 km
Weight-to-power ratio: 9.4 kg/Hp, 105.9 Hp/tonne
Weight-to-torque ratio: 7.3 kg/Nm, 137.3 Nm/tonne

Space:

Kerb Weight (kg): 1180
Max. weight (kg): 1455
Max load (kg): 275
Fuel tank capacity: 60 l

dimensions:

Length: 4545 mm
Width: 1695 mm
Height: 1450 mm
wheelbase: 2580 mm
Front track: 1465 mm
Rear (Back) track: 1450 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 4 gears, automatic transmission
Front brakes: Ventilated discs
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 185/65 R14 S
Wheel rims size: 14
Front suspension: Spring Strut
Rear suspension: Coil Spring
