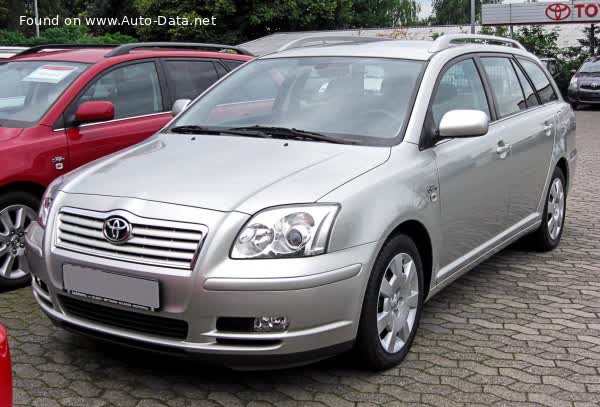

Toyota Avensis II Wagon 2.2 D-CAT (177 Hp)
Overall Rating
Toyota Avensis:
The Toyota Avensis is a mid-size/large family car built in Derbyshire, United Kingdom by the Japanese automaker Toyota from October 1997 to August 2018. It was the direct successor to the European Carina E and was available as a four-door saloon, five-door liftback and estate.
The Avensis was introduced in 1997, to create a more modern name when compared with the Carina E. The "Avensis" name is derived from the French term avancer, meaning "to advance" or "move forward". The Avensis was not sold in North America, and it is related to the Scion tC coupé. It also shared a platform with the Allion and Premio and was available at Japanese dealership network Toyota Netz Store....(Read more on Wikipedia)
II Wagon Overview:
Toyota Avensis (II Wagon). With 400 Nm of torque, it offers ample pulling power. It boasts low fuel consumption (~5.2 l/100km). With a weight of 1560 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. Acceleration is good (0–100 km/h in 8.6 s). The top speed reaches 220 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
2.2 D-CAT (177 Hp) Verdict:
Performance Verdict
The most powerful engine in the lineup, offering genuinely strong performance and rapid acceleration for a family estate.
Fuel Economy
Despite its high power, fuel economy remains very respectable, showcasing advanced diesel technology.
Pros and Cons:
Pros:
- • Exceptional reliability and build quality, typical of Toyota.
- • Spacious and practical interior, especially the wagon variant.
- • Comfortable ride quality, ideal for long journeys.
- • High Euro NCAP safety rating for its generation.
- • Strong diesel engine options offering great performance and economy.
Cons:
- • Styling can be considered conservative or bland by some.
- • Petrol engines, especially with automatic transmissions, can be thirsty.
- • Some interior plastics feel less premium than rivals.
- • Steering can lack feedback, not the most engaging drive.
- • Resale value might not be as strong as some German competitors.
Specifications:
Specifications are compared to those of the previous generation(III (facelift 2015): 2015 - 2018).
| General: | |
|---|---|
| Brand: | Toyota |
| Model: | Avensis |
| Generation: | II Wagon |
| Modification (Engine): | 2.2 D-CAT (177 Hp) |
| Start of production: | June, 2006 |
| End of production: | January, 2009 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Station wagon (estate) |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 177 Hp @ 4000 rpm. Same horsepower |
| Power per litre: | 79.3 Hp/l [5mm more] |
| Torque: | 400 Nm @ 2000-2600 rpm. |
| Engine Model/Code: | 2AD-FHV More details about the engine 2AD-FHV |
| Engine displacement: | 2231 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Diesel Commonrail |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | DOHC |
| Engine oil capacity: | 5.9 l |
| Coolant: | 8 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 86 mm mm |
| Piston Stroke: | 96 mm mm |
| Compression ratio: | 15.8:1 |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 5.2 l/100 km |
| Fuel consumption (economy) - extra urban: | 7.6 l/100 km |
| Fuel consumption (economy) - combined: | 6.1 l/100 km |
| Emission standard: | Euro 4 |
| Acceleration 0 - 100 km/h: | 8.6 sec |
| Acceleration 0 - 62 mph: | 8.6 sec |
| Maximum speed: | 220 km/h |
| Weight-to-power ratio: | 8.7 kg/Hp, 115.3 Hp/tonne |
| Weight-to-torque ratio: | 3.8 kg/Nm, 260.6 Nm/tonne |
| Acceleration 0 - 60 mph: | 8.2 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1535-1585 |
| Max. weight: | 1970 |
| Max. roof load: | 90 kg |
| Max load: | 385-435 |
| Trunk (boot) space - maximum: | 1500 l |
| Trunk (boot) space - minimum: | 520 l |
| Permitted trailer load with brakes (12%): | 1300 kg |
| Fuel tank capacity: | 60 l |
| Permitted trailer load without brakes: | 500 kg |
| Permitted towbar download: | 75 kg |
| Permitted trailer load with brakes (8%): | 1500 kg |
| Size: | |
|---|---|
| Length: | 4715 mm mm [5mm more] |
| Width: | 1760 mm mm [50mm less] |
| Height: | 1525 mm mm [45mm more] |
| Wheelbase: | 2700 mm mm [Same wheelbase.] |
| Front track: | 1505 mm |
| Rear (Back) track: | 1510 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 6 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Double wishbone |
