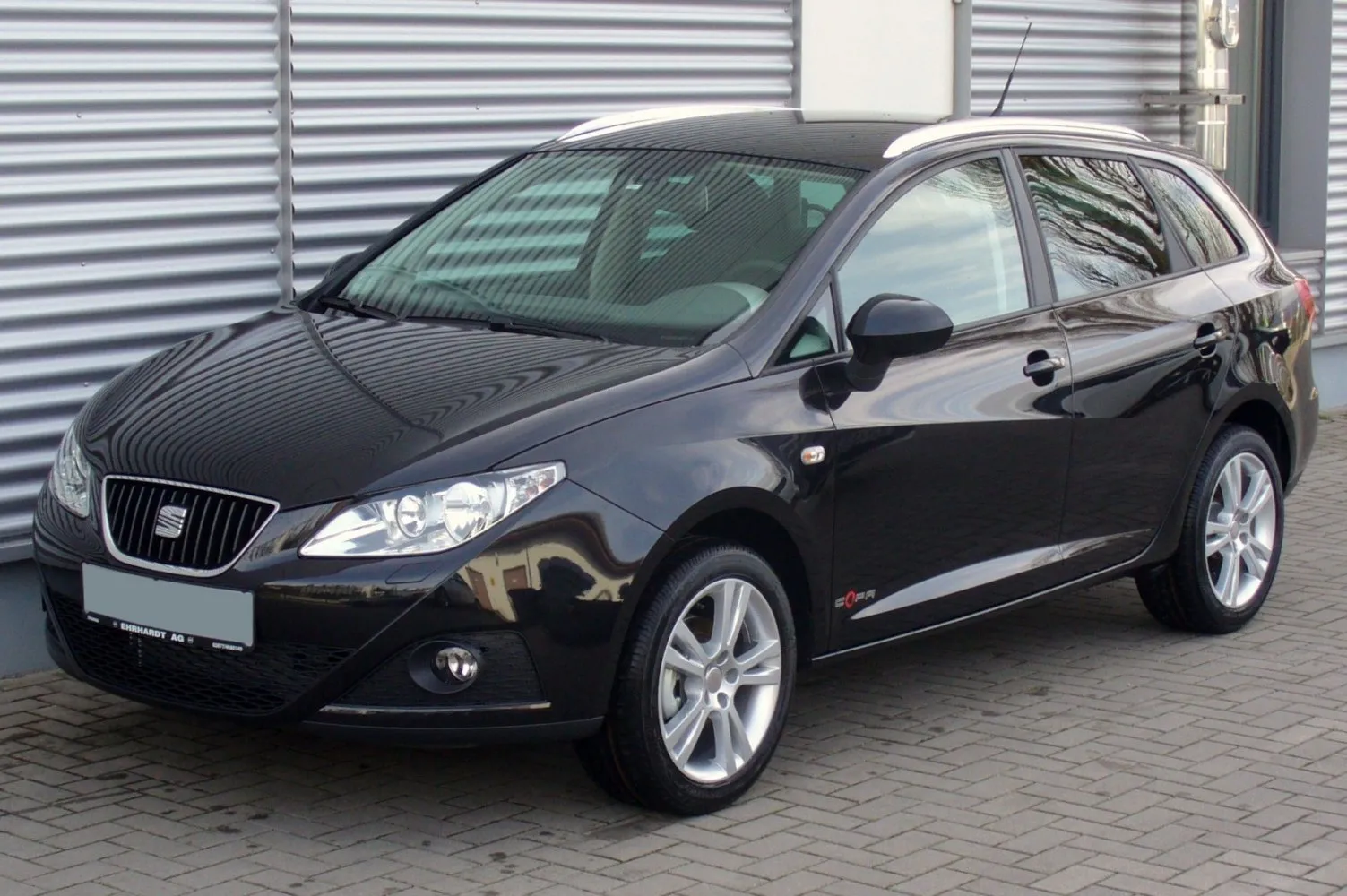

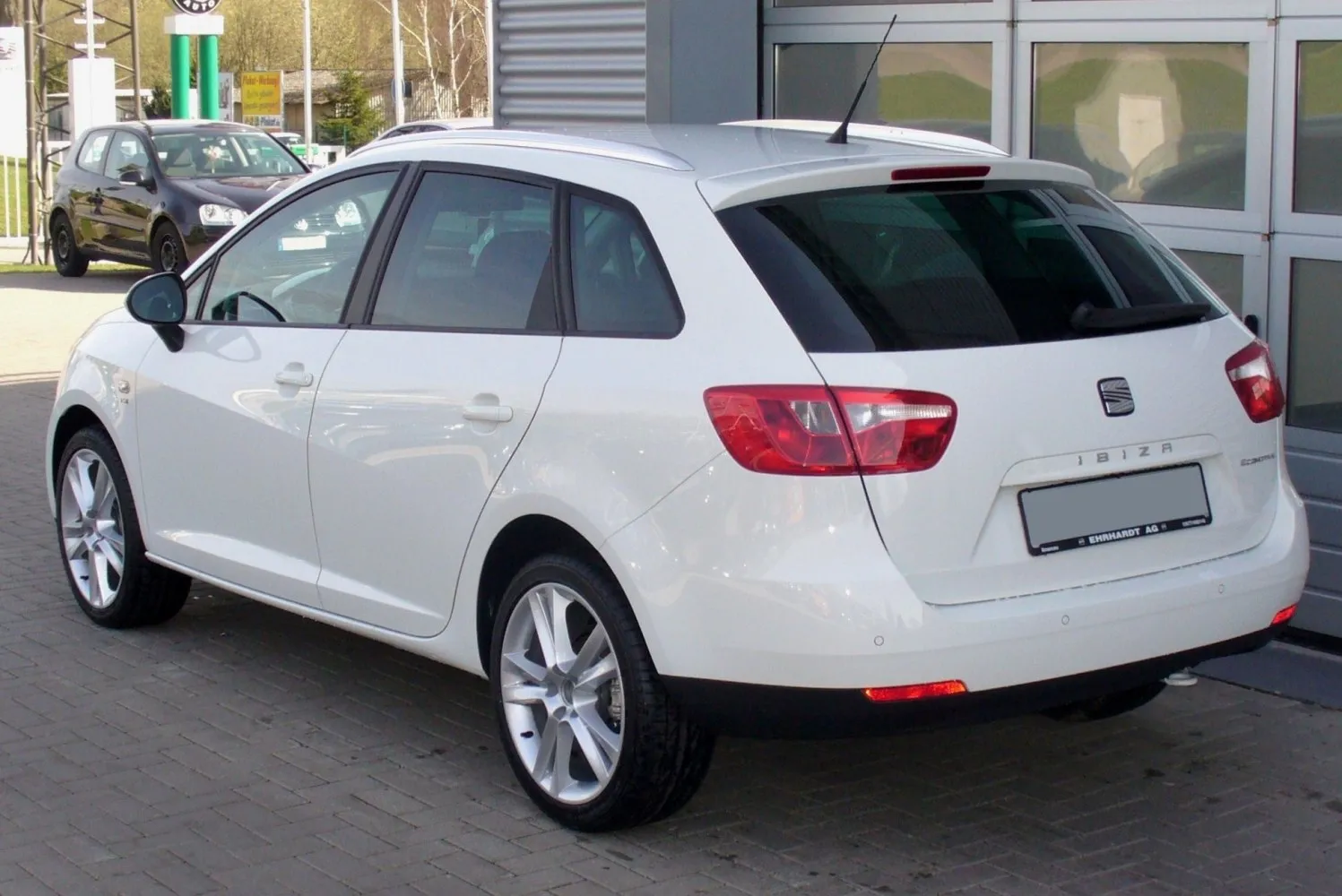

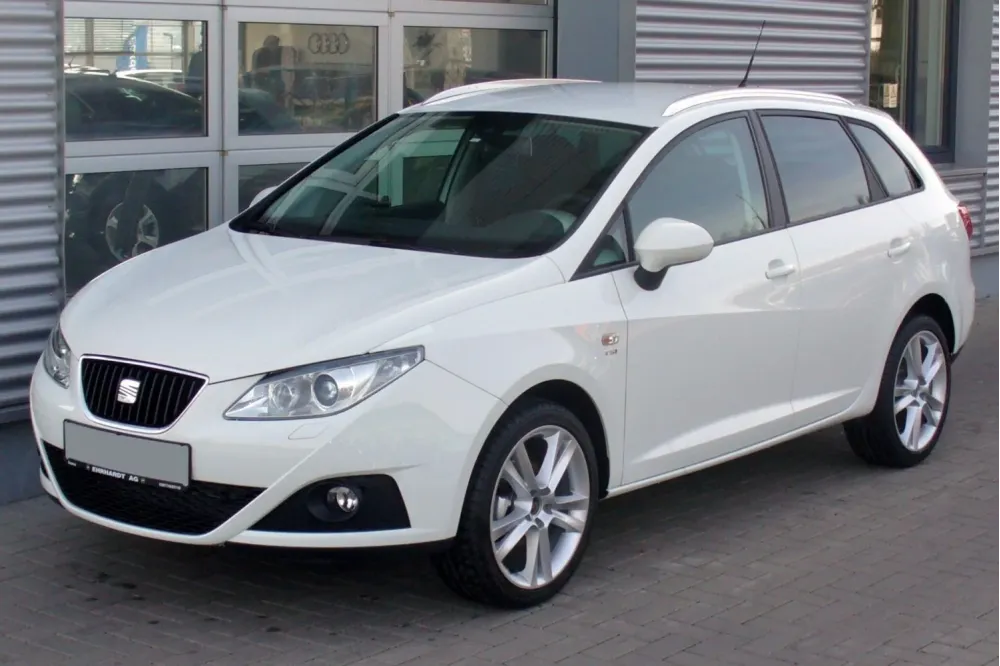

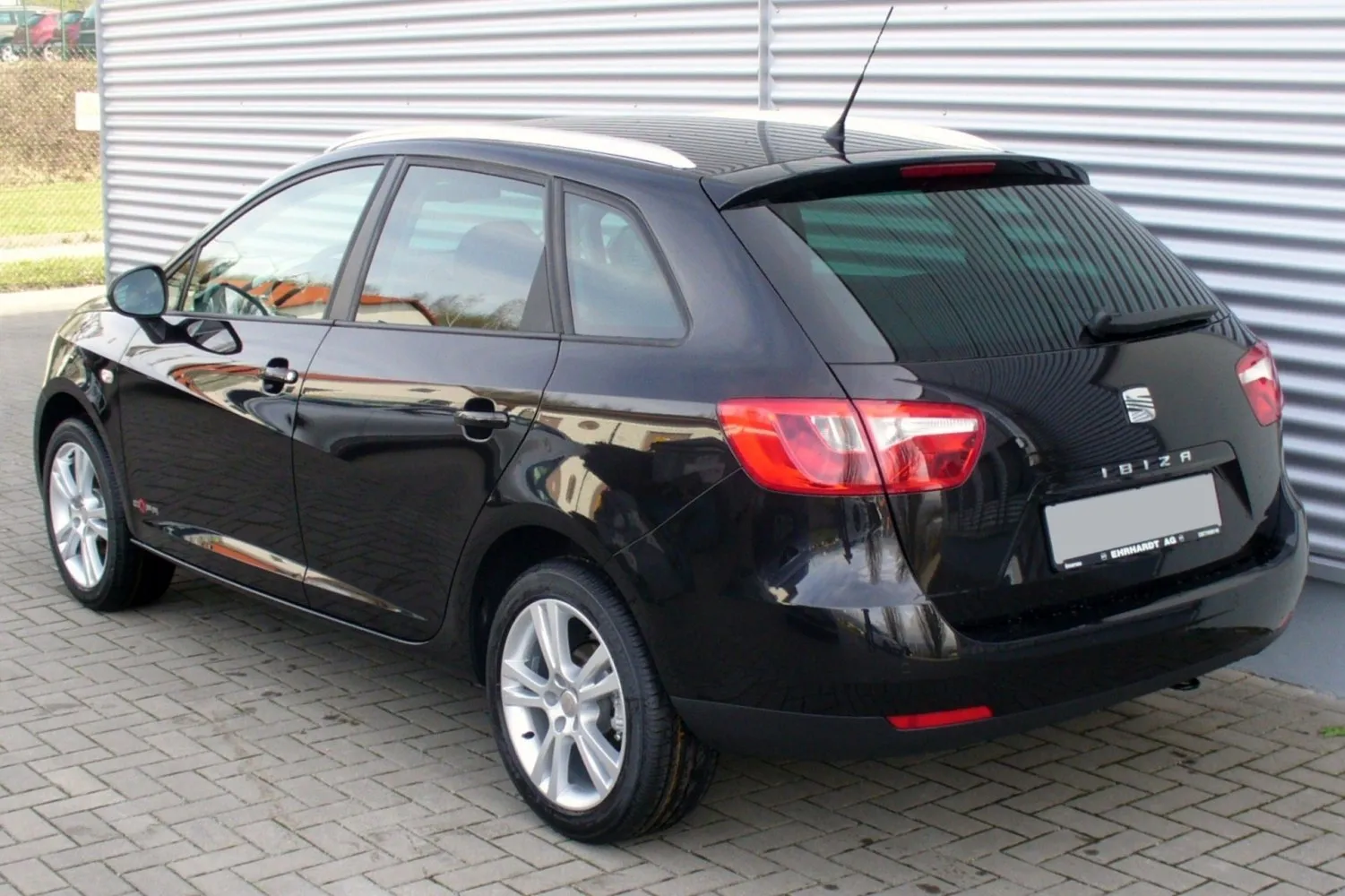

Seat Ibiza IV ST 1.2 (70 Hp)
Seat Ibiza:
The SEAT Ibiza is a supermini car that has been manufactured by Spanish car manufacturer SEAT since 1984. It is SEAT's best-selling car. The Ibiza is named after the Spanish island of Ibiza and was the second SEAT model to be named after a Spanish location, after the SEAT Málaga. It was introduced at the 1984 Paris Motor Show as the first car developed by SEAT as an independent company, although it was designed by SEAT in collaboration with well-known firms including Italdesign, Karmann, and Porsche....(Read more on Wikipedia)
IV ST Overview:
Seat Ibiza (IV ST). With 112 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~7.3 l/100km). Weighing only 1035 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 14.6 s). The top speed reaches 163 km/h. A car with an extended rear cargo area, combining passenger comfort with increased storage. Seating for 5 makes it ideal for daily use.
Pros and Cons:
Pros:
- • Efficiency-focused engine (70 hp), ideal for city commuting.
- • Steady and predictable acceleration (0-100 km/h in 14.6 sec).
- • Exceptional fuel efficiency: 5.5 L/100 km.
- • Ventilated disc brakes for reliable cooling and stopping power.
- • Standard trunk space (430 L) suitable for daily needs.
Cons:
- • Meets EURO 5 emission standard; check for local urban restriction zones.
- • Previous generation model; may lack the latest driver-assist technologies.
Specifications:
Specifications are compared to those of the previous generation(IV: 2009 - 2012).
| General: |
| Brand: | Seat |
|---|
| Model: | Ibiza |
|---|
| Generation: | IV ST |
|---|
| Modification (Engine): | 1.2 (70 Hp) |
|---|
| Start of production: | 2010 |
|---|
| End of production: | 2012 |
|---|
| Powertrain Architecture: | Internal Combustion engine |
|---|
| Body type: | Station wagon (estate) |
|---|
| Seats: | 5 |
|---|
| Doors: | 5 |
|---|
| Engine: |
| Power: | 70 Hp @ 5400 rpm. Same horsepower |
|---|
| Power per litre: | 58.4 Hp/l [139mm more] |
|---|
| Torque: | 112 Nm @ 3000 rpm. |
|---|
| Engine Model/Code: | BZG, CGPA, CJLB More details about the engine BZG, CGPA, CJLB |
|---|
| Engine displacement: | 1198 |
|---|
| Number of cylinders: | 3 |
|---|
| Engine configuration: | Inline |
|---|
| Number of valves per cylinder: | 4 |
|---|
| Fuel injection system: | Multi-port manifold injection |
|---|
| Engine aspiration: | Naturally aspirated engine |
|---|
| Valvetrain: | DOHC |
|---|
| Engine oil capacity: | 3 l |
|---|
| Coolant: | 5.6 l |
|---|
| Engine layout: | Front, Transverse |
|---|
| Cylinder Bore: | 76.5 mm mm |
|---|
| Piston Stroke: | 86.9 mm mm |
|---|
| Compression ratio: | 10.5:1 |
|---|
| Performance: |
| Fuel Type: | Petrol (Gasoline) |
|---|
| Fuel consumption (economy) - urban: | 7.3 l/100 km |
|---|
| Fuel consumption (economy) - extra urban: | 4.5 l/100 km |
|---|
| Fuel consumption (economy) - combined (NEDC): | 5.5 l/100 km |
|---|
| Fuel consumption (economy) - urban (NEDC): | 7.3 l/100 km |
|---|
| Fuel consumption (economy) - extra urban (NEDC): | 4.5 l/100 km |
|---|
| Fuel consumption (economy) - combined: | 5.5 l/100 km |
|---|
| Emission standard: | Euro 5 |
|---|
| Acceleration 0 - 100 km/h: | 14.6 sec |
|---|
| Acceleration 0 - 62 mph: | 14.6 sec |
|---|
| Maximum speed: | 163 km/h |
|---|
| Weight-to-power ratio: | 14.8 kg/Hp, 67.6 Hp/tonne |
|---|
| Weight-to-torque ratio: | 9.2 kg/Nm, 108.2 Nm/tonne |
|---|
| Acceleration 0 - 60 mph: | 13.9 sec |
|---|
| Space: |
| Kerb Weight: | 1035 |
|---|
| Max. weight: | 1550 |
|---|
| Max load: | 515 |
|---|
| Trunk (boot) space - minimum: | 430 l |
|---|
| Permitted trailer load with brakes (12%): | 800 kg |
|---|
| Fuel tank capacity: | 45 l |
|---|
| Size: |
| Length: | 4227 mm mm [139mm more] |
|---|
| Width: | 1693 mm mm [Same width.] |
|---|
| Height: | 1445 mm mm [4mm more] |
|---|
| Wheelbase: | 2469 mm mm [Same wheelbase.] |
|---|
| Front track: | 1465 mm |
|---|
| Rear (Back) track: | 1457 mm |
|---|
| Minimum turning circle (turning diameter): | 10.48 m [above average] |
|---|
| Powertrain: |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
|---|
| Drive wheel | Front wheel drive |
|---|
| Number of gears | 5 |
|---|
| Transmission type | Manual |
|---|
| Front brakes | Ventilated discs, 256x22 mm [Best for performance and cooling.] |
|---|
| Rear brakes | Drum, 200x40 mm [bad for performance and cooling.] |
|---|
| Assisting systems | ABS (Anti-lock braking system) |
|---|
| Steering type | Steering rack and pinion |
|---|
| Power steering | Electric Steering |
|---|
| Tires size | 175/70 R14; 185/60 R15 |
|---|
| Wheel rims size | 5J x 14; 6J x 15 |
|---|
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
|---|
| Rear suspension | Semi-dependent beam with stabilizer lateral stability |
|---|
