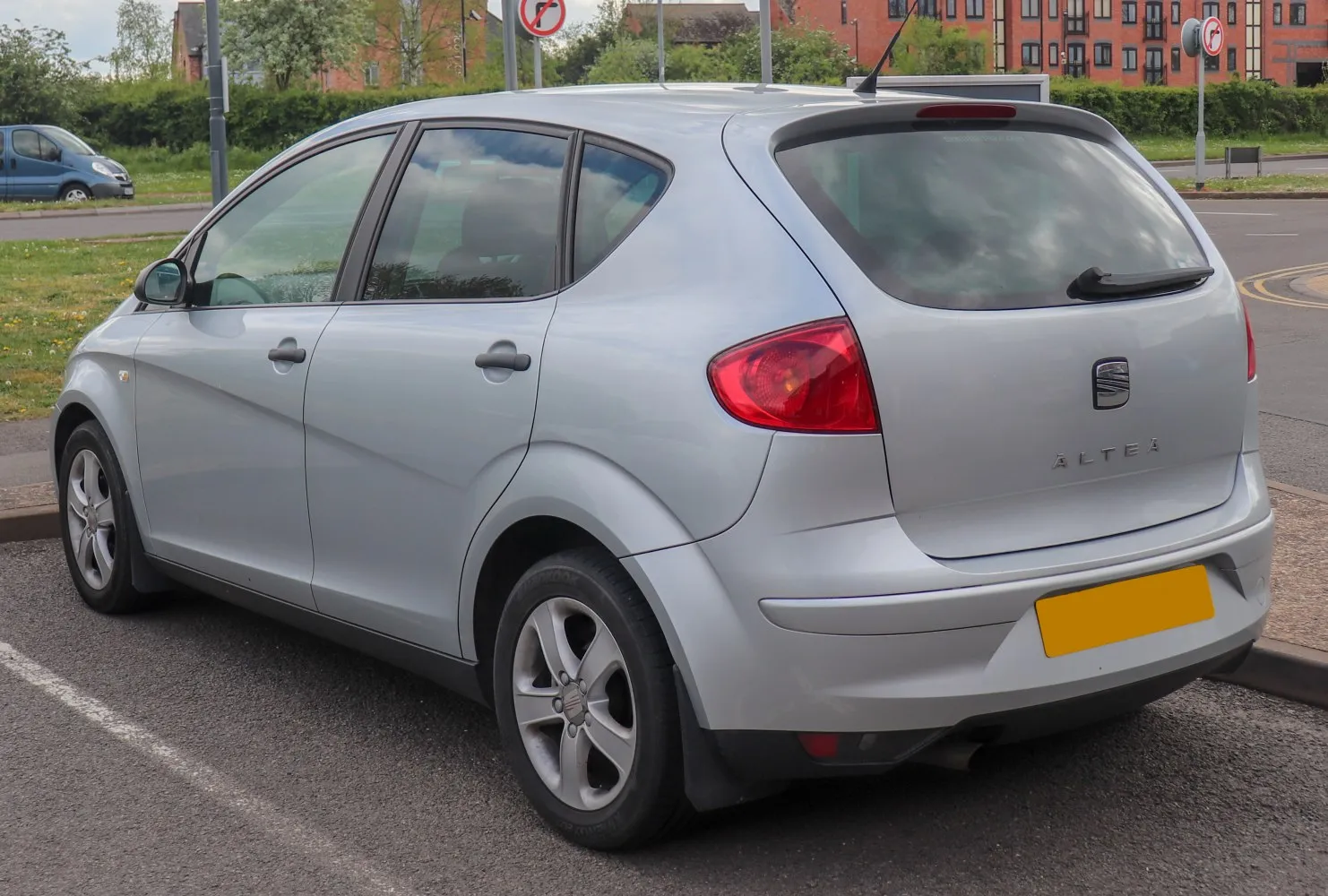

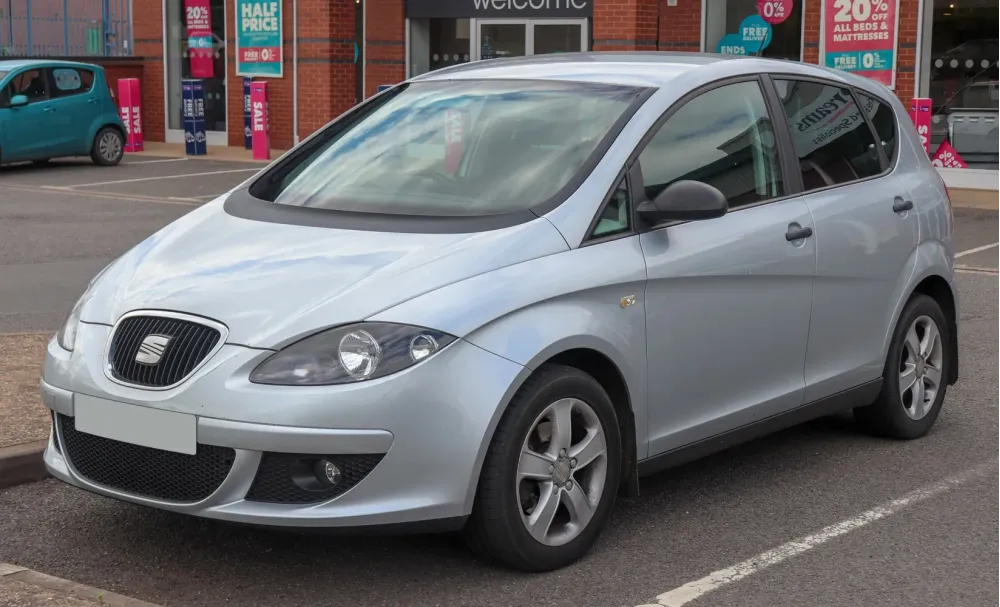

Seat Altea 5P 2.0 TDI (140 Hp)
Seat Altea:
The SEAT Altea is an automobile produced by the Spanish automaker SEAT from 2004 to 2015 being previewed by the Salsa Emoción concept. As a compact multi-purpose vehicle , the car was designed by the Italian Walter de Silva, and was launched in March 2004, as the first example of SEAT's new corporate look. The third generation Toledo was identical, except for the addition of a larger boot similar to the one in the Renault Vel Satis. It was launched at the 2004 Geneva Motor Show.
Another extended version, the Altea XL, is also available. In 2007, the Altea Freetrack, with four-wheel drive and higher suspension, was released....(Read more on Wikipedia)
5P Overview:
Seat Altea (5P). With 320 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~7.7 l/100km). With a weight of 1430 kg, it falls in the mid‑range. Front‑wheel drive delivers efficiency and easy handling. Acceleration is relatively slow (0–100 km/h in 9.9 s). The top speed reaches 201 km/h. A spacious vehicle designed to transport passengers comfortably, often with sliding doors. Seating for 5 makes it ideal for daily use.
Pros and Cons:
Pros:
- • Efficiency-focused engine (102 hp), ideal for city commuting.
- • Steady and predictable acceleration (0-100 km/h in 12.8 sec).
- • Balanced fuel consumption of 7.7 L/100 km for its class.
- • Ventilated disc brakes for reliable cooling and stopping power.
- • Standard trunk space (409 L) suitable for daily needs.
Cons:
- • Previous generation model; may lack the latest driver-assist technologies.
Specifications:
Specifications are compared to those of the previous generation(Freetrack: June, 2007 - May, 2009).
| General: |
| Brand: | Seat |
|---|
| Model: | Altea |
|---|
| Generation: | 5P |
|---|
| Modification (Engine): | 2.0 TDI (140 Hp) |
|---|
| Start of production: | March, 2004 |
|---|
| End of production: | 2009 |
|---|
| Powertrain Architecture: | Internal Combustion engine |
|---|
| Body type: | Minivan |
|---|
| Seats: | 5 |
|---|
| Doors: | 5 |
|---|
| Engine: |
| Power: | 140 Hp @ 4000 rpm. Same horsepower |
|---|
| Power per litre: | 71.1 Hp/l [213mm less] |
|---|
| Torque: | 320 Nm @ 2500 rpm. |
|---|
| Engine Model/Code: | EA188 / BKD More details about the engine EA188 / BKD |
|---|
| Engine displacement: | 1968 |
|---|
| Number of cylinders: | 4 |
|---|
| Engine configuration: | Inline |
|---|
| Number of valves per cylinder: | 2 |
|---|
| Fuel injection system: | Pump-nozzle (Unit Injector) |
|---|
| Engine aspiration: | Turbocharger, Intercooler |
|---|
| Engine oil capacity: | 3.8 l |
|---|
| Coolant: | 8 l |
|---|
| Engine layout: | Front, Transverse |
|---|
| Cylinder Bore: | 81 mm |
|---|
| Piston Stroke: | 95.5 mm |
|---|
| Compression ratio: | 18.5:1 |
|---|
| Performance: |
| Fuel Type: | Diesel |
|---|
| Fuel consumption (economy) - urban: | 7.7 l/100 km |
|---|
| Fuel consumption (economy) - extra urban: | 4.8 l/100 km |
|---|
| Fuel consumption (economy) - combined: | 5.9 l/100 km |
|---|
| Acceleration 0 - 100 km/h: | 9.9 sec |
|---|
| Acceleration 0 - 62 mph: | 9.9 sec |
|---|
| Maximum speed: | 201 km/h |
|---|
| Weight-to-power ratio: | 10.2 kg/Hp, 97.9 Hp/tonne |
|---|
| Weight-to-torque ratio: | 4.5 kg/Nm, 223.8 Nm/tonne |
|---|
| Acceleration 0 - 60 mph: | 9.4 sec |
|---|
| Space: |
| Kerb Weight: | 1430 |
|---|
| Max. weight: | 2025 |
|---|
| Max load: | 595 |
|---|
| Trunk (boot) space - maximum: | 409 l |
|---|
| Trunk (boot) space - minimum: | 409 l |
|---|
| Fuel tank capacity: | 55 l |
|---|
| Size: |
| Length: | 4280 mm [213mm less] |
|---|
| Width: | 1768 mm [20mm less] |
|---|
| Height: | 1568 mm [54mm less] |
|---|
| Wheelbase: | 2578 mm [2mm more] |
|---|
| Front track: | 1534 mm |
|---|
| Rear (Back) track: | 1523 mm |
|---|
| Minimum turning circle (turning diameter): | 10.9 m [above average] |
|---|
| Powertrain: |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
|---|
| Drive wheel | Front wheel drive |
|---|
| Number of gears | 6 |
|---|
| Transmission type | Manual |
|---|
| Front brakes | Ventilated discs [Best for performance and cooling.] |
|---|
| Rear brakes | Disc [above average] |
|---|
| Assisting systems | ABS (Anti-lock braking system) |
|---|
| Steering type | Steering rack and pinion |
|---|
| Power steering | Electric Steering |
|---|
| Tires size | 205/55 R16 |
|---|
| Wheel rims size | 6.5J x 16 |
|---|
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
|---|
| Rear suspension | Several levers and rods |
|---|
