Everything you need to know about specifications and performance - Saab 9-3 1998 - 2.2 TiD (115 Hp)

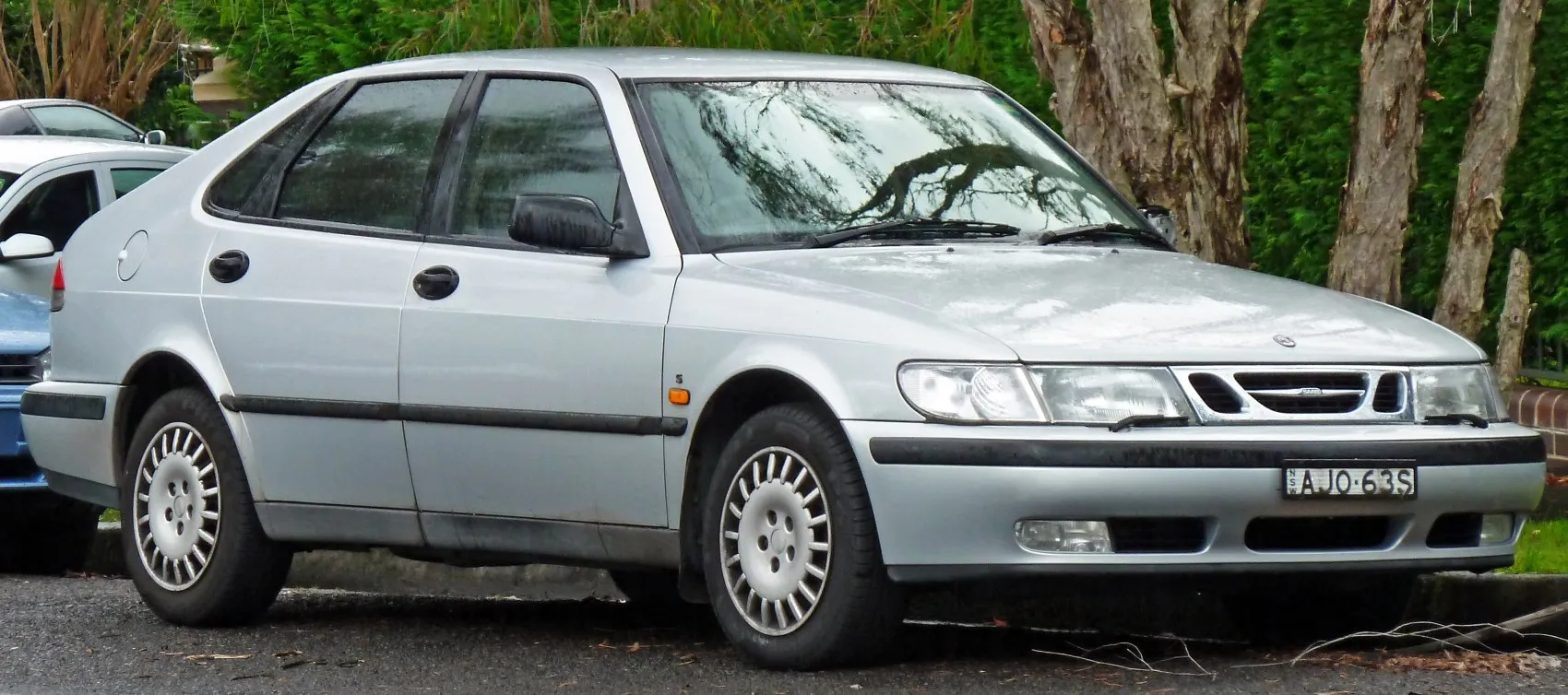

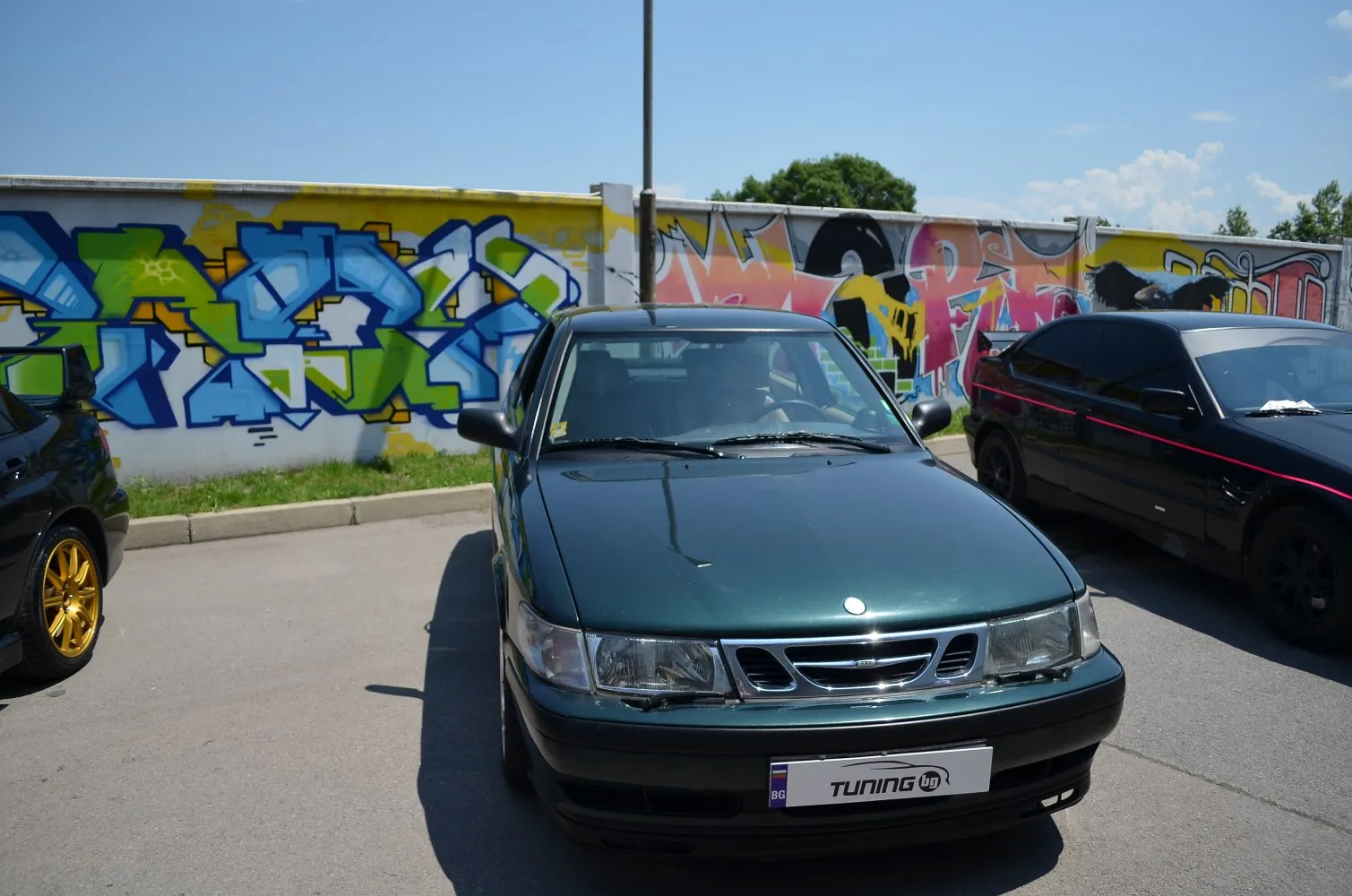

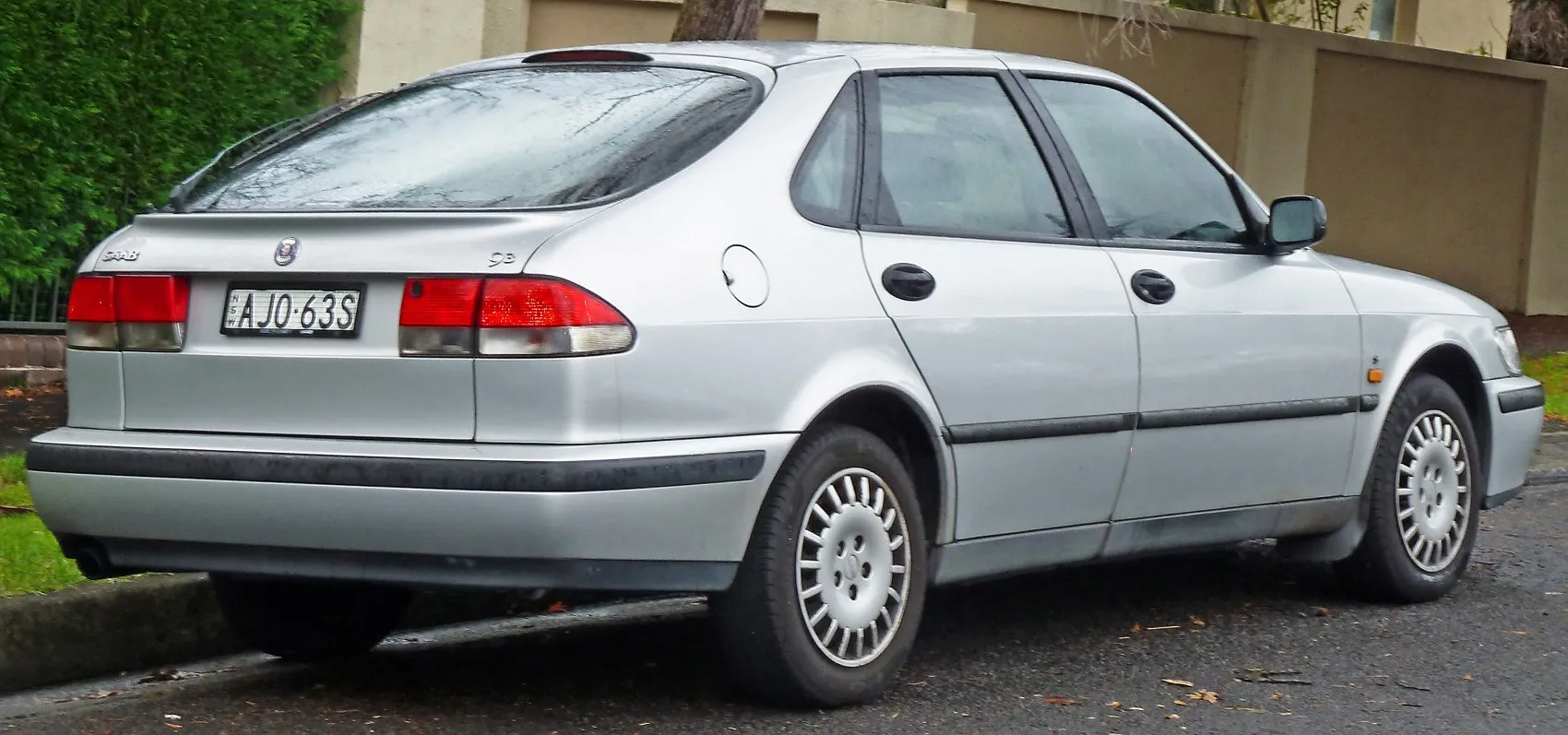

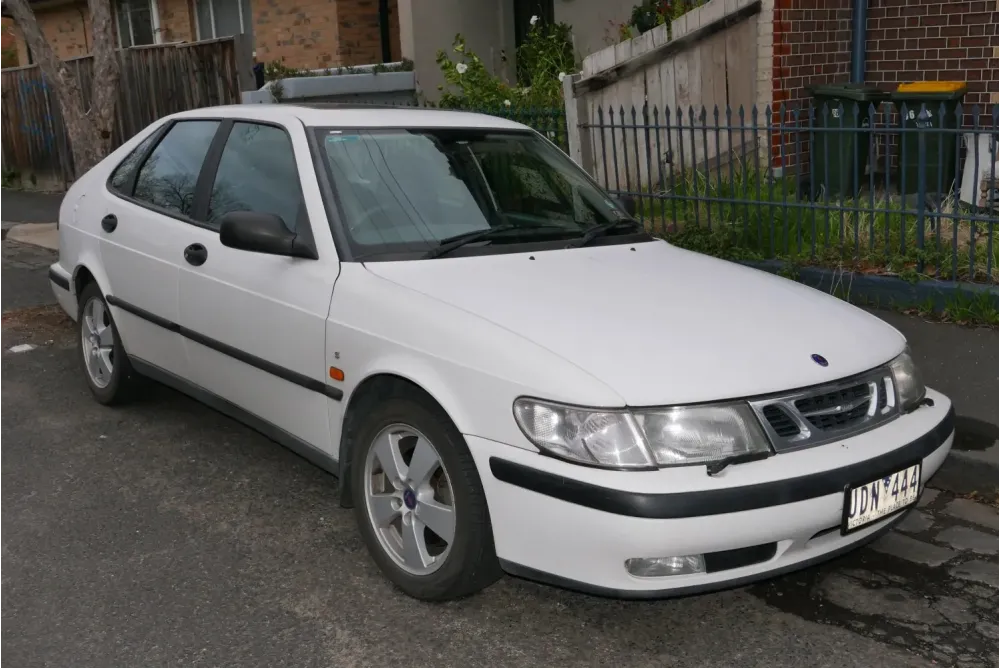

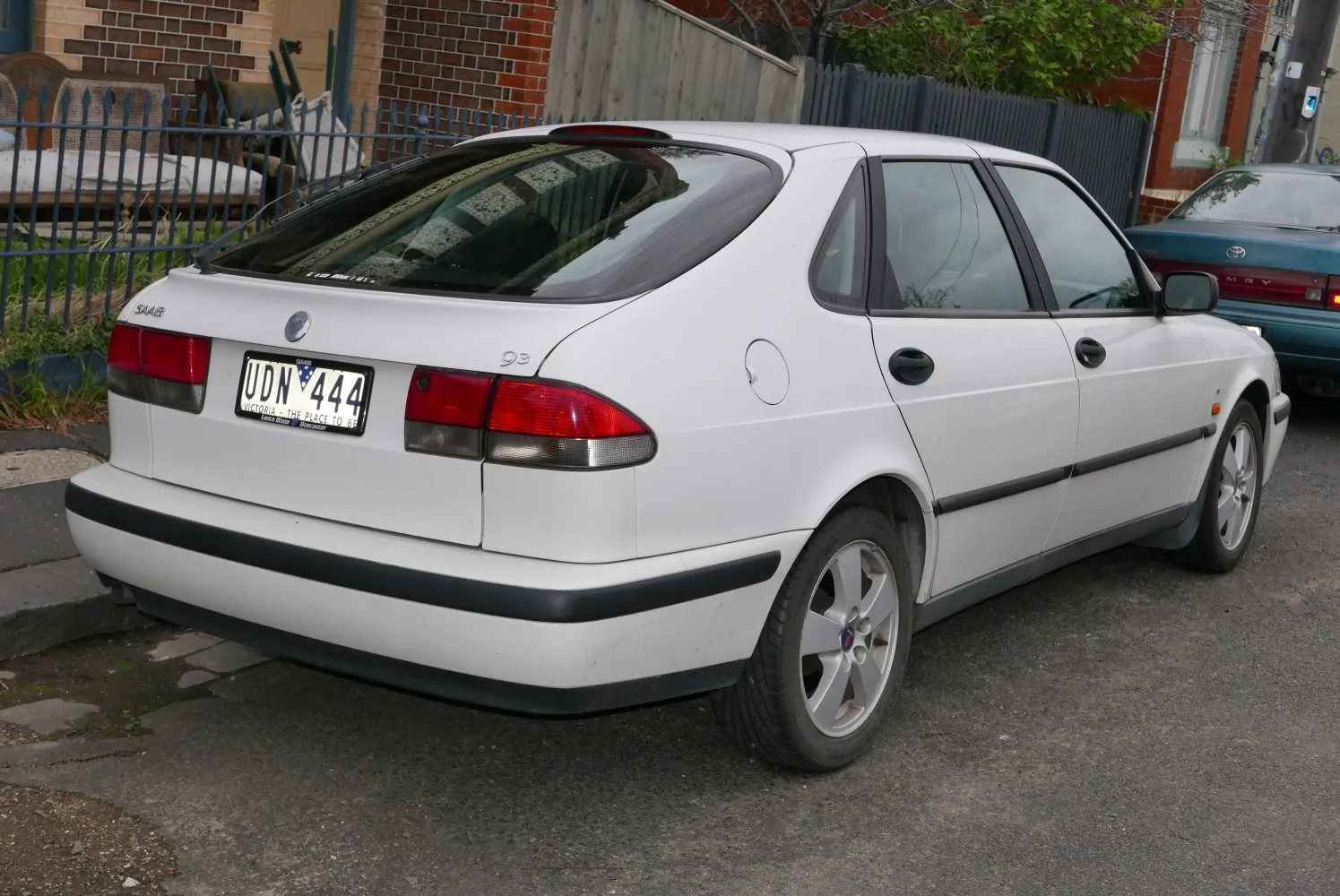

Full specifications and technical details 1998 Saab 9-3 I 2.2 TiD (115 Hp)

Overview:

What is the engine capacity of a Saab 9-3 1998?
The engine capacity of the Saab 9-3 1998 is 2171.

Saab 9-3 1998 How many horsepower?
The engine power of the Saab 9-3 1998 is 115 Hp @ 4300 rpm..

What is the Saab 9-3 1998 engine?
Saab 9-3 1998 engine is D223L. (Click to see other cars using the same engine)

What is the recommended oil for a Saab 9-3 1998 engine?
The recommended oil for a Saab 9-3 1998 car engine is 5W-40.

What type of camshaft transmission system is used in a Saab 9-3 1998 engine?
chain is used to transmit motion.

General:

Brand: Saab
Model: 9-3
Generation: I
Modification (Engine): 2.2 TiD (115 Hp)
Start of production: 1998
End of production: 2000
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 3-5

Engine:

Power: 115 hp @ 4300 rpm.
Power per litre: 53 hp/l
Torque: 260 nm @ 1900 rpm.
Engine Model/Code:D223L
Engine displacement: 2171
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Direct injection
Engine aspiration: Turbocharger
Valvetrain: OHC
Engine oil capacity: 5.5 l
Coolant: 8.3 l
Engine layout: Front, Transverse
Cylinder Bore: 84 mm
Piston Stroke: 98 mm
Compression ratio: 19:1
recommended engine oil: 5W-40
euro standards: EURO 2 (1st version)
EURO 3 (2nd version)
engine lifespan (km): ~320 000
weight (kg): 195
timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 8.9 l/100 km
Fuel consumption (economy) - extra urban: 5.4 l/100 km
Acceleration 0 - 100 km/h: 10.9 sec
Acceleration 0 - 62 mph: 10.9 sec
Maximum speed: 200 km/h
Weight-to-power ratio: 11.7 kg/Hp, 85.2 Hp/tonne
Weight-to-torque ratio: 5.2 kg/Nm, 192.6 Nm/tonne
Acceleration 0 - 60 mph: 10.4 sec

Space:

Kerb Weight (kg): 1350
Max. weight (kg): 1910
Max load (kg): 560
Trunk (boot) space - maximum: 1314 l
Trunk (boot) space - minimum: 494 l
Fuel tank capacity: 68 l

dimensions:

Length: 4629 mm
Width: 1711 mm
Height: 1428 mm
wheelbase: 2605 mm
Front track: 1452 mm
Rear (Back) track: 1442 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 185/65 R15
Wheel rims size: 15
Front suspension: Spring Strut
Rear suspension: Coil Spring

See also

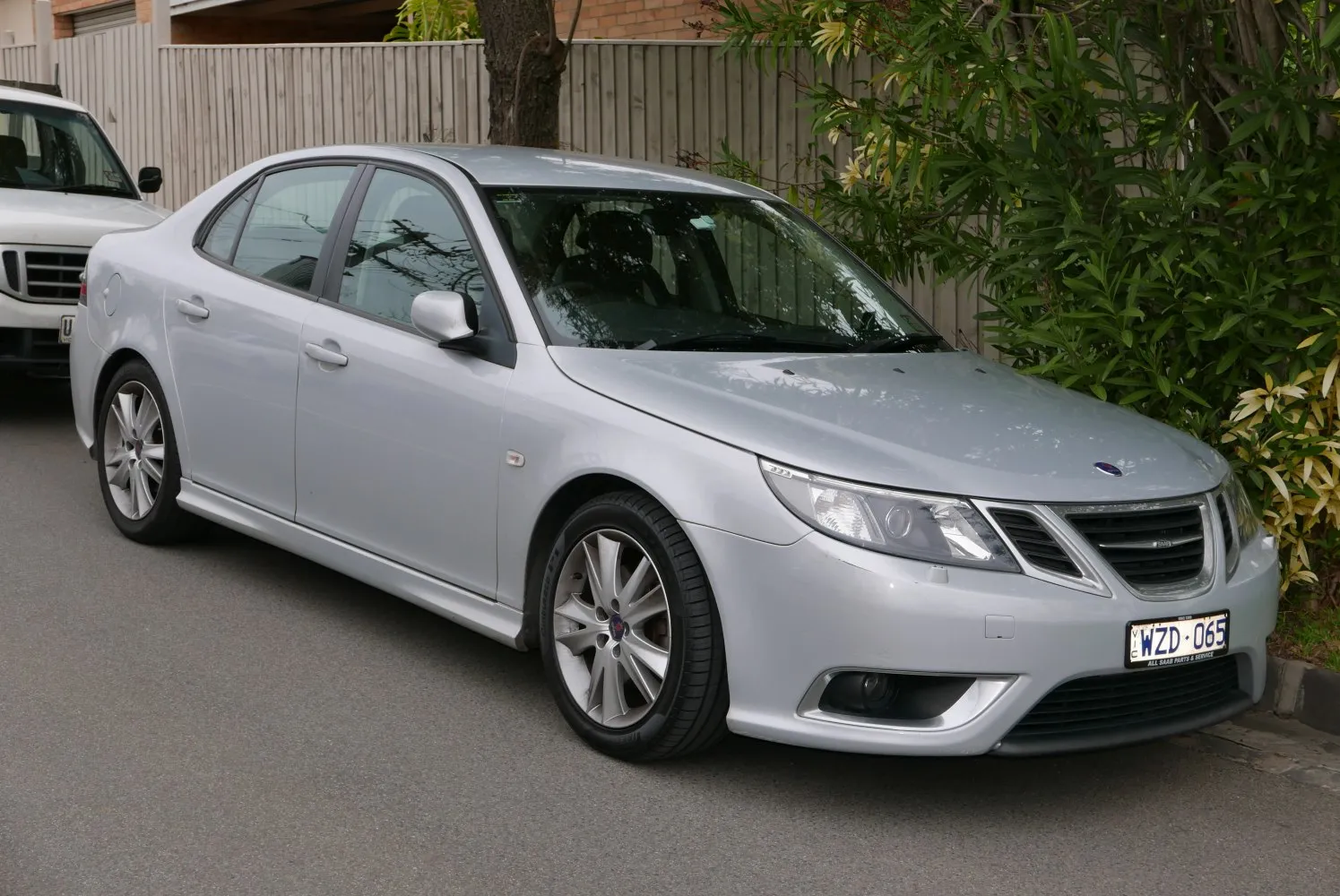

2007 Saab 9-3 Sedan II (facelift 2007) 1.8 t Biopower (175 Hp) thumb image
