Everything you need to know about specifications and performance - Peugeot 207 2009 - 1.6 HDi (109 Hp)

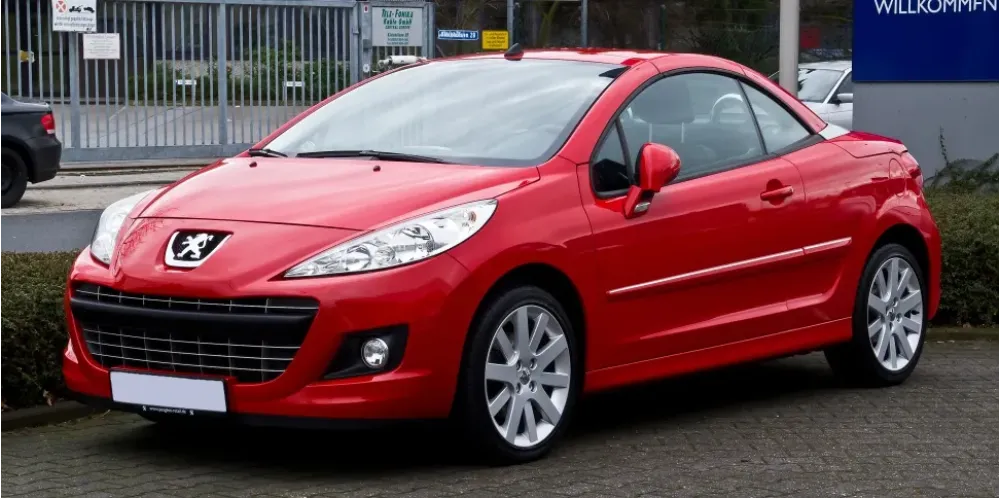

Full specifications and technical details 2009 Peugeot 207 CC (facelift 2009) 1.6 HDi (109 Hp)

Overview:

What is the engine capacity of a Peugeot 207 2009?
The engine capacity of the Peugeot 207 2009 is 1560.

Peugeot 207 2009 How many horsepower?
The engine power of the Peugeot 207 2009 is 109 Hp @ 4000 rpm..

What is the Peugeot 207 2009 engine?
Peugeot 207 2009 engine is 9HZ DV6TED4. (Click to see other cars using the same engine)

How much gasoline does a Peugeot 207 2009 consume?
The Peugeot 207 2009 consumes 5 liters of gasoline per 100 km

General:

Brand: Peugeot
Model: 207
Generation: CC (facelift 2009)
Modification (Engine): 1.6 HDi (109 Hp)
Start of production: 2009
End of production: 2009
Powertrain Architecture: Internal Combustion Engine
Body type:Coupe - Cabriolet
Seats: 4
Doors: 2

Engine:

Power: 109 hp @ 4000 rpm.
Power per litre: 69.9 hp/l
Torque: 240 nm @ 1750 rpm.
Engine Model/Code:9HZ DV6TED4
Engine displacement: 1560
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Diesel Commonrail
Engine aspiration: Turbocharger, Intercooler
Valvetrain: DOHC
Engine oil capacity: 3.75 l
Coolant: 5.6 l
Engine layout: Front, Transverse
Cylinder Bore: 75 mm
Piston Stroke: 88.3 mm
Compression ratio: 17.6:1

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 6.2 l/100 km
Fuel consumption (economy) - extra urban: 4.3 l/100 km
Fuel consumption (economy) - combined: 5 l/100 km
Emission standard: Euro 4
Acceleration 0 - 100 km/h: 10.9 sec
Acceleration 0 - 62 mph: 10.9 sec
Maximum speed: 193 km/h
Weight-to-power ratio: 12.9 kg/Hp, 77.6 Hp/tonne
Weight-to-torque ratio: 5.9 kg/Nm, 170.8 Nm/tonne
Acceleration 0 - 60 mph: 10.4 sec

Space:

Kerb Weight (kg): 1405
Max. weight (kg): 1785
Max load (kg): 380
Trunk (boot) space - maximum: 370 l
Trunk (boot) space - minimum: 145 l
Permitted trailer load with brakes (12%): 1070 kg
Fuel tank capacity: 50 l
Permitted trailer load without brakes: 600 kg

dimensions:

Length: 4044 mm
Width: 1748 mm
Height: 1393 mm
wheelbase: 2540 mm
Width with mirrors folded: 1818 mm
Width including mirrors: 1972 mm
Front track: 1469 mm
Rear (Back) track: 1470 mm
Minimum turning circle (turning diameter): 11.0 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Tires size: 195/55 R16
Wheel rims size: 16
Front suspension: Independent type McPherson
Rear suspension: Semi-independent, coil Spring
