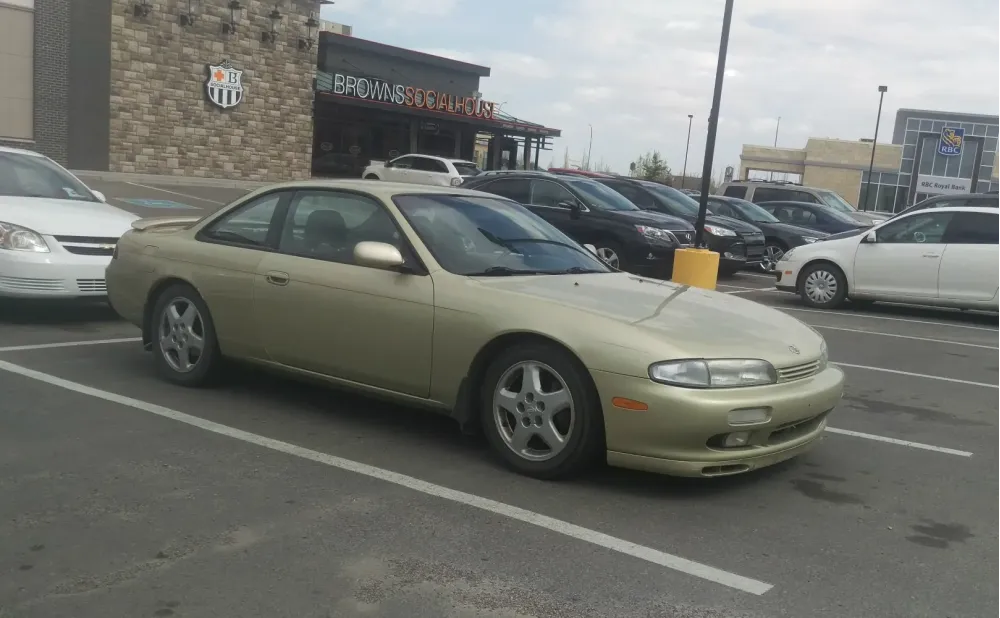

Nissan 240SX Coupe (S14) 2.4 (155 Hp)
Overall Rating
Nissan 240SX:
The Nissan 240SX is a sports compact car that was introduced to the North American market by Nissan in 1988 for the 1989 model year, replacing the outgoing 200SX model. Two distinct generations of the 240SX, the S13 the S14 were produced, based on the Nissan S platform.
All 240SXs were equipped with the 2. 4-liter KA inline-four engine series. The KA24E has a single overhead cam while the KA24DE has dual overhead cams....(Read more on Wikipedia)
Coupe (S14) Overview:
Nissan 240SX (Coupe (S14)). With 217 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~10.7 l/100km). Weighing only 1249 kg, it’s quite light. Rear‑wheel drive offers dynamic handling and sporty feedback. A two-door car with a fixed roof, known for its sporty design and dynamic performance. Seating for 4 makes it ideal for daily use.
2.4 (155 Hp) Verdict:
Performance Verdict
The KA24DE engine, while not a powerhouse at 155 hp, provides robust low-end torque, making it a reliable and forgiving engine for daily driving and learning RWD dynamics. It's often considered a solid base for forced induction or engine swaps due to its durability.
Fuel Economy
With urban consumption around 10.7 l/100 km and extra-urban at 8.4 l/100 km, the 2.4L KA24DE offers reasonable fuel economy for its displacement and era, though it's not exceptionally frugal by modern standards.
Pros and Cons:
Pros:
- • Exceptional chassis and handling dynamics
- • Strong aftermarket support for modifications
- • Reliable and durable KA24DE engine
- • Iconic JDM styling and RWD layout
- • Excellent platform for drifting and track use
Cons:
- • Underpowered KA24DE engine (compared to JDM SR20DET)
- • Prone to rust, especially in older examples
- • Aging interior and lack of modern amenities
- • Rising prices due to collector demand and drift culture
- • Many examples have been heavily modified or abused
Specifications:
Specifications are compared to those of the previous generation(Coupe (S13 facelift 1991): 1991 - 1994).
| General: | |
|---|---|
| Brand: | Nissan |
| Model: | 240SX |
| Generation: | Coupe (S14) |
| Modification (Engine): | 2.4 (155 Hp) |
| Start of production: | 1994 |
| End of production: | 1998 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Coupe |
| Seats: | 4 |
| Doors: | 2 |
| Engine: | |
|---|---|
| Power: | 155 Hp @ 5600 rpm. |
| Power per litre: | 64.9 Hp/l |
| Torque: | 217 Nm @ 4400 rpm. |
| Engine Model/Code: | KA24DE [Same engine] More details about the engine KA24DE |
| Engine displacement: | 2389 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC |
| Engine oil capacity: | 3.8 l |
| Coolant: | 6.9 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 89 mm mm |
| Piston Stroke: | 96 mm mm |
| Compression ratio: | 9.5:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 10.7 l/100 km |
| Fuel consumption (economy) - extra urban: | 8.4 l/100 km |
| Weight-to-power ratio: | 8.1 kg/Hp, 124.1 Hp/tonne |
| Weight-to-torque ratio: | 5.8 kg/Nm, 173.7 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1249 |
| Trunk (boot) space - minimum: | 244 l |
| Fuel tank capacity: | 65 l |
| Permitted trailer load without brakes: | 454 kg |
| Size: | |
|---|---|
| Length: | 4501 mm mm [20mm less] |
| Width: | 1730 mm mm [41mm more] |
| Height: | 1295 mm mm [5mm more] |
| Wheelbase: | 2525 mm mm [51mm more] |
| Front track: | 1481 mm |
| Rear (Back) track: | 1471 mm |
| Minimum turning circle (turning diameter): | 9.6 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs, 252 mm [Best for performance and cooling.] |
| Rear brakes | Disc, 258 mm [above average] |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | Front wheel tires: 195/60 R15; 205/55 R16 |
| Wheel rims size | Front wheel rims: 6J x 15; 6.5J x 16 |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link suspension |
