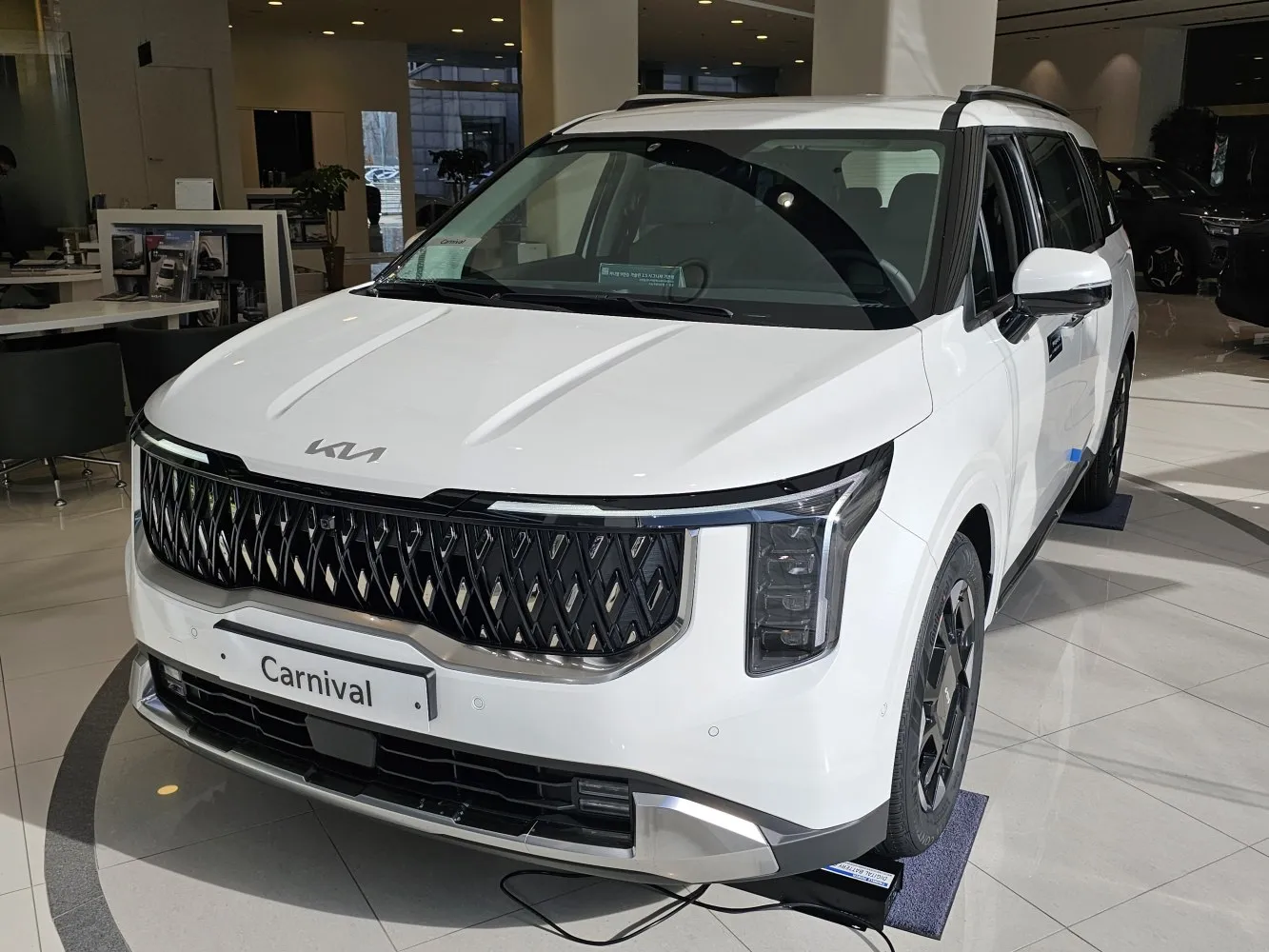

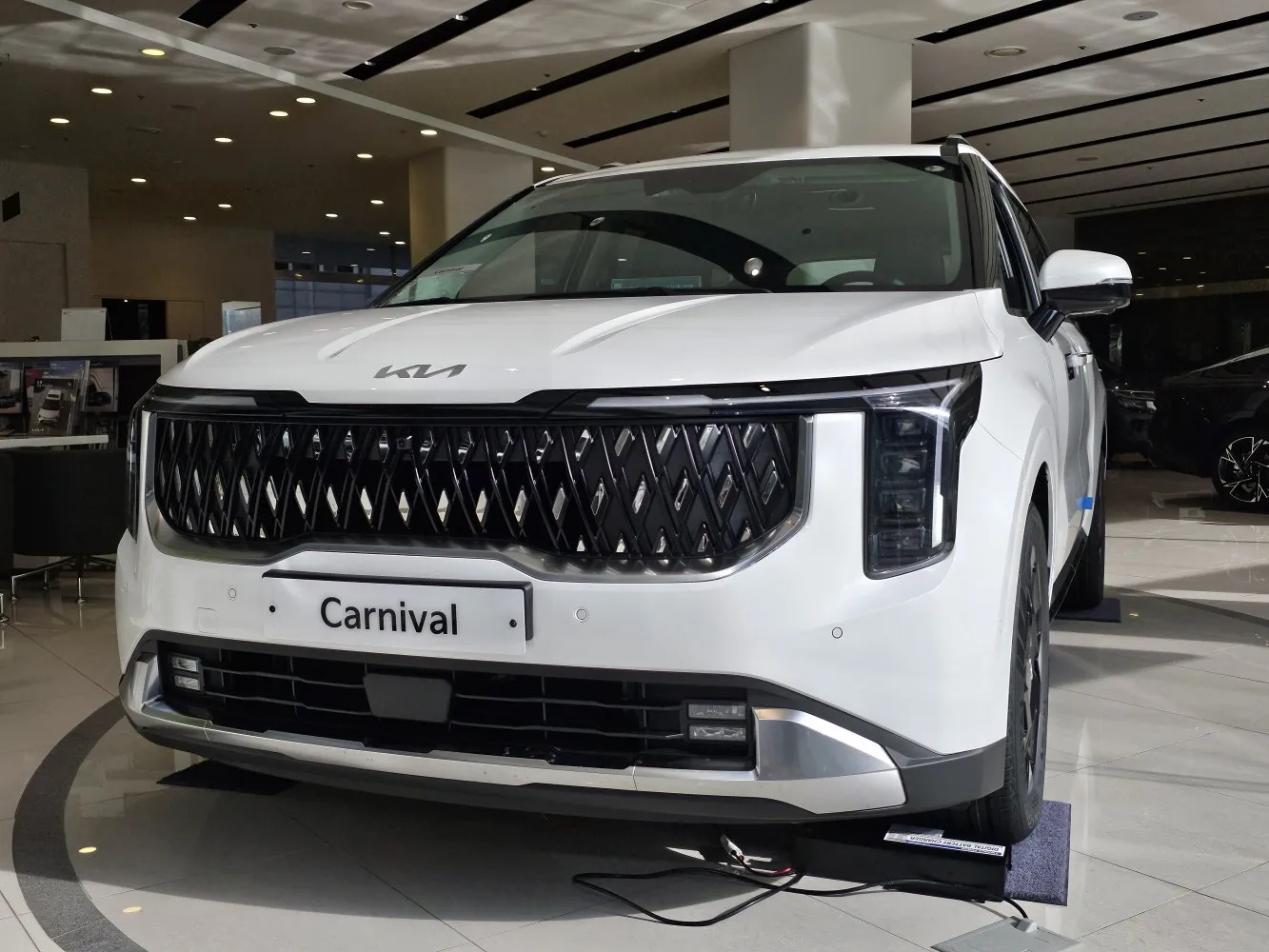

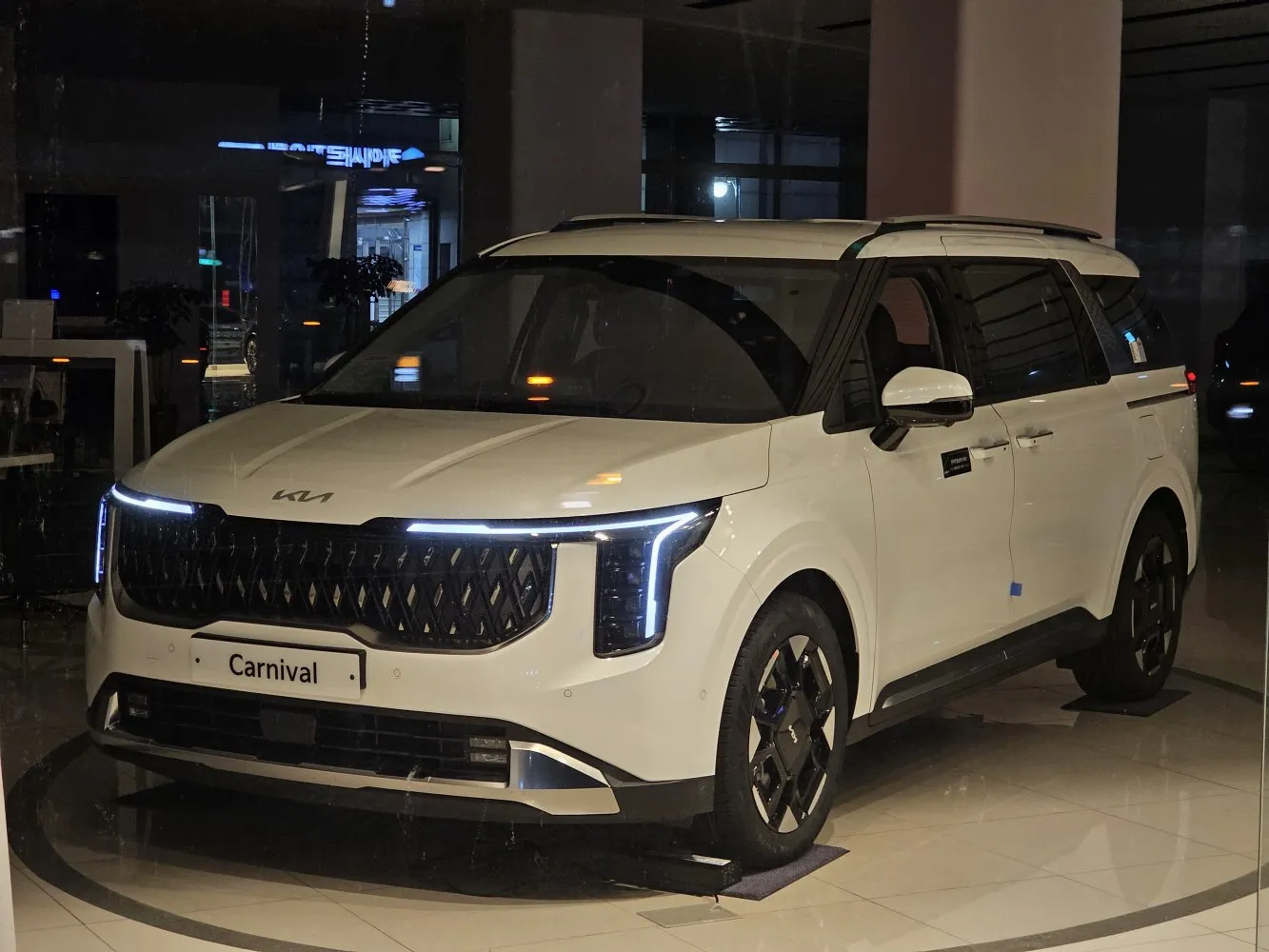

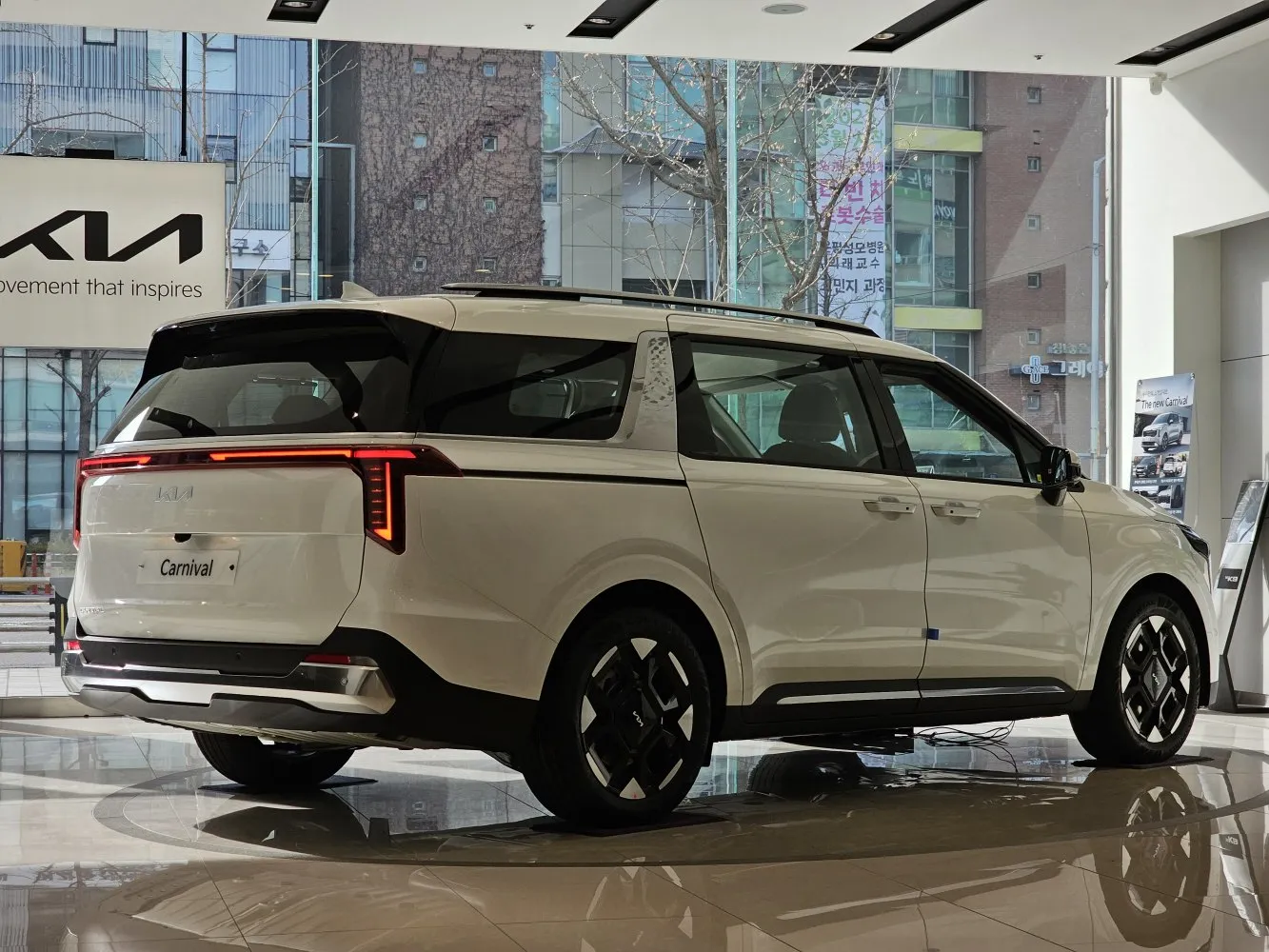

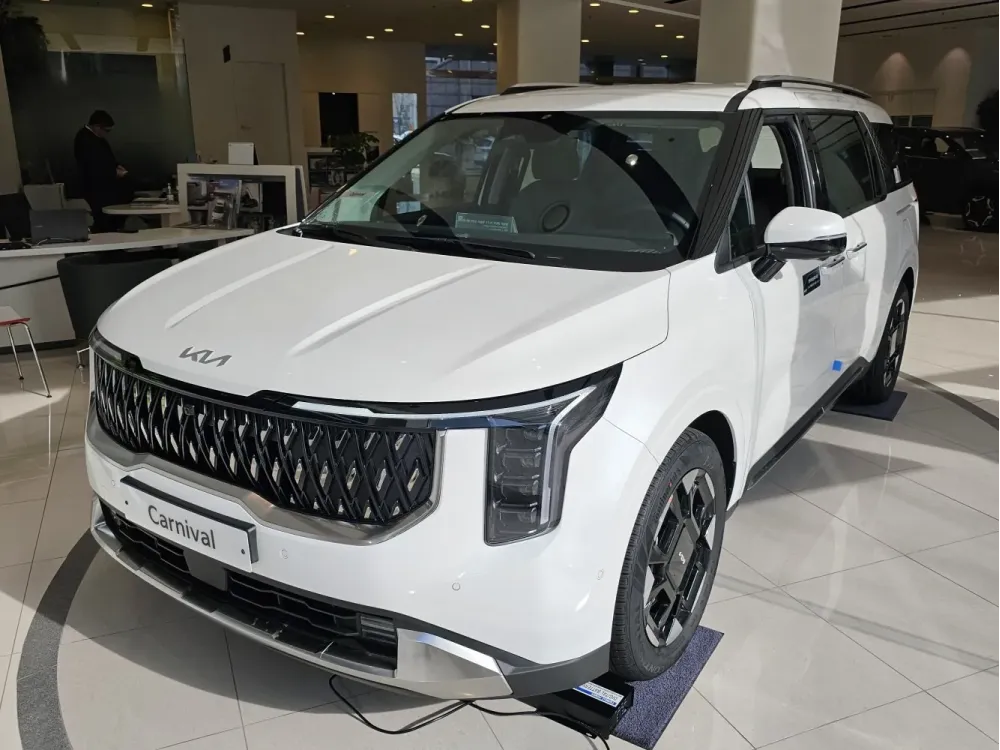

Kia Carnival IV (facelift 2023) 2.2d Smartstream (194 Hp) Automatic 9 Seats
Overall Rating
Kia Carnival:
The Kia Carnival is a minivan manufactured by the Korean automaker Kia since 1998. It is marketed globally under various nameplates, prominently as the Kia Sedona.
The first-generation Carnival was introduced in January 1998, and was marketed in a single, short wheelbase version. Second-generation models were marketed in short and long wheelbase variants. A rebadged variant of the second generation was offered in North America as the Hyundai Entourage. Beginning in 2010, the second-generation model received updated equipment, including Kia's corporate Tiger Nose grille, as introduced by its then new design chief, Peter Schreyer. Kia introduced its third-generation minivan in 2014, solely in a long wheelbase format. The fourth generation was introduced in 2020, when Kia also began using the Carnival nameplate worldwide....(Read more on Wikipedia)
IV (facelift 2023) Overview:
Kia Carnival (IV (facelift 2023)). With 441 Nm of torque, it offers ample pulling power. It has moderate fuel consumption (~8.65 l/100km). At around 2115 kg, it’s on the heavier side. Front‑wheel drive delivers efficiency and easy handling. A spacious vehicle designed to transport passengers comfortably, often with sliding doors. With seating for 9, it’s perfect for larger families.
2.2d Smartstream (194 Hp) Automatic 9 Seats Verdict:
Performance Verdict
Similar to its 7-seater counterpart, this 194 Hp diesel provides robust torque and sufficient power for a 9-seater configuration, ensuring a smooth and capable driving experience.
Fuel Economy
Maintaining a strong fuel economy of 7.6-7.7 l/100 km, this diesel option is highly practical for large families needing a balance of power, range, and lower running costs without opting for a hybrid.
Pros and Cons:
Pros:
- • Spacious and highly versatile interior with up to 9 seats
- • Modern and stylish exterior design, blending minivan practicality with SUV appeal
- • Wide range of engine options, including efficient hybrid and torquey diesel
- • Comfortable ride quality, ideal for long family journeys
- • Generous cargo capacity, especially with rear seats folded
Cons:
- • V6 petrol engines can be quite thirsty, impacting running costs
- • Large dimensions can make urban parking and maneuvering challenging
- • Not all engine options are available in every market
- • Euro NCAP rating of 4 stars is good, but not class-leading 5 stars
Specifications:
Specifications are compared to those of the previous generation(IV: June, 2020 - October, 2023).
| General: | |
|---|---|
| Brand: | Kia |
| Model: | Carnival |
| Generation: | IV (facelift 2023) |
| Modification (Engine): | 2.2d Smartstream (194 Hp) Automatic 9 Seats |
| Start of production: | November, 2023 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Minivan |
| Seats: | 9 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Engine systems: | Start & Stop System |
| Power: | 194 Hp @ 3800 rpm. Same horsepower |
| Power per litre: | 90.2 Hp/l [Same length.] |
| Torque: | 441 Nm @ 1750-2750 rpm. |
| Engine Model/Code: | Smartstream More details about the engine Smartstream |
| Engine displacement: | 2151 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Diesel Commonrail |
| Engine aspiration: | Turbocharger, Intercooler |
| Valvetrain: | DOHC |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 83 mm mm |
| Piston Stroke: | 99.4 mm mm |
| Performance: | |
|---|---|
| Fuel Type: | Diesel |
| Fuel consumption (economy) - urban: | 8.6-8.7 l/100 km |
| Fuel consumption (economy) - extra urban: | 6.5-6.6 l/100 km |
| Fuel consumption (economy) - combined: | 7.6-7.7 l/100 km |
| Weight-to-power ratio: | 10.9 kg/Hp, 91.7 Hp/tonne |
| Weight-to-torque ratio: | 4.8 kg/Nm, 208.5 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 2115 |
| Fuel tank capacity: | 72 l |
| Size: | |
|---|---|
| Length: | 5155 mm mm [Same length.] |
| Width: | 1995 mm mm [Same width.] |
| Height: | 1775 mm mm [35mm more] |
| Wheelbase: | 3090 mm mm [Same wheelbase.] |
| Front track: | 1741-1746 mm |
| Rear (Back) track: | 1741-1746 mm |
| Front overhang: | 935 mm |
| Rear overhang: | 1130 mm |
| Ride height (ground clearance): | 173 mm |
| Approach angle: | 15.4° |
| Departure angle: | 20° |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 8 |
| Transmission type | Automatic |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 235/60 R18; 235/55 R19 |
| Wheel rims size | 7J x 18; 7.5J x 19 |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link suspension |
