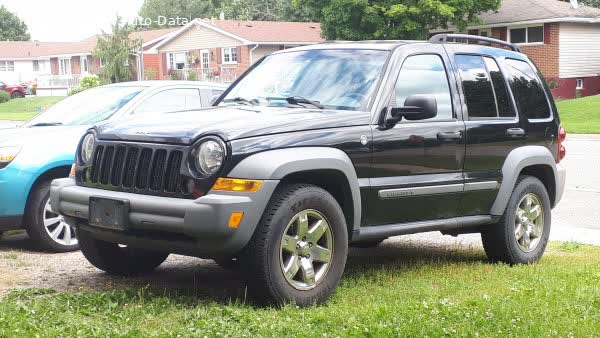

Everything you need to know about specifications and performance - Jeep Liberty 2005 - 2.4 16V (150 Hp)
Overview:
What is the engine capacity of a Jeep Liberty 2005?
The engine capacity of the Jeep Liberty 2005 is 2429.
Jeep Liberty 2005 How many horsepower?
The engine power of the Jeep Liberty 2005 is 150 Hp @ 5600 rpm..
What is the Jeep Liberty 2005 engine?
Jeep Liberty 2005 engine is ED1. (Click to see other cars using the same engine)
General:
Brand: Jeep
Model: Liberty
Generation: I (facelift 2004)
Modification (Engine): 2.4 16V (150 Hp)
Start of production: 2005
End of production: 2006
Powertrain Architecture: Internal Combustion Engine
Body type:Sports Utility Vehicle (SUV)
Seats: 5
Doors: 5
Engine:
Power: 150 hp @ 5600 rpm.
Power per litre: 61.8 hp/l
Torque: 224 nm @ 4000 rpm.
Engine Model/Code:ED1
Engine displacement: 2429
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 4.7 l
Coolant: 9.5 l
Engine layout: Front, Longitudinal
Cylinder Bore: 87.5 mm
Piston Stroke: 101 mm
Compression ratio: 9.4:1
Performance:
Fuel Type: Petrol (Gasoline)
Weight-to-power ratio: 11.1 kg/Hp, 90.3 Hp/tonne
Weight-to-torque ratio: 7.4 kg/Nm, 134.8 Nm/tonne
Space:
Kerb Weight (kg): 1662
Max. weight (kg): 2245
Max load (kg): 583
Trunk (boot) space - maximum: 1954 l
Trunk (boot) space - minimum: 878 l
Permitted trailer load with brakes (12%): 907 kg
Fuel tank capacity: 78 l
dimensions:
Ramp-over (brakeover) angle: 21.8°
Length: 4437 mm
Width: 1824 mm
Height: 1824 mm
wheelbase: 2647 mm
Front track: 1524 mm
Rear (Back) track: 1516 mm
Front overhang: 734 mm
Rear overhang: 1052 mm
Ride height (ground clearance): 241 mm
Minimum turning circle (turning diameter): 10.9 m
Approach angle: 37.2°
Departure angle: 31.5°
Powertrain, Suspension and Brakes:
Drivetrain Architecture: The Internal combustion Engine (ICE) drives the rear wheels of the vehicle.
Drive wheel: Rear wheel drive
Number of gears and type of gearbox: 6 gears, manual transmission
Front brakes: Ventilated discs, 287.02 mm
Rear brakes: Disc, 284.48x12.7 mm
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Tires size: 225/75 R16
Wheel rims size: 7J x 16
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Rigid axle suspension, Transverse stabilizer, Coil Spring
