Everything you need to know about specifications and performance - Hyundai Coupe 2003 - 2.0 i 16V (143 Hp)

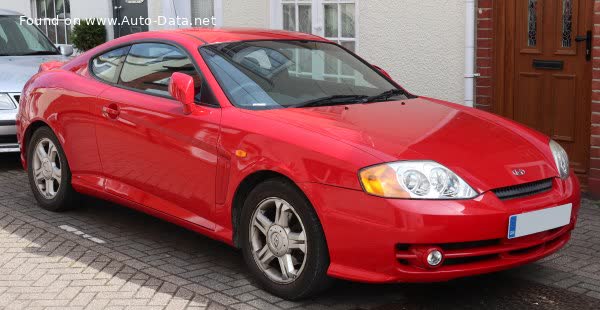

Full specifications and technical details 2003 Hyundai Coupe II (GK) 2.0 i 16V (143 Hp)

Overview:

What is the engine capacity of a Hyundai Coupe 2003?
The engine capacity of the Hyundai Coupe 2003 is 1975.

Hyundai Coupe 2003 How many horsepower?
The engine power of the Hyundai Coupe 2003 is 143 Hp @ 6000 rpm..

What is the Hyundai Coupe 2003 engine?
Hyundai Coupe 2003 engine is G4GC. (Click to see other cars using the same engine)

What is the recommended oil for a Hyundai Coupe 2003 engine?
The recommended oil for a Hyundai Coupe 2003 car engine is 5W-30, 5W-40.

What type of camshaft transmission system is used in a Hyundai Coupe 2003 engine?
chain and belt is used to transmit motion.

General:

Brand: Hyundai
Model:Coupe
Generation: II (GK)
Modification (Engine): 2.0 i 16V (143 Hp)
Start of production: 2003
End of production: 2009
Powertrain Architecture: Internal Combustion Engine
Body type:Coupe
Seats: 4
Doors: 3

Engine:

Power: 143 hp @ 6000 rpm.
Power per litre: 72.4 hp/l
Torque: 186 nm @ 4500 rpm.
Engine Model/Code:G4GC
Engine displacement: 1975
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 4 l
Coolant: 7 l
Engine layout: Front, Transverse
Cylinder Bore: 82 mm
Piston Stroke: 93.5 mm
Compression ratio: 10:1
recommended engine oil: 5W-30, 5W-40
euro standards: EURO 3/4
engine lifespan (km): ~500 000
weight (kg): 144
timing drive: chain and belt

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 10.9 l/100 km
Fuel consumption (economy) - extra urban: 6.4 l/100 km
Acceleration 0 - 100 km/h: 9.1 sec
Acceleration 0 - 62 mph: 9.1 sec
Maximum speed: 208 km/h
Weight-to-power ratio: 9 kg/Hp, 111.7 Hp/tonne
Weight-to-torque ratio: 6.9 kg/Nm, 145.3 Nm/tonne
Acceleration 0 - 60 mph: 8.6 sec

Space:

Kerb Weight (kg): 1280
Max. weight (kg): 1740
Max load (kg): 460
Trunk (boot) space - minimum: 420 l
Fuel tank capacity: 55 l

dimensions:

Length: 4395 mm
Width: 1760 mm
Height: 1330 mm
wheelbase: 2530 mm
Front track: 1490 mm
Rear (Back) track: 1490 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Ventilated discs
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 205/55 R16
Front suspension: Spring Strut
Rear suspension: Double wishbone
