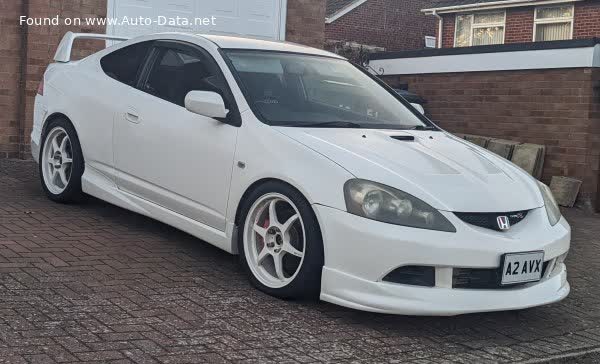

Honda Integra IV (DC5, facelift 2004) Type S 2.0 (209 Hp)
Overall Rating
Honda Integra:
The Honda Integra , sold in North America as the Acura Integra and later the Acura RSX, is an automobile produced by the Japanese company Honda from 1985 until 2006, and then since 2021. It succeeded the Quint as a more luxurious and sport-oriented derivative of the Civic. The Integra was one of the launch models for Acura in the US in 1986 alongside the Acura Legend. Throughout its production run, the Integra was highly regarded for its handling and performance. The 1995–2001 Integra Type R is widely regarded as one of the best front-wheel-drive cars of all time....(Read more on Wikipedia)
IV (DC5, facelift 2004) Overview:
Honda Integra (IV (DC5, facelift 2004)). With 194 Nm of torque, it offers ample pulling power. Weighing only 1230 kg, it’s quite light. Front‑wheel drive delivers efficiency and easy handling. A car with a sloping rear hatch that opens upwards, combining style and practicality. Seating for 4 makes it ideal for daily use.
Type S 2.0 (209 Hp) Verdict:
Performance Verdict
The K20Z1 engine delivers exhilarating, high-revving performance, characteristic of Honda's VTEC technology, making it a true driver's car with impressive power delivery at higher RPMs.
Fuel Economy
Fuel economy is reasonable for its performance class (9.4 l/100 km), offering a balance between spirited driving and daily usability, though it demands premium fuel.
Pros and Cons:
Pros:
- • Legendary K20 VTEC engines offer strong performance and reliability.
- • Engaging handling and precise steering, especially in Type S trim.
- • Practical liftback design with decent cargo space.
- • High build quality and Honda's renowned long-term dependability.
Cons:
- • Interior plastics can feel dated compared to some rivals.
- • Road noise can be noticeable at highway speeds.
- • Rear seating is cramped for adults.
- • Firm ride, particularly on sportier trims, may not suit all drivers.
Specifications:
Specifications are compared to those of the previous generation(IV (DC5): 2001 - 2004).
| General: | |
|---|---|
| Brand: | Honda |
| Model: | Integra |
| Generation: | IV (DC5, facelift 2004) |
| Modification (Engine): | Type S 2.0 (209 Hp) |
| Start of production: | September, 2004 |
| End of production: | August, 2006 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | Liftback |
| Seats: | 4 |
| Doors: | 3 |
| Engine: | |
|---|---|
| Power: | 209 Hp @ 7800 rpm. Same horsepower |
| Power per litre: | 104.6 Hp/l [15mm more] |
| Torque: | 194 Nm @ 7000 rpm. |
| Engine Model/Code: | K20Z1 More details about the engine K20Z1 |
| Engine displacement: | 1998 |
| Number of cylinders: | 4 |
| Engine configuration: | Inline |
| Number of valves per cylinder: | 4 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Valvetrain: | DOHC i-VTEC |
| Engine oil capacity: | 4.7 l |
| Coolant: | 6.4 l |
| Engine layout: | Front, Transverse |
| Cylinder Bore: | 86 mm mm |
| Piston Stroke: | 86 mm mm |
| Compression ratio: | 11:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - combined: | 9.4 l/100 km |
| Weight-to-power ratio: | 5.9 kg/Hp, 169.9 Hp/tonne |
| Weight-to-torque ratio: | 6.3 kg/Nm, 157.7 Nm/tonne |
| Space: | |
|---|---|
| Kerb Weight: | 1230 |
| Permitted trailer load with brakes (12%): | 450 kg |
| Fuel tank capacity: | 50 l |
| Permitted trailer load without brakes: | 450 kg |
| Size: | |
|---|---|
| Length: | 4400 mm mm [15mm more] |
| Width: | 1725 mm mm [30mm more] |
| Height: | 1395 mm mm [15mm more] |
| Ride height (ground clearance): | 118 mm |
| Minimum turning circle (turning diameter): | 11.6 m [above average] |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 6 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc [above average] |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/45 R17 |
| Wheel rims size | 7J x 17 |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Double wishbone, Transverse stabilizer, Coil spring |
