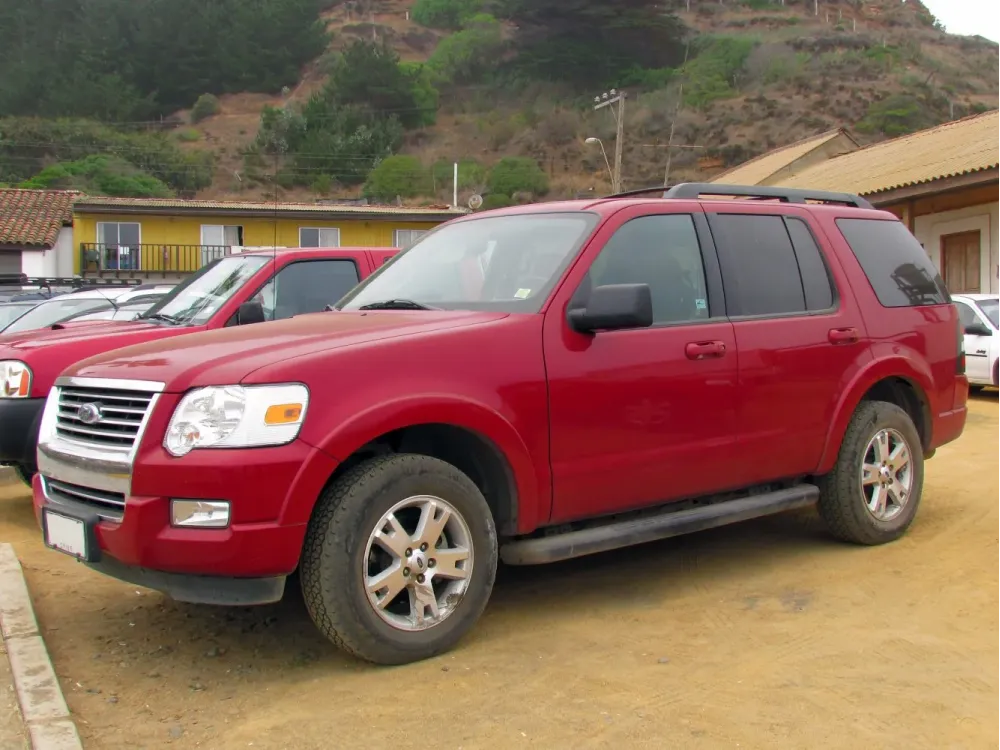

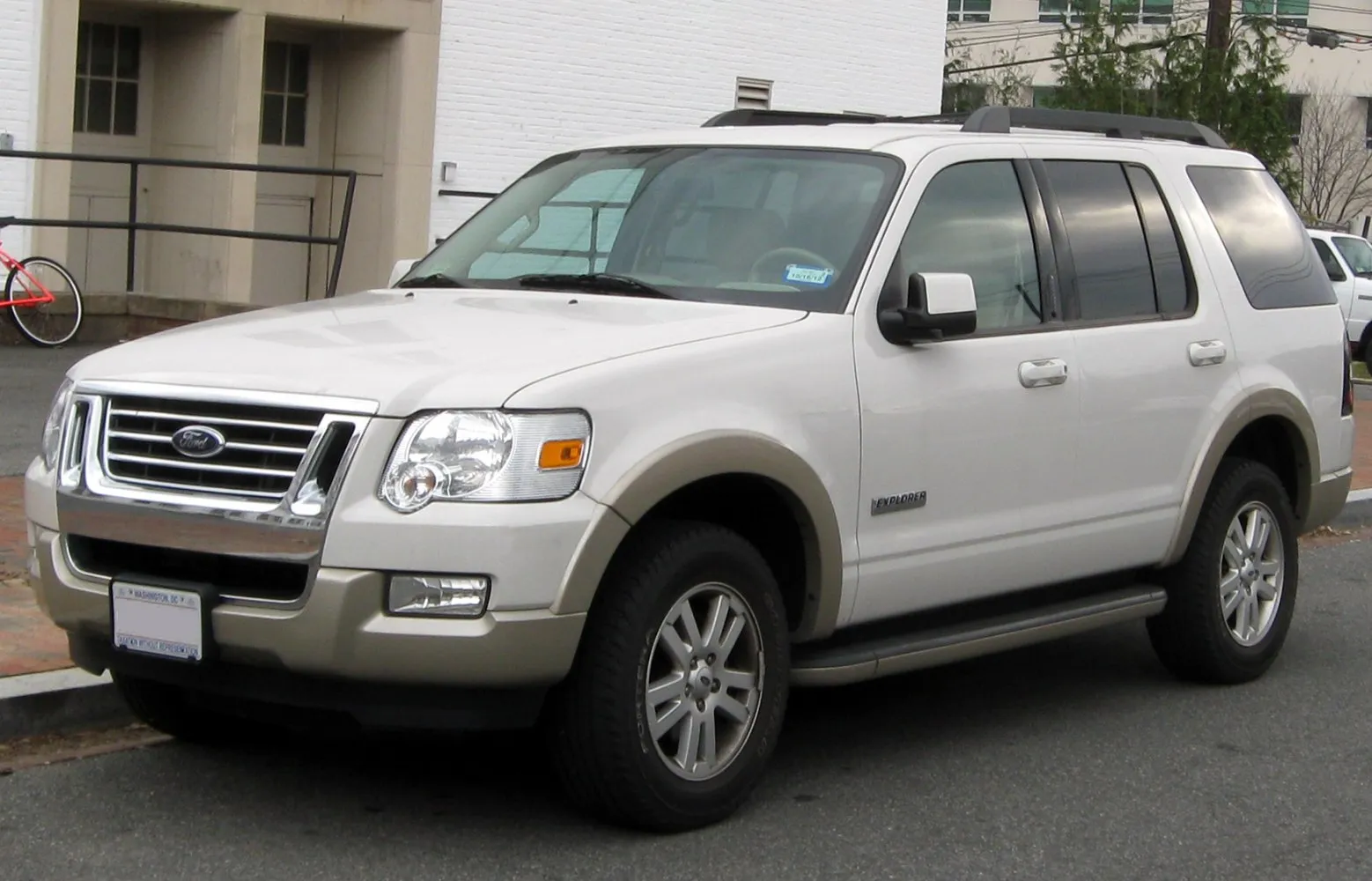

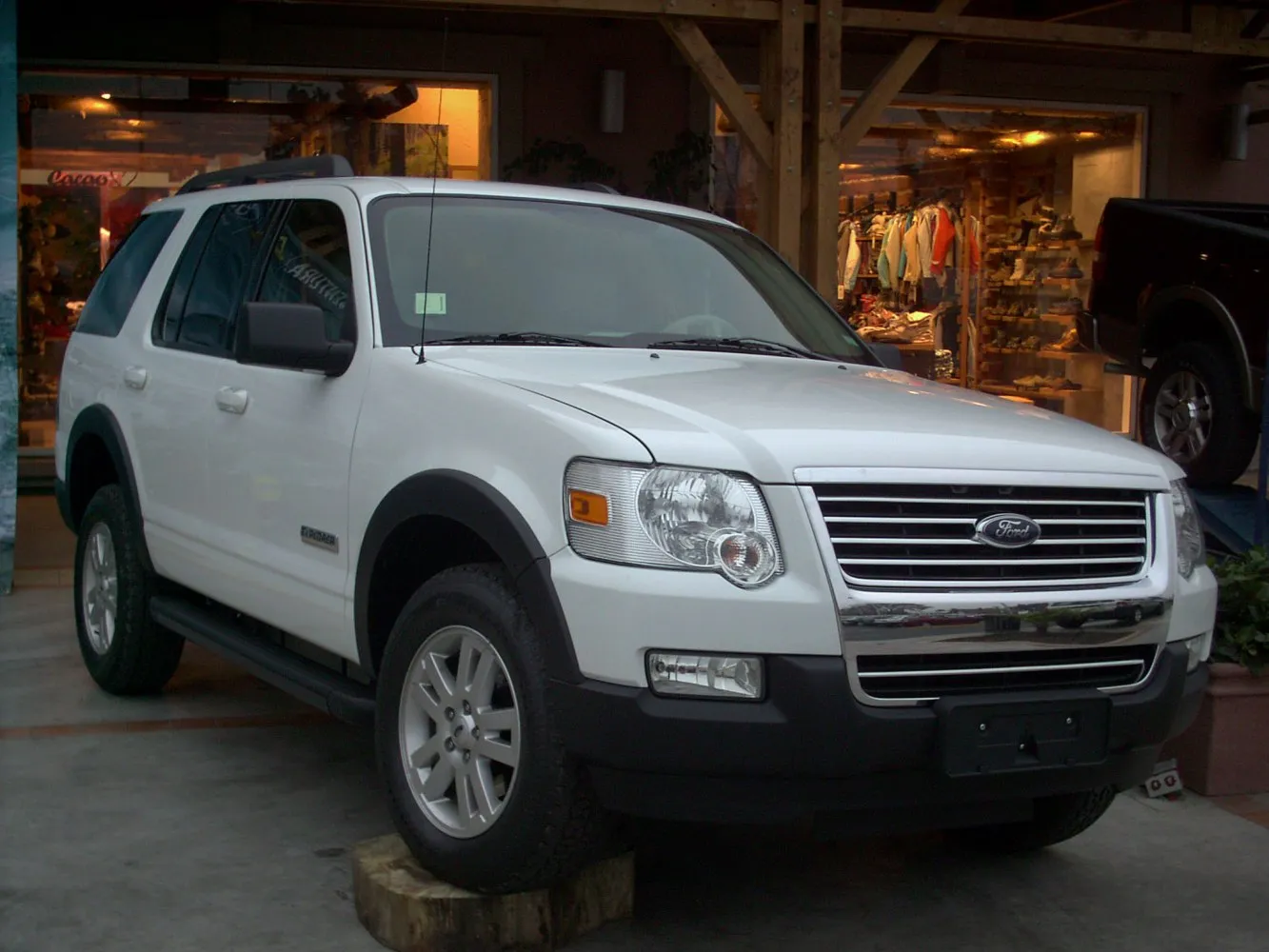

Ford Explorer IV 4.0i V6 (212 Hp)
Overall Rating
Ford Explorer:
The Ford Explorer is a range of SUVs manufactured by the Ford Motor Company since the 1991 model year. The first five-door SUV produced by Ford, the Explorer, was introduced as a replacement for the three-door Bronco II. As with the Ford Ranger, the model line derives its name from a trim package previously offered on Ford F-Series pickup trucks. In 2020, the Explorer became the best-selling SUV in the American market.
Currently in its sixth generation, the Explorer has featured a five-door wagon body style since its 1991 introduction. During the first two generations, the model line included a three-door wagon. The Ford Explorer Sport Trac is a crew-cab mid-size pickup truck derived from the second-generation Explorer. The fifth and sixth generations of the Explorer have been produced as the Ford Police Interceptor Utility....(Read more on Wikipedia)
IV Overview:
Ford Explorer (IV). With 344 Nm of torque, it offers ample pulling power. With a weight of 1995 kg, it falls in the mid‑range. Rear‑wheel drive offers dynamic handling and sporty feedback. Acceleration is relatively slow (0–100 km/h in 9.4 s). The top speed reaches 158 km/h. A sport utility vehicle offering higher ground clearance and versatile cargo space. Seating for 5 makes it ideal for daily use.
The Ford Explorer IV was primarily designed for the North American market and was not tested by Euro NCAP. It received good ratings from NHTSA and IIHS in the US for its time.
4.0i V6 (212 Hp) Verdict:
Performance Verdict
Offers adequate power for daily driving and light hauling, but can feel strained under heavy loads. Acceleration is modest.
Fuel Economy
Fuel economy is a significant drawback, especially in urban settings, typical for a large V6 SUV of its era.
Pros and Cons:
Pros:
- • Spacious and comfortable interior with optional third-row seating
- • Strong towing capabilities, especially with the 4.6L V8 engine
- • Available 4WD system provides good all-weather and light off-road capability
- • Smooth ride quality for a body-on-frame SUV
- • Good cargo capacity with rear seats folded
Cons:
- • Poor fuel economy across all engine options
- • Known reliability issues with the 4.0L SOHC V6 (timing chain guides)
- • Interior design can feel dated compared to competitors by end of production
- • Large turning radius makes city maneuvering challenging
- • Some V8 models had spark plug issues
Specifications:
Specifications are compared to those of the previous generation(III: 2003 - 2005).
| General: | |
|---|---|
| Brand: | Ford |
| Model: | Explorer |
| Generation: | IV |
| Modification (Engine): | 4.0i V6 (212 Hp) |
| Start of production: | 2006 |
| End of production: | 2010 |
| Powertrain Architecture: | Internal Combustion engine |
| Body type: | SUV |
| Seats: | 5 |
| Doors: | 5 |
| Engine: | |
|---|---|
| Power: | 212 Hp @ 5100 rpm. Same horsepower |
| Power per litre: | 53 Hp/l [Same length.] |
| Torque: | 344 Nm @ 3700 rpm. |
| Engine displacement: | 3998 |
| Number of cylinders: | 6 |
| Engine configuration: | V-engine |
| Number of valves per cylinder: | 2 |
| Fuel injection system: | Multi-port manifold injection |
| Engine aspiration: | Naturally aspirated engine |
| Engine oil capacity: | 4.7 l |
| Coolant: | 11.5 l |
| Engine layout: | Front, Longitudinal |
| Cylinder Bore: | 100.33 mm mm |
| Piston Stroke: | 84.3 mm mm |
| Compression ratio: | 9.7:1 |
| Performance: | |
|---|---|
| Fuel Type: | Petrol (Gasoline) |
| Fuel consumption (economy) - urban: | 14.7 l/100 km |
| Fuel consumption (economy) - extra urban: | 11.2 l/100 km |
| Acceleration 0 - 100 km/h: | 9.4 sec |
| Acceleration 0 - 62 mph: | 9.4 sec |
| Maximum speed: | 158 km/h |
| Weight-to-power ratio: | 9.4 kg/Hp, 106.3 Hp/tonne |
| Weight-to-torque ratio: | 5.8 kg/Nm, 172.4 Nm/tonne |
| Acceleration 0 - 60 mph: | 8.9 sec |
| Space: | |
|---|---|
| Kerb Weight: | 1995 |
| Max. weight: | 2595 |
| Max load: | 600 |
| Trunk (boot) space - maximum: | 2492 l |
| Trunk (boot) space - minimum: | 391 l |
| Fuel tank capacity: | 85 l |
| Size: | |
|---|---|
| Length: | 4813 mm mm [Same length.] |
| Width: | 1832 mm mm [Same width.] |
| Height: | 1814 mm mm [Same height.] |
| Wheelbase: | 2890 mm mm [Same wheelbase.] |
| Front track: | 1547 mm |
| Rear (Back) track: | 1555 mm |
| Powertrain: | |
|---|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears | 5 |
| Transmission type | Manual |
| Front brakes | Ventilated discs [Best for performance and cooling.] |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 235/70 R16 |
| Front suspension | Torsion |
| Rear suspension | Coil spring |
