Everything you need to know about specifications and performance - Fiat Punto 2003 - 1.2 (80 Hp)

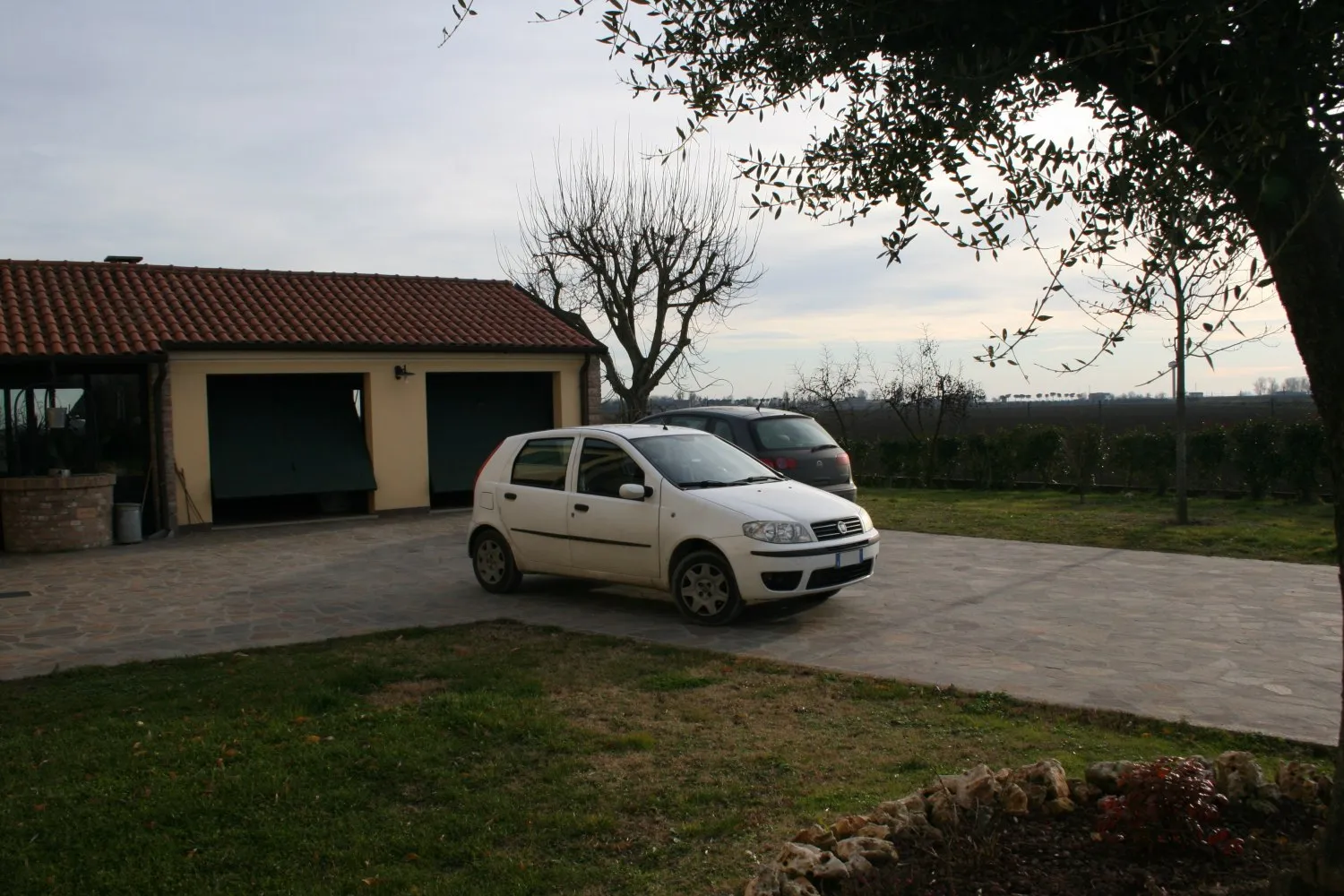

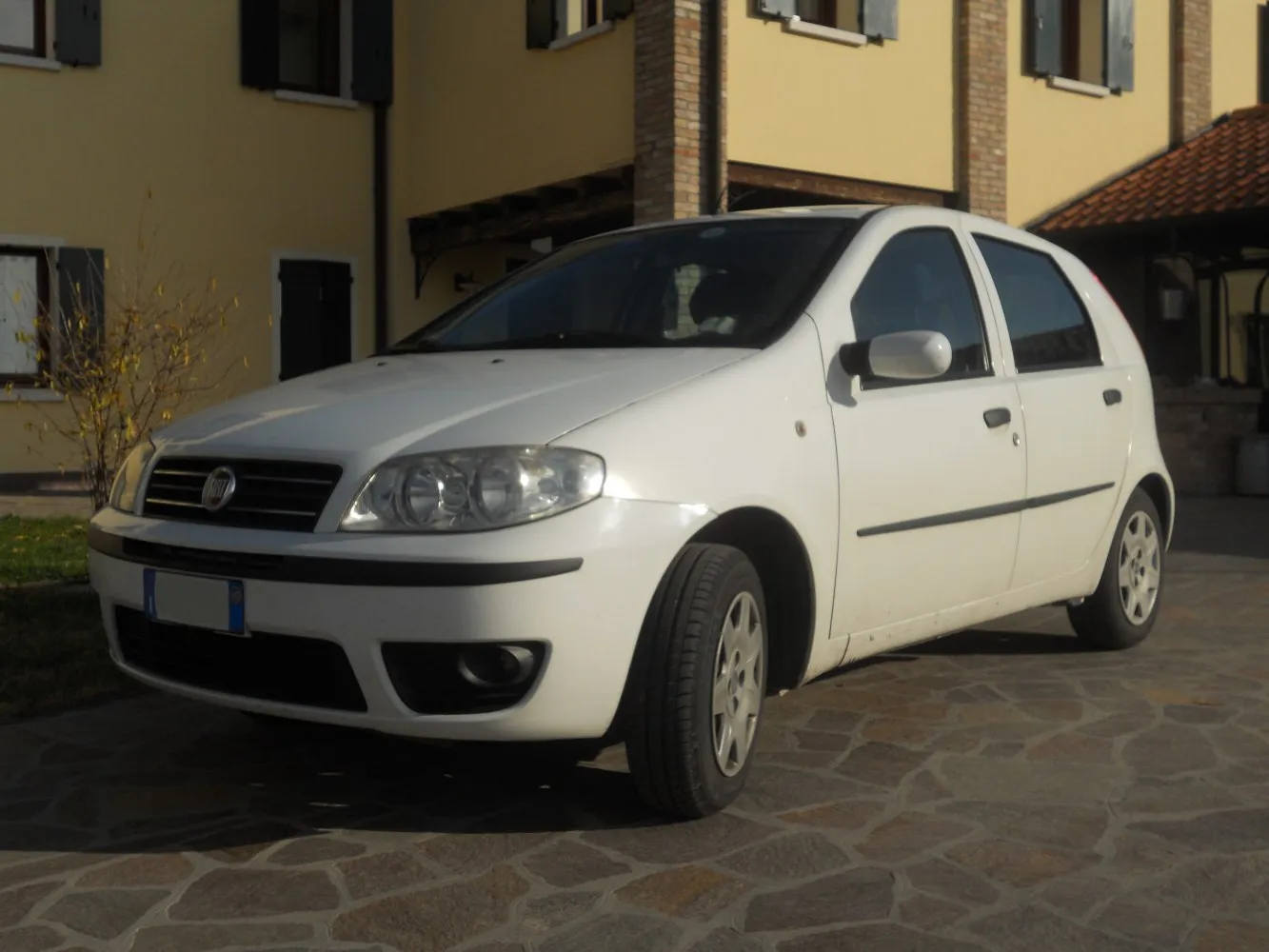

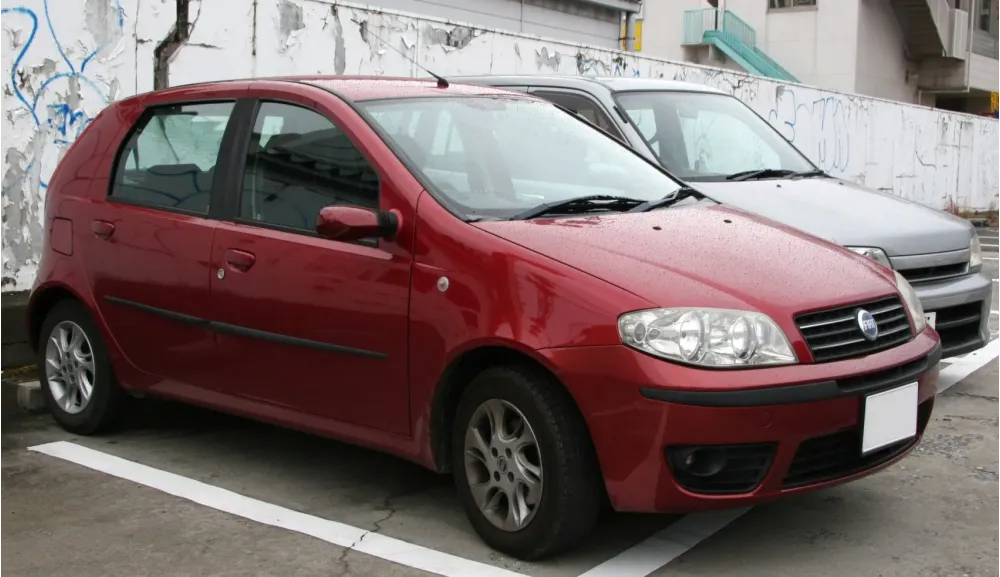

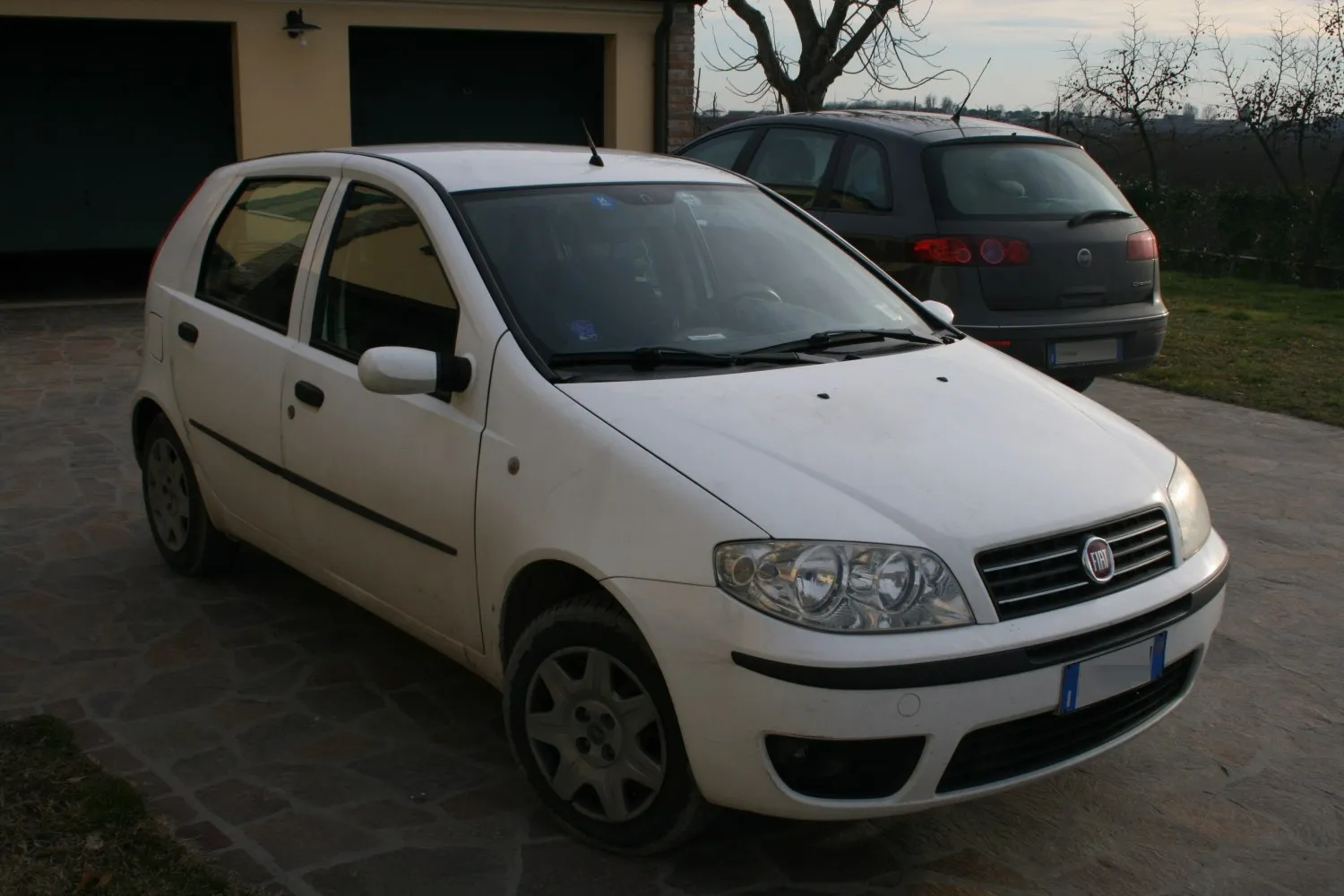

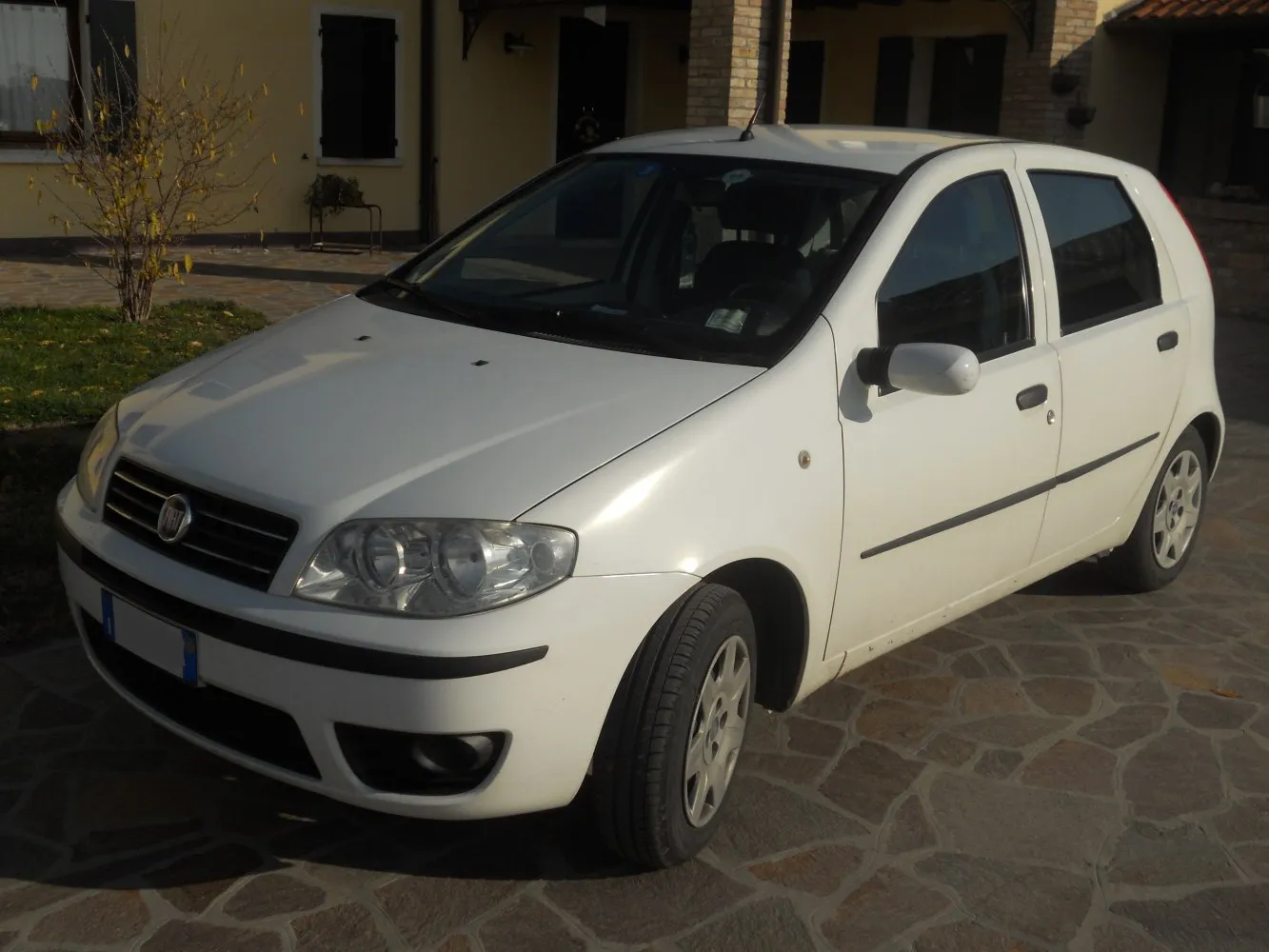

Full specifications and technical details 2003 Fiat Punto II (188, facelift 2003) 5dr 1.2 (80 Hp)

Overview:

What is the engine capacity of a Fiat Punto 2003?
The engine capacity of the Fiat Punto 2003 is 1242.

Fiat Punto 2003 How many horsepower?
The engine power of the Fiat Punto 2003 is 80 Hp @ 5000 rpm..

What is the Fiat Punto 2003 engine?
Fiat Punto 2003 engine is 188A5000. (Click to see other cars using the same engine)

How much gasoline does a Fiat Punto 2003 consume?
The Fiat Punto 2003 consumes 6 liters of gasoline per 100 km

What is the recommended oil for a Fiat Punto 2003 engine?
The recommended oil for a Fiat Punto 2003 car engine is 5W-40.

What type of camshaft transmission system is used in a Fiat Punto 2003 engine?
belt is used to transmit motion.

General:

Brand: Fiat
Model: Punto
Generation: II (188, facelift 2003) 5dr
Modification (Engine): 1.2 (80 Hp)
Start of production: 2003
End of production: 2007
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 5

Engine:

Power: 80 hp @ 5000 rpm.
Power per litre: 64.4 hp/l
Torque: 114 nm @ 4000 rpm.
Engine Model/Code:188A5000
Engine displacement: 1242
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: OHC
Engine oil capacity: 2.8 l
Coolant: 4.2 l
Engine layout: Front, Transverse
Cylinder Bore: 70.8 mm
Piston Stroke: 78.9 mm
Compression ratio: 10.6:1
recommended engine oil: 5W-40
euro standards: EURO 3
engine lifespan (km): ~250 000
weight (kg): 105
timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 7.6 l/100 km
Fuel consumption (economy) - extra urban: 5.1 l/100 km
Fuel consumption (economy) - combined: 6 l/100 km
Emission standard: Euro 4
Acceleration 0 - 100 km/h: 11.4 sec
Acceleration 0 - 62 mph: 11.4 sec
Maximum speed: 172 km/h
Weight-to-power ratio: 11.7 kg/Hp, 85.6 Hp/tonne
Weight-to-torque ratio: 8.2 kg/Nm, 121.9 Nm/tonne
Acceleration 0 - 60 mph: 10.8 sec

Space:

Kerb Weight (kg): 935
Max. weight (kg): 1445
Max load (kg): 510
Trunk (boot) space - maximum: 1080 l
Trunk (boot) space - minimum: 297 l
Fuel tank capacity: 47 l

dimensions:

Length: 3865 mm
Width: 1660 mm
Height: 1480 mm
wheelbase: 2460 mm
Front track: 1398 mm
Rear (Back) track: 1392 mm
Minimum turning circle (turning diameter): 10.5 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Disc
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: 165/70 R14
Front suspension: Spring Strut
Rear suspension: Torsion
