Everything you need to know about specifications and performance - Citroen Saxo 1996 - 1.4 (75 Hp) Automatic

gray symbol cars image

Overview:

What is the engine capacity of a Citroen Saxo 1996?
The engine capacity of the Citroen Saxo 1996 is 1360.

Citroen Saxo 1996 How many horsepower?
The engine power of the Citroen Saxo 1996 is 75 Hp @ 5500 rpm..

What is the Citroen Saxo 1996 engine?
Citroen Saxo 1996 engine is TU3JP. (Click to see other cars using the same engine)

How much gasoline does a Citroen Saxo 1996 consume?
The Citroen Saxo 1996 consumes 7.9 liters of gasoline per 100 km

What is the recommended oil for a Citroen Saxo 1996 engine?
The recommended oil for a Citroen Saxo 1996 car engine is 5W-40.

What type of camshaft transmission system is used in a Citroen Saxo 1996 engine?
belt is used to transmit motion.

General:

Brand: Citroen
Model: Saxo
Generation: (Phase I, 1996) 3-door
Modification (Engine): 1.4 (75 Hp) Automatic
Start of production: 1996
End of production: 1999
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 3

Engine:

Power: 75 hp @ 5500 rpm.
Power per litre: 55.1 hp/l
Torque: 111 nm @ 3400 rpm.
Engine Model/Code:TU3JP
Engine displacement: 1360
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 2
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: OHC
Engine oil capacity: 3.5 l
Coolant: 6.1 l
Engine layout: Front, Transverse
Cylinder Bore: 75 mm
Piston Stroke: 77 mm
Compression ratio: 10.2:1
recommended engine oil: 5W-40
euro standards: EURO 3/4
engine lifespan (km): ~200 000
weight (kg): 105
timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 10.5 l/100 km
Fuel consumption (economy) - extra urban: 6.4 l/100 km
Fuel consumption (economy) - combined: 7.9 l/100 km
Acceleration 0 - 100 km/h: 17 sec
Acceleration 0 - 62 mph: 17 sec
Maximum speed: 166 km/h
Weight-to-power ratio: 11.5 kg/Hp, 87.2 Hp/tonne
Weight-to-torque ratio: 7.7 kg/Nm, 129.1 Nm/tonne
Acceleration 0 - 60 mph: 16.2 sec

Space:

Kerb Weight (kg): 860
Max. weight (kg): 1360
Max. roof load: 50 kg
Max load (kg): 500
Trunk (boot) space - maximum: 953 l
Trunk (boot) space - minimum: 280 l
Permitted trailer load with brakes (12%): 500 kg
Fuel tank capacity: 45 l
Permitted trailer load without brakes: 465 kg
Permitted towbar download: 50 kg

dimensions:

Length: 3718 mm
Width: 1595 mm
Height: 1390 mm
wheelbase: 2385 mm
Front track: 1401 mm
Rear (Back) track: 1321 mm
Front overhang: 748 mm
Rear overhang: 585 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 3 gears, automatic transmission
Front brakes: Disc
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 165/70 R13
Wheel rims size: 13
Front suspension: Independent type McPherson, Transverse stabilizer
Rear suspension: Trailing arm, Torsion

See also

1999 Citroen Saxo (Phase II, 1999) 3-door 1.4 (75 Hp) Automatic thumb image
1999 Citroen Saxo (Phase II, 1999) 3-door 1.4 (75 Hp) Automatic

Last generation.
Its production began in 1999 until 2002

2003 Citroen Xsara Break (N2, Phase III) 1.4 i (75 Hp) thumb image
2003 Citroen Xsara Break (N2, Phase III) 1.4 i (75 Hp)

Same engine. (TU3JP).
Its production began in 2003 until 2003

2000 Citroen Xsara Coupe (N0, Phase II) 1.4 i (75 Hp) thumb image
2000 Citroen Xsara Coupe (N0, Phase II) 1.4 i (75 Hp)

Same engine. (TU3JP).
Its production began in 2000 until 2003

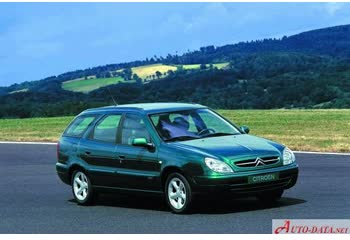

2000 Citroen Xsara Break (N2, Phase II) 1.4 i (75 Hp) thumb image
