Everything you need to know about specifications and performance - Citroen Jumpy 2001 - 2.0 HDi (109 Hp)

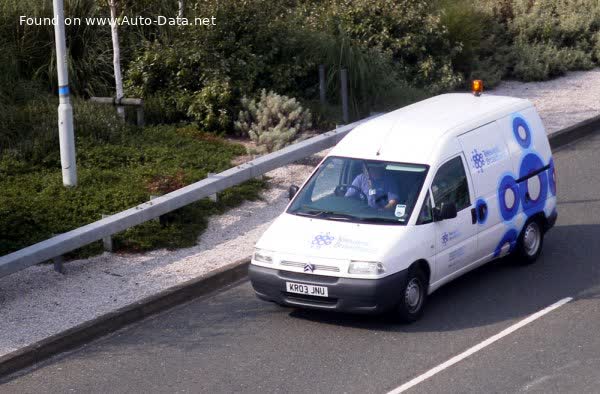

Full specifications and technical details 2001 Citroen Jumpy I 2.0 HDi (109 Hp)

Overview:

What is the engine capacity of a Citroen Jumpy 2001?
The engine capacity of the Citroen Jumpy 2001 is 1997.

Citroen Jumpy 2001 How many horsepower?
The engine power of the Citroen Jumpy 2001 is 109 Hp @ 4000 rpm..

What is the Citroen Jumpy 2001 engine?
Citroen Jumpy 2001 engine is DW10ATED. (Click to see other cars using the same engine)

How much gasoline does a Citroen Jumpy 2001 consume?
The Citroen Jumpy 2001 consumes 6.7 liters of gasoline per 100 km

General:

Brand: Citroen

Model: Jumpy

Generation: I

Modification (Engine): 2.0 HDi (109 Hp)

Start of production: 2001

End of production: 2003

Powertrain Architecture: Internal Combustion Engine

Body type:Mini van

Seats: 2

Doors: 4

Engine:

Power: 109 hp @ 4000 rpm.

Power per litre: 54.6 hp/l

Torque: 250 nm @ 1750 rpm.

Engine Model/Code:DW10ATED

Engine displacement: 1997

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 2

Fuel injection system: Diesel Commonrail

Engine aspiration: Turbocharger, Intercooler

Valvetrain: SOHC

Engine oil capacity: 4.5 l

Coolant: 8.5 l

Engine layout: Front, Transverse

Cylinder Bore: 85 mm

Piston Stroke: 88 mm

Performance:

Fuel Type: Diesel

Fuel consumption (economy) - urban: 8.6 l/100 km

Fuel consumption (economy) - extra urban: 5.6 l/100 km

Fuel consumption (economy) - combined: 6.7 l/100 km

Emission standard: Euro 3

Acceleration 0 - 100 km/h: 15 sec

Acceleration 0 - 62 mph: 15 sec

Maximum speed: 165 km/h

Weight-to-power ratio: 13 kg/Hp, 77 Hp/tonne

Weight-to-torque ratio: 5.7 kg/Nm, 176.7 Nm/tonne

Acceleration 0 - 60 mph: 14.3 sec

Space:

Kerb Weight (kg): 1415

Max. weight (kg): 2315

Max. roof load: 100 kg

Max load (kg): 900

Trunk (boot) space - maximum: 4000 l

Permitted trailer load with brakes (12%): 1300 kg

Fuel tank capacity: 80 l

Permitted trailer load without brakes: 745 kg

Permitted towbar download: 60 kg

Permitted trailer load with brakes (8%): 1800 kg

dimensions:

Length: 4440 mm

Width: 1810 mm

Height: 1927 mm

wheelbase: 2824 mm

Width including mirrors: 2134 mm

Front track: 1540 mm

Rear (Back) track: 1540 mm

Front overhang: 846 mm

Rear overhang: 770 mm

Minimum turning circle (turning diameter): 12.35 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: 5 gears, manual transmission

Front brakes: Ventilated discs

Rear brakes: Drum

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Hydraulic Steering

Tires size: 205/65 R15

Front suspension: Independent, type McPherson with coil Spring and anti-roll bar

Rear suspension: Semi-dependent beam with stabilizer lateral stability
