Everything you need to know about specifications and performance - Ford Expedition 2005 - 5.4 i V8 24V (300 Hp) 4WD Automatic

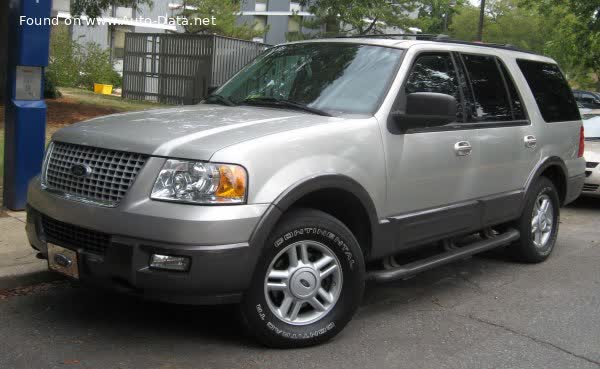

Full specifications and technical details 2005 Ford Expedition II 5.4 i V8 24V (300 Hp) 4WD Automatic

Overview:

What is the engine capacity of a Ford Expedition 2005?
The engine capacity of the Ford Expedition 2005 is 5408.

Ford Expedition 2005 How many horsepower?
The engine power of the Ford Expedition 2005 is 300 Hp @ 5000 rpm..

What is the Ford Expedition 2005 engine?
Ford Expedition 2005 engine is Triton. (Click to see other cars using the same engine)

General:

Brand: Ford

Model: Expedition

Generation: II

Modification (Engine): 5.4 i V8 24V (300 Hp) 4WD Automatic

Start of production: 2005

End of production: 2006

Powertrain Architecture: Internal Combustion Engine

Body type:Sports Utility Vehicle (SUV)

Seats: 7-9

Doors: 5

Engine:

Power: 300 hp @ 5000 rpm.

Power per litre: 55.5 hp/l

Torque: 495 nm @ 3750 rpm.

Engine Model/Code:Triton

Engine displacement: 5408

Number of cylinders: 8

Engine configuration: V-engine

Number of valves per cylinder: 3

Fuel injection system: Multi-port manifold injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: SOHC, VCT

Engine oil capacity: 6.6 l

Coolant: 18.4 l

Engine layout: Front, Longitudinal

Cylinder Bore: 90.2 mm

Piston Stroke: 105.8 mm

Compression ratio: 9.8:1

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - urban: 16.8 l/100 km

Fuel consumption (economy) - extra urban: 13.1 l/100 km

Fuel consumption (economy) - urban (EPA): 16.8 l/100 km

Fuel consumption (economy) - extra urban (EPA): 13.1 l/100 km

Weight-to-power ratio: 8.5 kg/Hp, 118 Hp/tonne

Weight-to-torque ratio: 5.1 kg/Nm, 194.7 Nm/tonne

Space:

Kerb Weight (kg): 2543

Max. weight (kg): 3310

Max load (kg): 767

Trunk (boot) space - maximum: 3129 l

Trunk (boot) space - minimum: 586 l

Permitted trailer load with brakes (12%): 3901 kg

Fuel tank capacity: 106 l

dimensions:

Ramp-over (brakeover) angle: 19.2°

Length: 5228 mm

Width: 2000 mm

Height: 1944 mm

wheelbase: 3023 mm

Width with mirrors folded: 2029 mm

Width including mirrors: 2392 mm

Front track: 1701 mm

Rear (Back) track: 1708 mm

Front overhang: 980 mm

Rear overhang: 1226 mm

Ride height (ground clearance): 236 mm

Minimum turning circle (turning diameter): 11.9 m

Approach angle: 22.7°

Departure angle: 21.7°

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.

Drive wheel: All wheel drive (4x4)

Number of gears and type of gearbox: 4 gears, automatic transmission

Front brakes: Ventilated discs, 330 mm

Rear brakes: Ventilated discs, 343 mm

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Hydraulic Steering

Tires size: 265/70 R17

Wheel rims size: 17

Front suspension: Double wishbone, Transverse stabilizer, Air Suspension - Optional

Rear suspension: Double wishbone, Transverse stabilizer, Air Suspension - Optional
