Everything you need to know about specifications and performance - Volkswagen Golf 2017 - 1.8 TSI (168 Hp) 4MOTION DSG

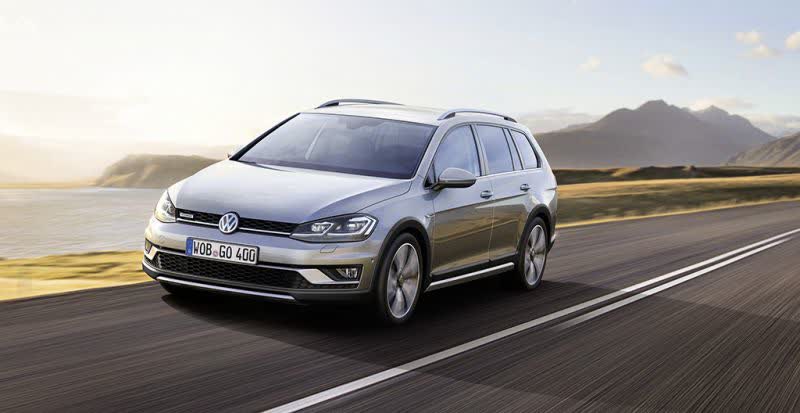

Full specifications and technical details 2017 Volkswagen Golf VII Alltrack (facelift 2017) 1.8 TSI (168 Hp) 4MOTION DSG

Overview:

What is the engine capacity of a Volkswagen Golf 2017?
The engine capacity of the Volkswagen Golf 2017 is 1803.

Volkswagen Golf 2017 How many horsepower?
The engine power of the Volkswagen Golf 2017 is 168 Hp @ 4500 rpm..

What is the Volkswagen Golf 2017 engine?
Volkswagen Golf 2017 engine is CXBB. (Click to see other cars using the same engine)

How much gasoline does a Volkswagen Golf 2017 consume?
The Volkswagen Golf 2017 consumes 9.4 liters of gasoline per 100 km

General:

Brand: Volkswagen

Model: Golf

Generation: VII Alltrack (facelift 2017)

Modification (Engine): 1.8 TSI (168 Hp) 4MOTION DSG

Start of production: 2017

End of production: 2018

Powertrain Architecture: Internal Combustion Engine

Body type: Station wagon (estate), Crossover

Seats: 5

Doors: 5

Engine:

Engine systems: Start & Stop System

Power: 168 hp @ 4500 rpm.

Power per litre: 93.2 hp/l

Torque: 270 nm @ 1600 rpm.

Engine Model/Code:CXBB

Engine displacement: 1803

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 4

Fuel injection system: Direct injection

Engine aspiration: Turbocharger, Intercooler

Engine oil capacity: 5.2 l

Coolant: 8 l

Engine layout: Front, Transverse

Cylinder Bore: 82.6 mm

Piston Stroke: 84.1 mm

Compression ratio: 9.6:1

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - urban: 10.7 l/100 km

Fuel consumption (economy) - extra urban: 8 l/100 km

Fuel consumption (economy) - combined: 9.4 l/100 km

Weight-to-power ratio: 9.2 kg/Hp, 108.2 Hp/tonne

Weight-to-torque ratio: 5.7 kg/Nm, 174 Nm/tonne

Space:

Kerb Weight (kg): 1552

Max. weight (kg): 2060

Max load (kg): 508

Trunk (boot) space - maximum: 1883 l

Trunk (boot) space - minimum: 861 l

Fuel tank capacity: 55 l

dimensions:

Length: 4562 mm

Width: 1799 mm

Height: 1515 mm

wheelbase: 2630 mm

Front track: 1549 mm

Rear (Back) track: 1517 mm

Minimum turning circle (turning diameter): 10.9 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives permanently the four wheels of the vehicle.

Drive wheel: All wheel drive (4x4)

Number of gears and type of gearbox: 6 gears, automatic transmission DSG

Front brakes: Ventilated discs, 287x25 mm

Rear brakes: Disc, 272x10 mm

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Electric Steering

Tires size: 205/55 R17

Wheel rims size: 7J x 17

Front suspension: Independent type McPherson

Rear suspension: Independent multi-link suspension
