Everything you need to know about specifications and performance - Toyota RAV4 2021 - 2.0 (173 Hp) AWD CVT

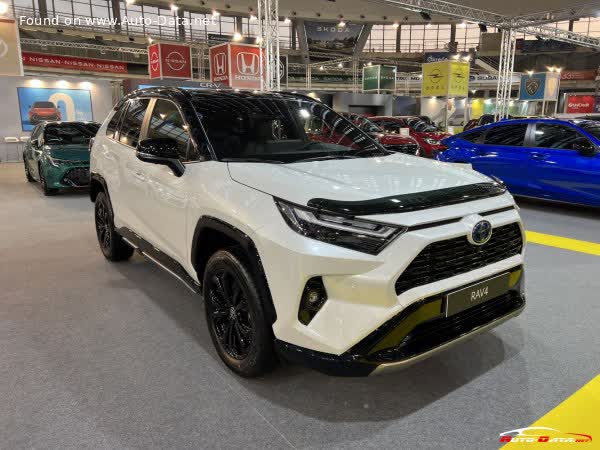

Full specifications and technical details 2021 Toyota RAV4 V (facelift 2021) 2.0 (173 Hp) AWD CVT

Overview:

What is the engine capacity of a Toyota RAV4 2021?
The engine capacity of the Toyota RAV4 2021 is 1986.

Toyota RAV4 2021 How many horsepower?
The engine power of the Toyota RAV4 2021 is 173 Hp @ 6600 rpm..

What is the Toyota RAV4 2021 engine?
Toyota RAV4 2021 engine is M20A-FKS. (Click to see other cars using the same engine)

How much gasoline does a Toyota RAV4 2021 consume?
The Toyota RAV4 2021 consumes 6.7 liters of gasoline per 100 km

What is the recommended oil for a Toyota RAV4 2021 engine?
The recommended oil for a Toyota RAV4 2021 car engine is 0W-20.

What type of camshaft transmission system is used in a Toyota RAV4 2021 engine?
chain is used to transmit motion.

General:

Brand: Toyota

Model: RAV4

Generation: V (facelift 2021)

Modification (Engine): 2.0 (173 Hp) AWD CVT

Start of production: September, 2021

End of production:

Powertrain Architecture: Internal Combustion Engine

Body type:Sports Utility Vehicle (SUV)

Seats: 5

Doors: 5

Engine:

Power: 173 hp @ 6600 rpm.

Power per litre: 87.1 hp/l

Torque: 203 nm @ 4400-4900 rpm.

Engine Model/Code:M20A-FKS

Engine displacement: 1986

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 4

Fuel injection system: Direct injection and Multi-port manifold injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: DOHC

Engine oil capacity: 4.3 l

Engine layout: Front, Transverse

Cylinder Bore: 80.5 mm

Piston Stroke: 97.6 mm

recommended engine oil: 0W-20

euro standards: EURO 6

engine lifespan (km): ~250 000

weight (kg): 98.1

timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - combined: 6.7 l/100 km

Maximum speed: 190 km/h

Weight-to-power ratio: 9.5 kg/Hp, 105.8 Hp/tonne

Weight-to-torque ratio: 8.1 kg/Nm, 124.2 Nm/tonne

Space:

Kerb Weight (kg): 1635-1680

Max. weight (kg): 2175

Max load (kg): 495-540

Trunk (boot) space - minimum: 733 l

Permitted trailer load with brakes (12%): 1000 kg

Fuel tank capacity: 55 l

Permitted trailer load without brakes: 750 kg

dimensions:

Length: 4615 mm

Width: 1865 mm

Height: 1685 mm

wheelbase: 2690 mm

Front track: 1610 mm

Rear (Back) track: 1640 mm

Front overhang: 925 mm

Rear overhang: 1000 mm

Ride height (ground clearance): 195 mm

Minimum turning circle (turning diameter): 11 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.

Drive wheel: All wheel drive (4x4)

Number of gears and type of gearbox: automatic transmission CVT

Front brakes: Ventilated discs

Rear brakes: Disc

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Electric Steering

Tires size: 225/60 R18

Wheel rims size: 7J x 18

Front suspension: Independent, type McPherson with coil Spring and anti-roll bar

Rear suspension: Double wishbone
