Everything you need to know about specifications and performance - Opel Signum 2005 - 2.2i 16V ECOTEC (155 Hp)

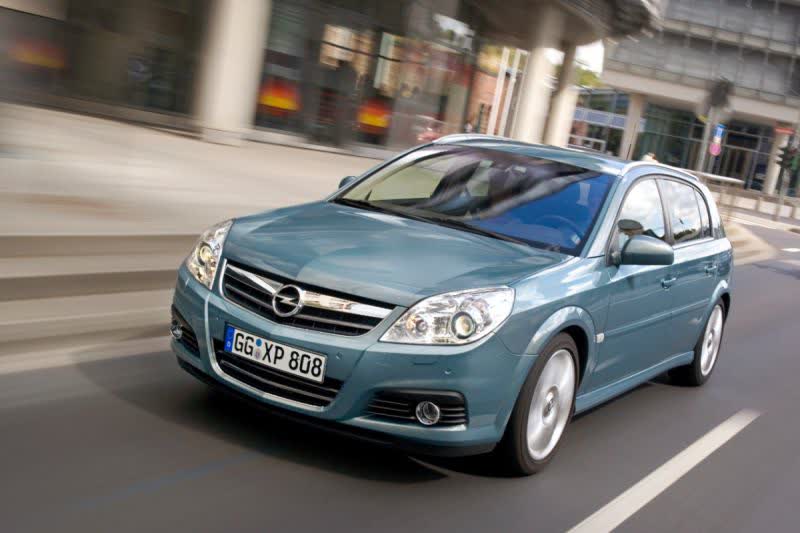

Full specifications and technical details 2005 Opel Signum (facelift 2005) 2.2i 16V ECOTEC (155 Hp)

Overview:

What is the engine capacity of a Opel Signum 2005?
The engine capacity of the Opel Signum 2005 is 2198.

Opel Signum 2005 How many horsepower?
The engine power of the Opel Signum 2005 is 155 Hp @ 5600 rpm..

What is the Opel Signum 2005 engine?
Opel Signum 2005 engine is Z22YH. (Click to see other cars using the same engine)

How much gasoline does a Opel Signum 2005 consume?
The Opel Signum 2005 consumes 8.1 liters of gasoline per 100 km

What is the recommended oil for a Opel Signum 2005 engine?
The recommended oil for a Opel Signum 2005 car engine is 5.0 liters 5W-30, 5W-40.

What type of camshaft transmission system is used in a Opel Signum 2005 engine?
two chains is used to transmit motion.

General:

Brand: Opel
Model: Signum
Generation: facelift 2005
Modification (Engine): 2.2i 16V ECOTEC (155 Hp)
Start of production: 2005
End of production: June, 2008
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 5

Engine:

Power: 155 hp @ 5600 rpm.
Power per litre: 70.5 hp/l
Torque: 220 nm @ 3800 rpm.
Engine Model/Code:Z22YH
Engine displacement: 2198
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Direct injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 5 l
Coolant: 7.1 l
Engine layout: Front, Transverse
Cylinder Bore: 86 mm
Piston Stroke: 94.6 mm
Compression ratio: 12:1
recommended engine oil: 5.0 liters 5W-30, 5W-40
euro standards: Euro 4
engine lifespan (km): 250 000
weight (kg): 140
timing drive: two chains

Show more details about this engine

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - urban: 10.6 l/100 km
Fuel consumption (economy) - extra urban: 6.6 l/100 km
Fuel consumption (economy) - combined: 8.1 l/100 km
Acceleration 0 - 100 km/h: 9.8 sec
Acceleration 0 - 62 mph: 9.8 sec
Maximum speed: 211 km/h
Weight-to-power ratio: 9.9 kg/Hp, 101 Hp/tonne
Weight-to-torque ratio: 7 kg/Nm, 143.3 Nm/tonne
Acceleration 0 - 60 mph: 9.3 sec

Space:

Kerb Weight (kg): 1535
Max. weight (kg): 2050
Max load (kg): 515
Trunk (boot) space - maximum: 1410 l
Trunk (boot) space - minimum: 365 l
Fuel tank capacity: 60 l

dimensions:

Length: 4651 mm
Width: 1798 mm
Height: 1460 mm
wheelbase: 2830 mm
Front track: 1535 mm
Rear (Back) track: 1525 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 215/55 R16
Wheel rims size: 6.5J x 16
Front suspension: Coil Spring
Rear suspension: Coil Spring
