Everything you need to know about specifications and performance - Isuzu D-Max 2018 - 3.0d (177 Hp) 4x4 Automatic

gray symbol cars image

Overview:

What is the engine capacity of a Isuzu D-Max 2018?
The engine capacity of the Isuzu D-Max 2018 is 2999.

Isuzu D-Max 2018 How many horsepower?
The engine power of the Isuzu D-Max 2018 is 177 Hp.

What is the Isuzu D-Max 2018 engine?
Isuzu D-Max 2018 engine is 4JJ1. (Click to see other cars using the same engine)

What is the recommended oil for a Isuzu D-Max 2018 engine?
The recommended oil for a Isuzu D-Max 2018 car engine is 5W-30.

What type of camshaft transmission system is used in a Isuzu D-Max 2018 engine?
chain and gears is used to transmit motion.

General:

Brand: Isuzu
Model: D-Max
Generation: Concept X
Modification (Engine): 3.0d (177 Hp) 4x4 Automatic
Start of production: 2018
End of production: 2020
Powertrain Architecture: Internal Combustion Engine
Body type: Off-road vehicle, Pickup
Seats: 5
Doors: 4

Engine:

Engine systems: Particulate filter
Power: 177 hp
Power per litre: 59 hp/l
Torque: 430 nm
Engine Model/Code:4JJ1
Engine displacement: 2999
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Diesel Commonrail
Engine aspiration: Turbocharger, Intercooler
Valvetrain: DOHC
recommended engine oil: 5W-30
euro standards: EURO 2/3 (4JJ1-TC)
EURO 3/4 (4JJ1-TCX)
EURO 5 (4JJ1-TC HI)
engine lifespan (km): ~500 000
weight (kg): 322
timing drive: chain and gears

Show more details about this engine

Performance:

Fuel Type: Diesel
Emission standard: Euro 5

dimensions:

Length: 5500 mm
Width: 2150 mm
Height: 2100 mm
Ride height (ground clearance): 370 mm
Approach angle: 49.7°
Departure angle: 38.5°

Powertrain, Suspension and Brakes:

Drive wheel: All wheel drive (4x4)
Number of gears and type of gearbox: 6 gears, automatic transmission Aisin
Front brakes: Ventilated discs
Rear brakes: Ventilated discs
Assisting systems: ABS (Anti-lock braking system)
Tires size: 38/15.5 R20
Wheel rims size: 12J x 20
Front suspension: Independent coil Spring
Rear suspension: Independent multi-link suspension

See also

2020 Isuzu D-Max III Space Cab 3.0d (190 Hp) Automatic thumb image

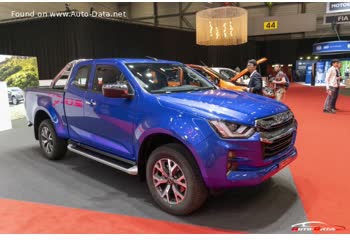

2020 Isuzu D-Max III Space Cab 3.0d (190 Hp) Automatic
