Everything you need to know about specifications and performance - Hyundai i20 2016 - 1.4 (100 Hp)

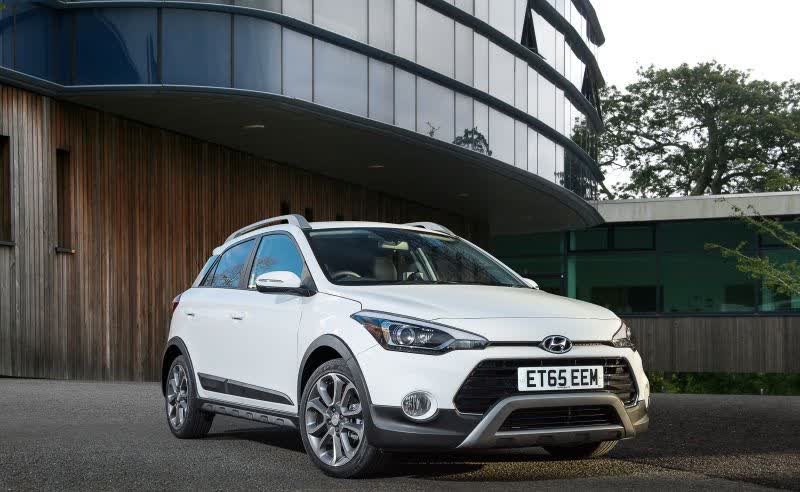

Full specifications and technical details 2016 Hyundai i20 II Active 1.4 (100 Hp)

Overview:

What is the engine capacity of a Hyundai i20 2016?
The engine capacity of the Hyundai i20 2016 is 1368.

Hyundai i20 2016 How many horsepower?
The engine power of the Hyundai i20 2016 is 100 Hp @ 6000 rpm..

What is the Hyundai i20 2016 engine?
Hyundai i20 2016 engine is Kappa / G4LC. (Click to see other cars using the same engine)

How much gasoline does a Hyundai i20 2016 consume?
The Hyundai i20 2016 consumes 5.6 - 5.8 liters of gasoline per 100 km

General:

Brand: Hyundai
Model: i20
Generation: II Active
Modification (Engine): 1.4 (100 Hp)
Start of production: 2016
End of production: 2018
Powertrain Architecture: Internal Combustion Engine
Body type: Crossover
Seats: 5
Doors: 5

Engine:

Power: 100 hp @ 6000 rpm.
Power per litre: 73.1 hp/l
Torque: 134 nm @ 3500 rpm.
Engine Model/Code:Kappa / G4LC
Engine displacement: 1368
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Multi-port manifold injection
Engine aspiration: Naturally aspirated Engine
Valvetrain: DOHC
Engine oil capacity: 3.5 l
Coolant: 4.3 l
Engine layout: Front, Transverse
Cylinder Bore: 72 mm
Piston Stroke: 84 mm
Compression ratio: 10.5:1

Performance:

Fuel Type: Petrol (Gasoline)
Fuel consumption (economy) - combined: 5.6 - 5.8 l/100 km
Emission standard: Euro 6
Acceleration 0 - 100 km/h: 11.9 sec
Acceleration 0 - 62 mph: 11.9 sec
Maximum speed: 178 km/h
Weight-to-power ratio: 10.5 kg/Hp, 95.2 Hp/tonne
Weight-to-torque ratio: 7.8 kg/Nm, 127.6 Nm/tonne
Acceleration 0 - 60 mph: 11.3 sec

Space:

Kerb Weight (kg): 1050
Max. weight (kg): 1620
Max. roof load: 70 kg
Max load (kg): 570
Trunk (boot) space - maximum: 1042 l
Trunk (boot) space - minimum: 326 l
Fuel tank capacity: 50 l

dimensions:

Length: 4065 mm
Width: 1760 mm
Height: 1529 mm
wheelbase: 2570 mm
Front track: 1511-1517 mm
Rear (Back) track: 1513-1519 mm
Front overhang: 843 mm
Rear overhang: 652 mm
Ride height (ground clearance): 160 mm
Minimum turning circle (turning diameter): 10.2 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 6 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: 185/65 R15; 195/55 R16; 205/45 R17
Wheel rims size: 6.0J x 15; 6.0J x 16; 6.5J x 17
Front suspension: Independent type McPherson
Rear suspension: Semi-independent, coil Spring
