Everything you need to know about specifications and performance - Volkswagen Sharan 2002 - 1.9 TDI (130 Hp)

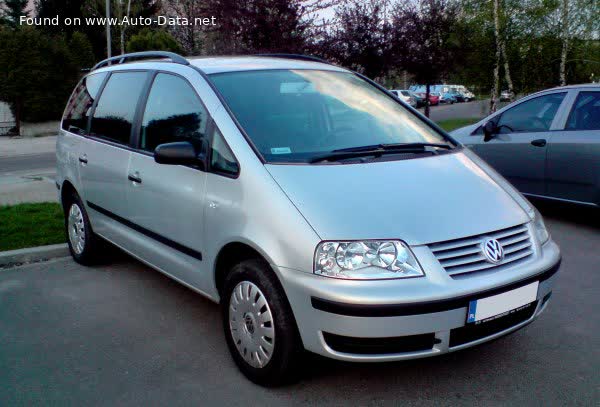

Full specifications and technical details 2002 Volkswagen Sharan I (facelift 2000) 1.9 TDI (130 Hp)

Overview:

What is the engine capacity of a Volkswagen Sharan 2002?
The engine capacity of the Volkswagen Sharan 2002 is 1896.

Volkswagen Sharan 2002 How many horsepower?
The engine power of the Volkswagen Sharan 2002 is 130 Hp @ 4000 rpm..

What is the Volkswagen Sharan 2002 engine?
Volkswagen Sharan 2002 engine is ASZ. (Click to see other cars using the same engine)

How much gasoline does a Volkswagen Sharan 2002 consume?
The Volkswagen Sharan 2002 consumes 6.5 liters of gasoline per 100 km

General:

Brand: Volkswagen
Model: Sharan
Generation: I (facelift 2000)
Modification (Engine): 1.9 TDI (130 Hp)
Start of production: 2002
End of production: 2004
Powertrain Architecture: Internal Combustion Engine
Body type: Minivan, Multi Purpose Vehicle (MPV)
Seats: 7
Doors: 5

Engine:

Power: 130 hp @ 4000 rpm.
Power per litre: 68.6 hp/l
Torque: 310 nm @ 1900 rpm.
Engine Model/Code:ASZ
Engine displacement: 1896
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 2
Fuel injection system: Pump-nozzle (Unit Injector)
Engine aspiration: Turbocharger, Intercooler
Valvetrain: SOHC
Engine oil capacity: 4.3 l
Coolant: 6.8 l
Engine layout: Front, Transverse
Cylinder Bore: 79.5 mm
Piston Stroke: 95.5 mm
Compression ratio: 19:1

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 8.3 l/100 km
Fuel consumption (economy) - extra urban: 5.5 l/100 km
Fuel consumption (economy) - combined (NEDC): 6.5 l/100 km
Fuel consumption (economy) - urban (NEDC): 8.3 l/100 km
Fuel consumption (economy) - extra urban (NEDC): 5.5 l/100 km
Fuel consumption (economy) - combined: 6.5 l/100 km
Emission standard: Euro 3
Acceleration 0 - 100 km/h: 12.8 sec
Acceleration 0 - 62 mph: 12.8 sec
Maximum speed: 188 km/h
Weight-to-power ratio: 14.8 kg/Hp, 67.4 Hp/tonne
Weight-to-torque ratio: 6.2 kg/Nm, 160.8 Nm/tonne
Acceleration 0 - 60 mph: 12.2 sec

Space:

Kerb Weight (kg): 1928
Max. weight (kg): 2470
Max. roof load: 75 kg
Max load (kg): 542
Trunk (boot) space - maximum: 2610 l
Trunk (boot) space - minimum: 256 l
Permitted trailer load with brakes (12%): 2000 kg
Fuel tank capacity: 70 l
Permitted trailer load without brakes: 700 kg
Permitted towbar download: 85 kg

dimensions:

Length: 4634 mm
Width: 1810 mm
Height: 1759 mm
wheelbase: 2841 mm
Front track: 1530 mm
Rear (Back) track: 1524 mm
Minimum turning circle (turning diameter): 11.9 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 6 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 195/60 R16
Wheel rims size: 6J x 16
Front suspension: Independent type McPherson, Transverse stabilizer
Rear suspension: Transverse stabilizer, Trailing arm, Coil Spring
