Everything you need to know about specifications and performance - Volkswagen Caravelle 2009 - 2.0 (116 Hp)

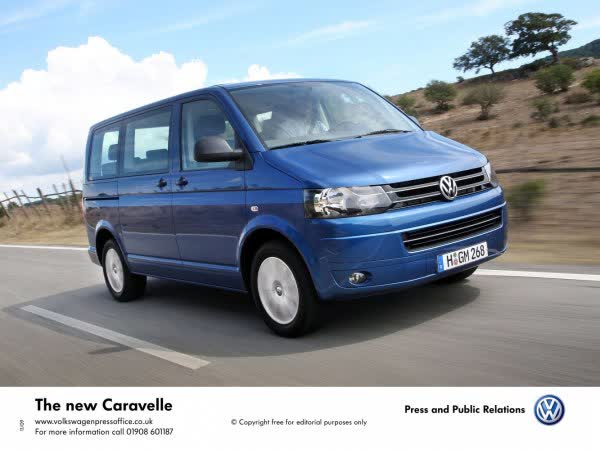

Full specifications and technical details 2009 Volkswagen Caravelle (T5, facelift 2009) 2.0 (116 Hp)

Overview:

What is the engine capacity of a Volkswagen Caravelle 2009?
The engine capacity of the Volkswagen Caravelle 2009 is 1984.

Volkswagen Caravelle 2009 How many horsepower?
The engine power of the Volkswagen Caravelle 2009 is 116 Hp @ 5200 rpm..

What is the Volkswagen Caravelle 2009 engine?
Volkswagen Caravelle 2009 engine is EA113 / AXA. (Click to see other cars using the same engine)

How much gasoline does a Volkswagen Caravelle 2009 consume?
The Volkswagen Caravelle 2009 consumes 10.4 liters of gasoline per 100 km

General:

Brand: Volkswagen

Model: Caravelle

Generation: T5, facelift 2009

Modification (Engine): 2.0 (116 Hp)

Start of production: 2009

End of production: 2013

Powertrain Architecture: Internal Combustion Engine

Body type: Van

Seats: 4-9

Doors: 4-5

Engine:

Power: 116 hp @ 5200 rpm.

Power per litre: 58.5 hp/l

Torque: 170 nm @ 2700-4700 rpm.

Engine Model/Code:EA113 / AXA

Engine displacement: 1984

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 2

Fuel injection system: Multi-port manifold injection

Engine aspiration: Naturally aspirated Engine

Valvetrain: SOHC

Engine oil capacity: 5 l

Coolant: 7.1 l

Engine layout: Front, Transverse

Cylinder Bore: 82.5 mm

Piston Stroke: 92.8 mm

Compression ratio: 10.5:1

Performance:

Fuel Type: Petrol (Gasoline)

Fuel consumption (economy) - urban: 13.6 l/100 km

Fuel consumption (economy) - extra urban: 8.6 l/100 km

Fuel consumption (economy) - combined (NEDC): 10.4 l/100 km

Fuel consumption (economy) - urban (NEDC): 13.6 l/100 km

Fuel consumption (economy) - extra urban (NEDC): 8.6 l/100 km

Fuel consumption (economy) - combined: 10.4 l/100 km

Emission standard: Euro 5

Acceleration 0 - 100 km/h: 17.3 sec

Acceleration 0 - 62 mph: 17.3 sec

Maximum speed: 163 km/h

Weight-to-power ratio: 16.4 kg/Hp, 61 Hp/tonne

Weight-to-torque ratio: 11.2 kg/Nm, 89.4 Nm/tonne

Acceleration 0 - 60 mph: 16.4 sec

Space:

Kerb Weight (kg): 1901-2075

Max. weight (kg): 2850

Max. roof load: 100 kg

Max load (kg): 775-949

Trunk (boot) space - maximum: 5800 l

Permitted trailer load with brakes (12%): 2000 kg

Fuel tank capacity: 80 l

Permitted trailer load without brakes: 750 kg

Permitted towbar download: 100 kg

dimensions:

Ramp-over (brakeover) angle: 14°

Wading depth: 300 mm

Length: 4892 mm

Width: 1904 mm

Height: 1970-1990 mm

wheelbase: 3000 mm

Width including mirrors: 2283 mm

Front overhang: 896 mm

Rear overhang: 996 mm

Ride height (ground clearance): 165 mm

Minimum turning circle (turning diameter): 11.9 m

Approach angle: 21°

Departure angle: 17°

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: 5 gears, manual transmission

Front brakes: Ventilated discs, 308x29.5 mm

Rear brakes: Ventilated discs, 294x22 mm

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Hydraulic Steering

Tires size: 215/65 R16

Wheel rims size: 6.5J x 16

Front suspension: Independent, type McPherson with coil Spring and anti-roll bar

Rear suspension: Independent coil spring, Transverse stabilizer, Trailing arm
