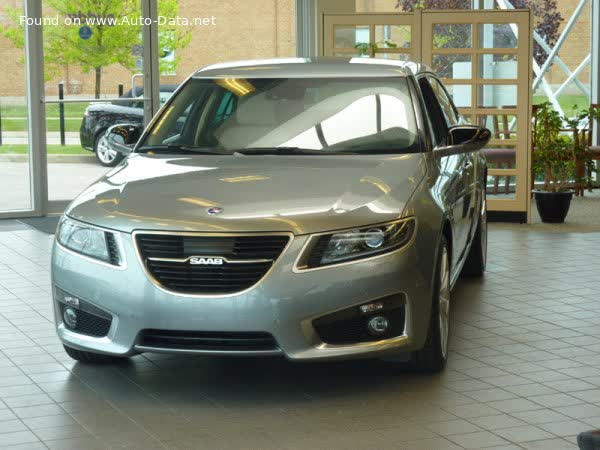

Everything you need to know about specifications and performance - Saab 9-5 2009 - 2.0i (220 Hp)
Overview:
What is the engine capacity of a Saab 9-5 2009?
The engine capacity of the Saab 9-5 2009 is 1998.
Saab 9-5 2009 How many horsepower?
The engine power of the Saab 9-5 2009 is 220 Hp @ 5300 rpm..
What is the Saab 9-5 2009 engine?
Saab 9-5 2009 engine is A20NHT. (Click to see other cars using the same engine)
What is the recommended oil for a Saab 9-5 2009 engine?
The recommended oil for a Saab 9-5 2009 car engine is 5W-30.
What type of camshaft transmission system is used in a Saab 9-5 2009 engine?
chain is used to transmit motion.
General:
Brand: Saab
Model: 9-5
Generation: II
Modification (Engine): 2.0i (220 Hp)
Start of production: October, 2009
End of production: March, 2011
Powertrain Architecture: Internal Combustion Engine
Body type:Sedan
Seats: 5
Doors: 4
Engine:
Power: 220 hp @ 5300 rpm.
Power per litre: 110.1 hp/l
Torque: 350 nm @ 2500 rpm.
Engine Model/Code:A20NHT
Engine displacement: 1998
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Direct injection
Engine aspiration: Twin-scroll turbo, Intercooler
Engine oil capacity: 5.7 l
Engine layout: Front, Transverse
Cylinder Bore: 86 mm
Piston Stroke: 86 mm
Compression ratio: 9.5:1
recommended engine oil: 5W-30
euro standards: EURO 5
engine lifespan (km): ~220 000
weight (kg): 130
timing drive: chain
Performance:
Fuel Type: Petrol (Gasoline)
Weight-to-power ratio: 8.6 kg/Hp, 116.7 Hp/tonne
Weight-to-torque ratio: 5.4 kg/Nm, 185.7 Nm/tonne
Space:
Kerb Weight (kg): 1885-1975
Max. weight (kg): 2430
Max load (kg): 455-545
Trunk (boot) space - minimum: 513 l
Permitted trailer load with brakes (12%): 2000 kg
Fuel tank capacity: 68 l
dimensions:
Powertrain, Suspension and Brakes:
Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 6 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: 225/55 R17 97H
Wheel rims size: 17
Front suspension: Independent type McPherson
Rear suspension: Independent multi-link suspension
