Everything you need to know about specifications and performance - Renault Scenic 2016 - 1.5 Energy dCi (110 Hp)

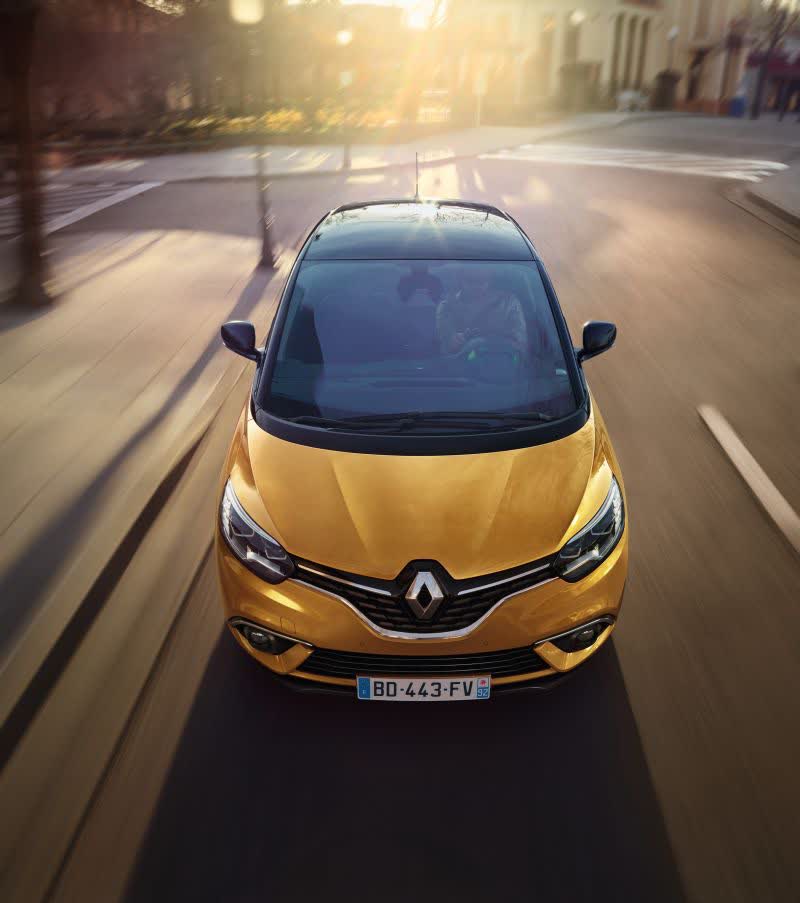

Full specifications and technical details 2016 Renault Scenic IV (Phase I) 1.5 Energy dCi (110 Hp)

Overview:

What is the engine capacity of a Renault Scenic 2016?
The engine capacity of the Renault Scenic 2016 is 1461.

Renault Scenic 2016 How many horsepower?
The engine power of the Renault Scenic 2016 is 110 Hp @ 4000 rpm..

What is the Renault Scenic 2016 engine?
Renault Scenic 2016 engine is K9K. (Click to see other cars using the same engine)

How much gasoline does a Renault Scenic 2016 consume?
The Renault Scenic 2016 consumes 3.9 liters of gasoline per 100 km

What is the recommended oil for a Renault Scenic 2016 engine?
The recommended oil for a Renault Scenic 2016 car engine is 5W-30, 5W-40.

What type of camshaft transmission system is used in a Renault Scenic 2016 engine?
belt is used to transmit motion.

General:

Brand: Renault

Model: Scenic

Generation: IV (Phase I)

Modification (Engine): 1.5 Energy dCi (110 Hp)

Start of production: 2016

End of production: 2018

Powertrain Architecture: Internal Combustion Engine

Body type:Mini van

Seats: 5

Doors: 5

Engine:

Engine systems: Particulate filter

Power: 110 hp @ 4000 rpm.

Power per litre: 75.3 hp/l

Torque: 260 nm @ 1750 rpm.

Engine Model/Code:K9K

Engine displacement: 1461

Number of cylinders: 4

Engine configuration: Inline

Number of valves per cylinder: 2

Fuel injection system: Diesel Commonrail

Engine aspiration: Turbocharger, Intercooler

Engine oil capacity: 4.8 l

Coolant: 6 l

Engine layout: Front, Transverse

Cylinder Bore: 76 mm

Piston Stroke: 80.5 mm

recommended engine oil: 5W-30, 5W-40

euro standards: Euro 3 (1 gen. 2001 – 2005)
Euro 4 (2 gen. 2005 – 2010)
Euro 5 (3 gen. 2008 – 2016)
Euro 6 (4 gen. since 2012)

engine lifespan (km): ~400 000

weight (kg): 145

timing drive: belt

Show more details about this engine

Performance:

Fuel Type: Diesel

Fuel consumption (economy) - urban: 4.2 l/100 km

Fuel consumption (economy) - extra urban: 3.7 l/100 km

Fuel consumption (economy) - combined: 3.9 l/100 km

Emission standard: Euro 6 b

Acceleration 0 - 100 km/h: 12.4 sec

Acceleration 0 - 62 mph: 12.4 sec

Maximum speed: 183 km/h

Weight-to-power ratio: 13 kg/Hp, 76.9 Hp/tonne

Weight-to-torque ratio: 5.5 kg/Nm, 181.8 Nm/tonne

Acceleration 0 - 60 mph: 11.8 sec

Space:

Kerb Weight (kg): 1430

Max. weight (kg): 2046

Max load (kg): 616

Trunk (boot) space - minimum: 572 l

Permitted trailer load with brakes (12%): 1850 kg

Fuel tank capacity: 52 l

Permitted trailer load without brakes: 750 kg

dimensions:

Length: 4406 mm

Width: 1866 mm

Height: 1653 mm

wheelbase: 2734 mm

Width including mirrors: 2128 mm

Front track: 1602 mm

Rear (Back) track: 1596 mm

Front overhang: 931 mm

Rear overhang: 741 mm

Ride height (ground clearance): 170 mm

Minimum turning circle (turning diameter): 11.18 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.

Drive wheel: Front wheel drive

Number of gears and type of gearbox: 6 gears, manual transmission

Front brakes: Ventilated discs

Rear brakes: Disc

Assisting systems: ABS (Anti-lock braking system)

Steering type: Steering rack and pinion

Power steering: Electric Steering

Tires size: 195/55 R20 95H

Wheel rims size: 20

Front suspension: Independent type McPherson

Rear suspension: Semi-independent, coil Spring
