Everything you need to know about specifications and performance - Ford Fiesta 2005 - 1.6 Duratorq TDCi (90 Hp)

gray symbol cars image

Overview:

What is the engine capacity of a Ford Fiesta 2005?
The engine capacity of the Ford Fiesta 2005 is 1560.

Ford Fiesta 2005 How many horsepower?
The engine power of the Ford Fiesta 2005 is 90 Hp @ 4000 rpm..

What is the Ford Fiesta 2005 engine?
Ford Fiesta 2005 engine is HHJA, HHJB. (Click to see other cars using the same engine)

How much gasoline does a Ford Fiesta 2005 consume?
The Ford Fiesta 2005 consumes 4.4 liters of gasoline per 100 km

General:

Brand: Ford
Model: Fiesta
Generation: VI (Mk6, facelift 2005) 3 door
Modification (Engine): 1.6 Duratorq TDCi (90 Hp)
Start of production: 2005
End of production: 2008
Powertrain Architecture: Internal Combustion Engine
Body type:Hatchback
Seats: 5
Doors: 3

Engine:

Power: 90 hp @ 4000 rpm.
Power per litre: 57.7 hp/l
Torque: 204 nm @ 1750 rpm.
Engine Model/Code:HHJA, HHJB
Engine displacement: 1560
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Diesel Commonrail
Engine aspiration: Turbocharger, Intercooler
Valvetrain: DOHC
Engine oil capacity: 3.85 l
Coolant: 6 l
Engine layout: Front, Transverse
Cylinder Bore: 75 mm
Piston Stroke: 88.3 mm
Compression ratio: 18.3:1

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 5.2 l/100 km
Fuel consumption (economy) - extra urban: 3.9 l/100 km
Fuel consumption (economy) - combined: 4.4 l/100 km
Emission standard: EURO 4
Acceleration 0 - 100 km/h: 11.9 sec
Acceleration 0 - 62 mph: 11.9 sec
Maximum speed: 180 km/h
Weight-to-power ratio: 12.8 kg/Hp, 77.9 Hp/tonne
Weight-to-torque ratio: 5.7 kg/Nm, 176.6 Nm/tonne
Acceleration 0 - 60 mph: 11.3 sec

Space:

Kerb Weight (kg): 1155-1178
Max. weight (kg): 1605-1610
Max load (kg): 432-450
Trunk (boot) space - maximum: 947 l
Trunk (boot) space - minimum: 284 l
Permitted trailer load with brakes (12%): 750 kg
Fuel tank capacity: 45 l

dimensions:

Length: 3918 mm
Width: 1685 mm
Height: 1429 mm
wheelbase: 2486 mm
Width including mirrors: 1907-1912 mm
Front track: 1464-1477 mm
Rear (Back) track: 1434-1444 mm

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 5 gears, manual transmission
Front brakes: Ventilated discs
Rear brakes: Drum
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Hydraulic Steering
Tires size: 195/50 R14
Wheel rims size: 14
Front suspension: Independent type McPherson
Rear suspension: Torsion

See also

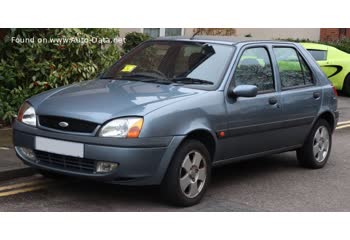

1999 Ford Fiesta V (Mk5) 5 door 1.3 i (50 Hp) thumb image
