Everything you need to know about specifications and performance - Chevrolet Equinox 2017 - 1.6d (139 Hp) Automatic

Full specifications and technical details 2017 Chevrolet Equinox III 1.6d (139 Hp) Automatic

Overview:

What is the engine capacity of a Chevrolet Equinox 2017?
The engine capacity of the Chevrolet Equinox 2017 is 1598.

Chevrolet Equinox 2017 How many horsepower?
The engine power of the Chevrolet Equinox 2017 is 139 Hp @ 3750 rpm..

What is the Chevrolet Equinox 2017 engine?
Chevrolet Equinox 2017 engine is LH7. (Click to see other cars using the same engine)

What is the recommended oil for a Chevrolet Equinox 2017 engine?
The recommended oil for a Chevrolet Equinox 2017 car engine is 5W-30.

What type of camshaft transmission system is used in a Chevrolet Equinox 2017 engine?
chain is used to transmit motion.

General:

Brand: Chevrolet
Model: Equinox
Generation: III
Modification (Engine): 1.6d (139 Hp) Automatic
Start of production: 2017
End of production: 2021
Powertrain Architecture: Internal Combustion Engine
Body type:Sports Utility Vehicle (SUV)
Seats: 5
Doors: 5

Engine:

Power: 139 hp @ 3750 rpm.
Power per litre: 87 hp/l
Torque: 325 nm @ 2000 rpm.
Engine Model/Code:LH7
Engine displacement: 1598
Number of cylinders: 4
Engine configuration: Inline
Number of valves per cylinder: 4
Fuel injection system: Diesel Commonrail
Engine aspiration: Turbocharger, Intercooler
Valvetrain: DOHC
Engine oil capacity: 5 l
Coolant: 7.5 l
Engine layout: Front, Longitudinal
Cylinder Bore: 79.7 mm
Piston Stroke: 80.1 mm
Compression ratio: 16:1
recommended engine oil: 5W-30
euro standards: EURO 6
engine lifespan (km): ~250 000
weight (kg): 160
timing drive: chain

Show more details about this engine

Performance:

Fuel Type: Diesel
Fuel consumption (economy) - urban: 7.3 l/100 km
Fuel consumption (economy) - extra urban: 5.9 l/100 km
Weight-to-power ratio: 11.5 kg/Hp, 87 Hp/tonne
Weight-to-torque ratio: 4.9 kg/Nm, 203.4 Nm/tonne

Space:

Kerb Weight (kg): 1598
Trunk (boot) space - maximum: 1798 l
Trunk (boot) space - minimum: 847 l
Fuel tank capacity: 56 l

dimensions:

Length: 4651 mm
Width: 1844 mm
Height: 1661 mm
wheelbase: 2725 mm
Front track: 1580 mm
Rear (Back) track: 1580 mm
Minimum turning circle (turning diameter): 11.4 m

Powertrain, Suspension and Brakes:

Drivetrain Architecture: The Internal combustion Engine (ICE) drives the front wheels of the vehicle.
Drive wheel: Front wheel drive
Number of gears and type of gearbox: 6 gears, automatic transmission Hydra-Matic
Front brakes: Ventilated discs
Rear brakes: Disc
Assisting systems: ABS (Anti-lock braking system)
Steering type: Steering rack and pinion
Power steering: Electric Steering
Tires size: 225/65 R17
Wheel rims size: 17
Front suspension: Independent, type McPherson with coil Spring and anti-roll bar
Rear suspension: Independent multi-link suspension

See also

2016 Chevrolet Equinox II (facelift 2016) 3.6 V6 (305 Hp) Automatic thumb image
2016 Chevrolet Equinox II (facelift 2016) 3.6 V6 (305 Hp) Automatic

Other generation.
Its production began in 2016 until 2017

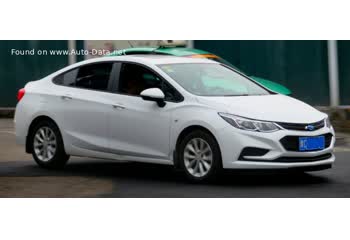

2018 Chevrolet Cruze Sedan II (facelift 2019) 1.6d (137 Hp) Automatic thumb image
